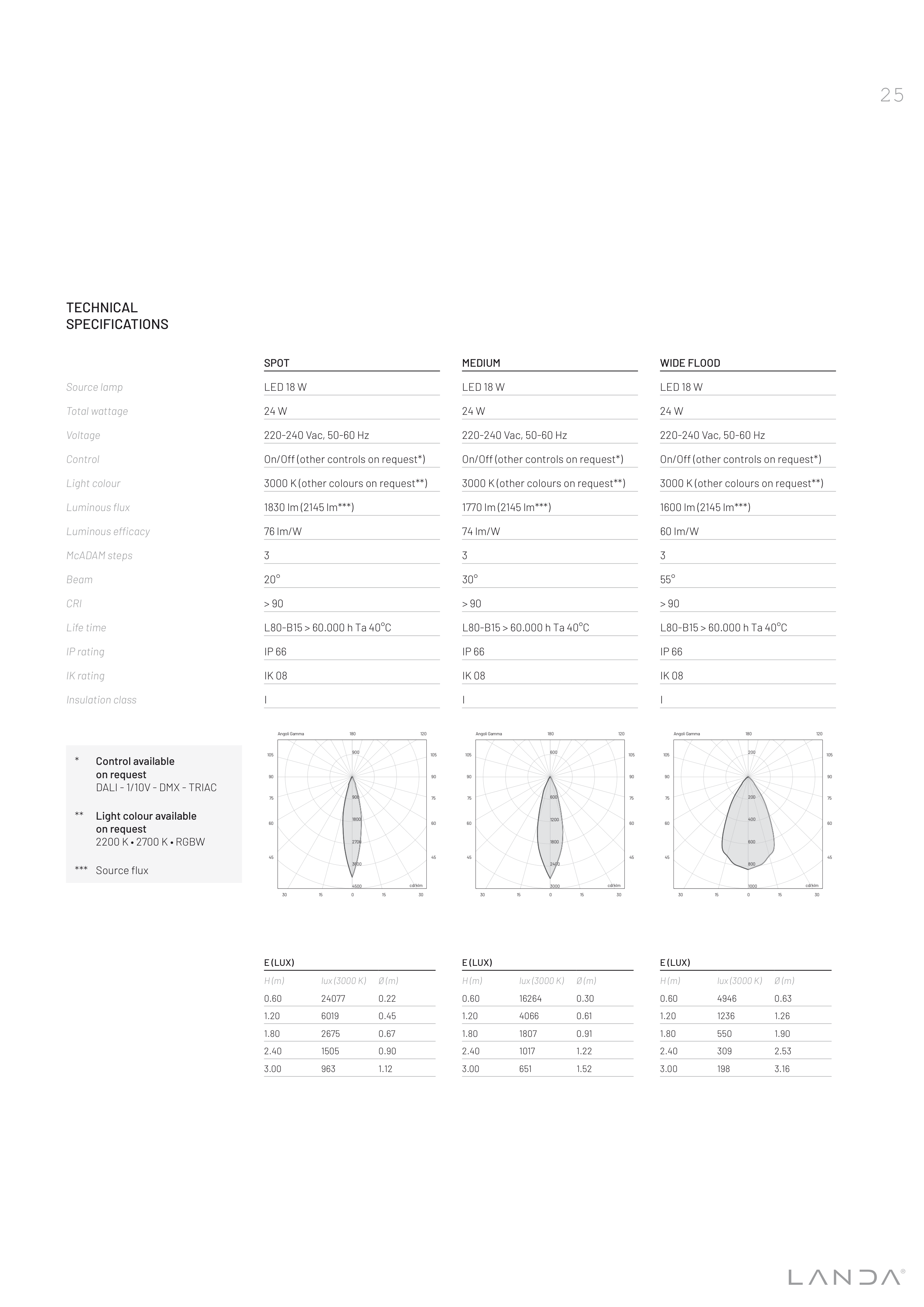

TECHNICAL
SPECIFICATIONS
SPOT
MEDIUM
WIDE FLOOD
Source lamp
LED 18 W
LED 18 W
LED 18 W
Total wattage
24 W
24 W
24 W
Voltage
220-240 Vac, 50-60 Hz
220-240 Vac, 50-60 Hz
220-240 Vac, 50-60 Hz
Control
On/Off (other controls on request*)
On/Off (other controls on request*)
On/Off (other controls on request*)
Light colour
3000 K (other colours on request**)
3000 K (other colours on request**)
3000 K (other colours on request**)
Luminous flux
1830 lm (2145 lm***)
1770 lm (2145 lm***)
1600 lm (2145 lm***)
Luminous efficacy
76 lm/W
74 lm/W
60 lm/W
McADAM steps
3
3
3
Beam
20°
30°
55°
CRI
> 90
> 90
> 90
Life time
L80-B15 > 60.000 h Ta 40°C
L80-B15 > 60.000 h Ta 40°C
L80-B15 > 60.000 h Ta 40°C
IP rating
IP 66
IP 66
IP 66
IK rating
IK 08
IK 08
IK 08
Insulation class
I
I
I
*
Control available
on request
DALI - 1/10V - DMX - TRIAC
**
Light colour available
on request
2200 K • 2700 K • RGBW
*** Source flux
900
900
1800
2700
3600
4500
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
600
600
1200
1800
2400
3000
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
200
200
400
600
800
1000
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
E (LUX)
H (m)
lux (3000 K)
Ø (m)
0.60
24077
0.22
1.20
6019
0.45
1.80
2675
0.67
2.40
1505
0.90
3.00
963
1.12
E (LUX)
H (m)
lux (3000 K)
Ø (m)
0.60
16264
0.30
1.20
4066
0.61
1.80
1807
0.91
2.40
1017
1.22
3.00
651
1.52
E (LUX)
H (m)
lux (3000 K)
Ø (m)
0.60
4946
0.63
1.20
1236
1.26
1.80
550
1.90
2.40
309
2.53
3.00
198
3.16
