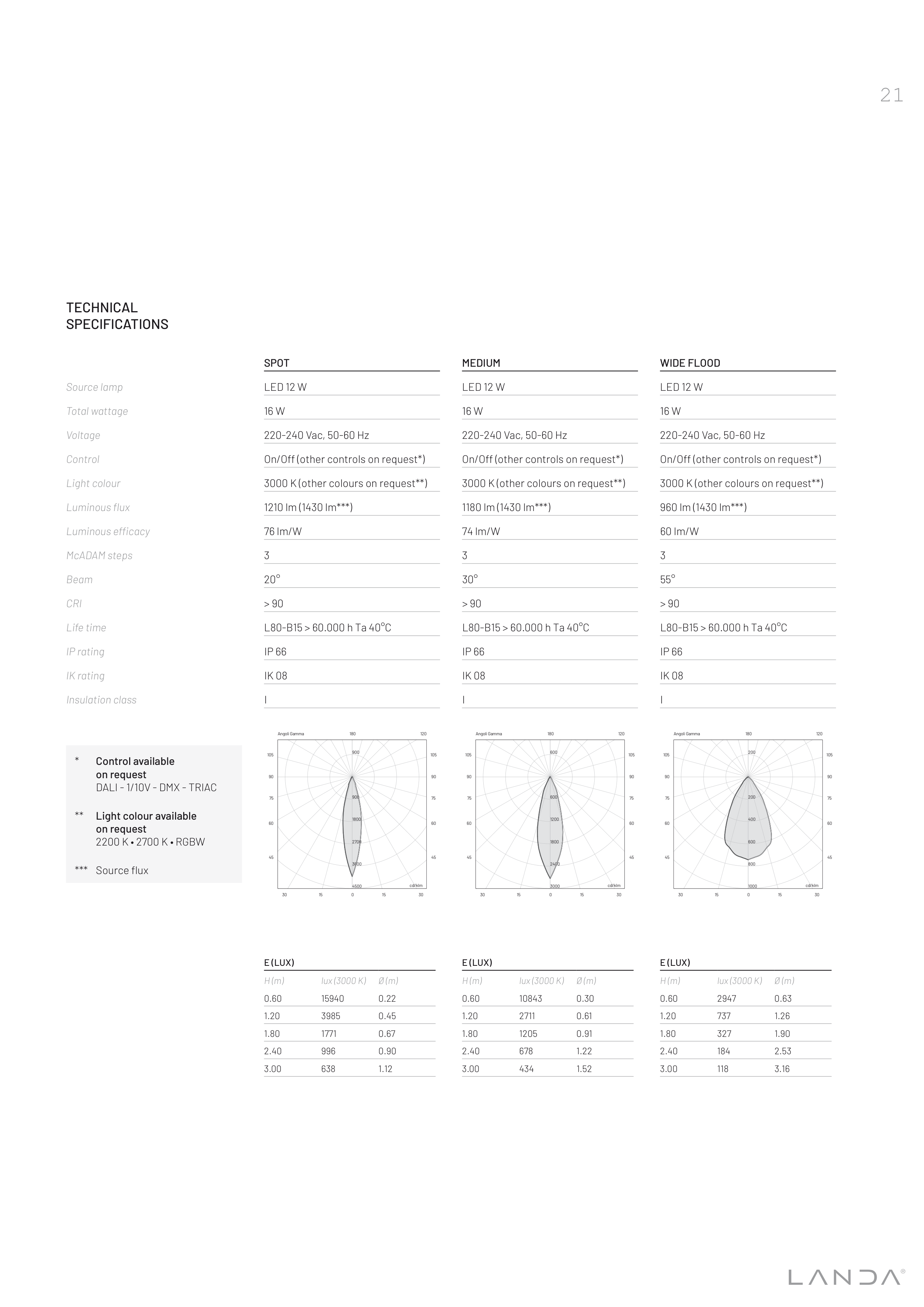

TECHNICAL
SPECIFICATIONS
SPOT
MEDIUM
WIDE FLOOD
Source lamp
LED 12 W
LED 12 W
LED 12 W
Total wattage
16 W
16 W
16 W
Voltage
220-240 Vac, 50-60 Hz
220-240 Vac, 50-60 Hz
220-240 Vac, 50-60 Hz
Control
On/Off (other controls on request*)
On/Off (other controls on request*)
On/Off (other controls on request*)
Light colour
3000 K (other colours on request**)
3000 K (other colours on request**)
3000 K (other colours on request**)
Luminous flux
1210 lm (1430 lm***)
1180 lm (1430 lm***)
960 lm (1430 lm***)
Luminous efficacy
76 lm/W
74 lm/W
60 lm/W
McADAM steps
3
3
3
Beam
20°
30°
55°
CRI
> 90
> 90
> 90
Life time
L80-B15 > 60.000 h Ta 40°C
L80-B15 > 60.000 h Ta 40°C
L80-B15 > 60.000 h Ta 40°C
IP rating
IP 66
IP 66
IP 66
IK rating
IK 08
IK 08
IK 08
Insulation class
I
I
I
*
Control available
on request
DALI - 1/10V - DMX - TRIAC
**
Light colour available
on request
2200 K • 2700 K • RGBW
*** Source flux
900
900
1800
2700
3600
4500
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
600
600
1200
1800
2400
3000
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
200
200
400
600
800
1000
0
15
15
30
30
45
45
60
60
75
75
90
90
105
105
120
180
cd/klm
Angoli Gamma
E (LUX)
H (m)
lux (3000 K)
Ø (m)
0.60
15940
0.22
1.20
3985
0.45
1.80
1771
0.67
2.40
996
0.90
3.00
638
1.12
E (LUX)
H (m)
lux (3000 K)
Ø (m)
0.60
10843
0.30
1.20
2711
0.61
1.80
1205
0.91
2.40
678
1.22
3.00
434
1.52
E (LUX)
H (m)
lux (3000 K)
Ø (m)
0.60
2947
0.63
1.20
737
1.26
1.80
327
1.90
2.40
184
2.53
3.00
118
3.16
