ROSS GARDAM
MÉNE COLLECTION

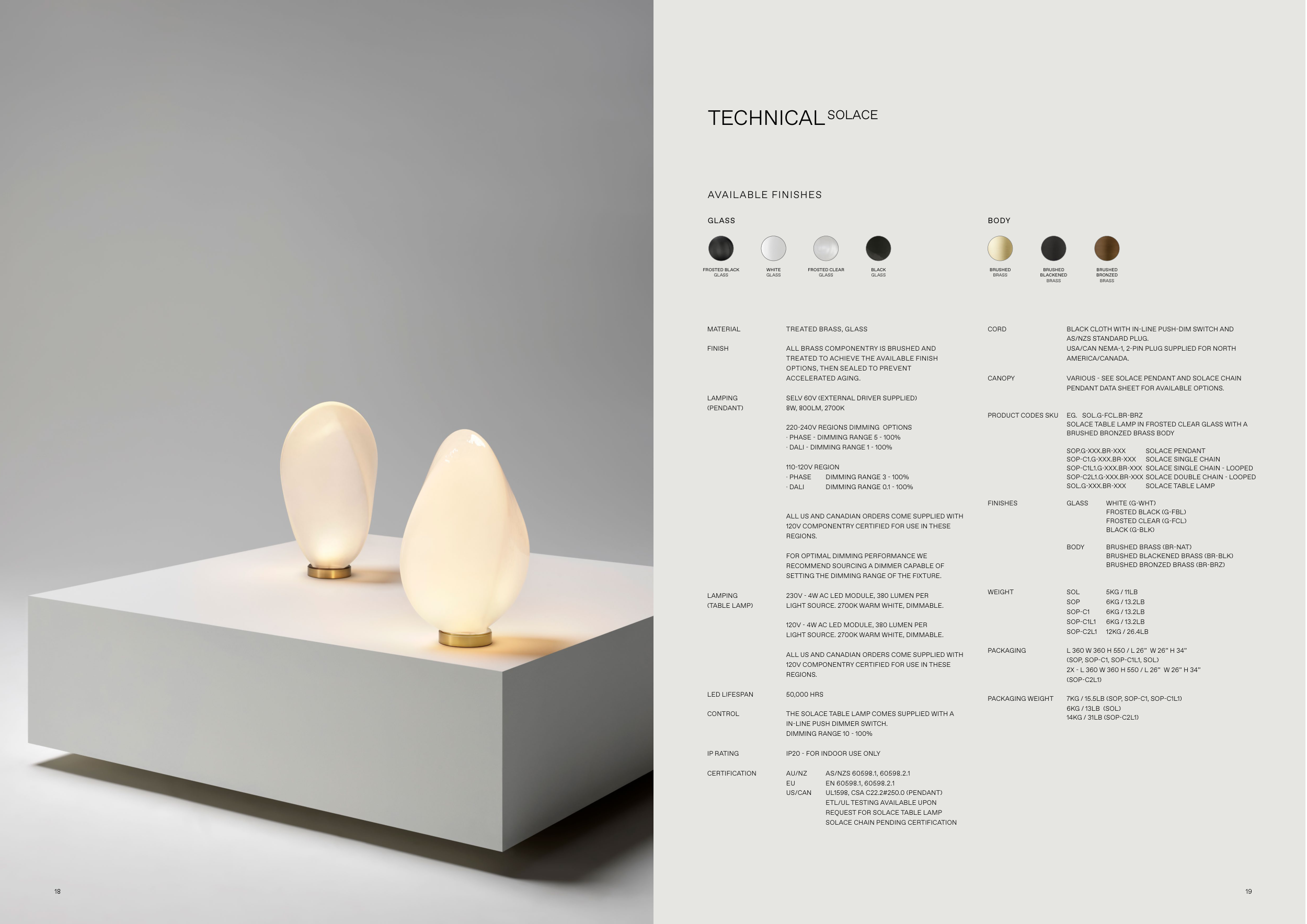

TECHNICAL SOLACE
CORD
BLACK CLOTH WITH IN-LINE PUSH-DIM SWITCH AND
AS/NZS STANDARD PLUG.
USA/CAN NEMA-1, 2-PIN PLUG SUPPLIED FOR NORTH
AMERICA/CANADA.
CANOPY
VARIOUS - SEE SOLACE PENDANT AND SOLACE CHAIN
PENDANT DATA SHEET FOR AVAILABLE OPTIONS.
PRODUCT CODES SKU
EG. SOL.G-FCL.BR-BRZ
SOLACE TABLE LAMP IN FROSTED CLEAR GLASS WITH A
BRUSHED BRONZED BRASS BODY
SOP.G-XXX.BR-XXX
SOLACE PENDANT
SOP-C1.G-XXX.BR-XXX
SOLACE SINGLE CHAIN
SOP-C1L1.G-XXX.BR-XXX SOLACE SINGLE CHAIN - LOOPED
SOP-C2L1.G-XXX.BR-XXX SOLACE DOUBLE CHAIN - LOOPED
SOL.G-XXX.BR-XXX
SOLACE TABLE LAMP
FINISHES
GLASS
WHITE (G-WHT)
FROSTED BLACK (G-FBL)
FROSTED CLEAR (G-FCL)
BLACK (G-BLK)
BODY
BRUSHED BRASS (BR-NAT)
BRUSHED BLACKENED BRASS (BR-BLK)
BRUSHED BRONZED BRASS (BR-BRZ)
WEIGHT
SOL
5KG / 11LB
SOP
6KG / 13.2LB
SOP-C1
6KG / 13.2LB
SOP-C1L1
6KG / 13.2LB
SOP-C2L1
12KG / 26.4LB
PACKAGING
L 360 W 360 H 550 / L 26” W 26” H 34”
(SOP, SOP-C1, SOP-C1L1, SOL)
2X - L 360 W 360 H 550 / L 26” W 26” H 34”
(SOP-C2L1)
PACKAGING WEIGHT
7KG / 15.5LB (SOP, SOP-C1, SOP-C1L1)
6KG / 13LB (SOL)
14KG / 31LB (SOP-C2L1)
MATERIAL
TREATED BRASS, GLASS
FINISH
ALL BRASS COMPONENTRY IS BRUSHED AND
TREATED TO ACHIEVE THE AVAILABLE FINISH
OPTIONS, THEN SEALED TO PREVENT
ACCELERATED AGING.
LAMPING
SELV 60V (EXTERNAL DRIVER SUPPLIED)
(PENDANT)
8W, 800LM, 2700K
220-240V REGIONS DIMMING OPTIONS
· PHASE - DIMMING RANGE 5 - 100%
· DALI - DIMMING RANGE 1 - 100%
110-120V REGION
· PHASE
DIMMING RANGE 3 - 100%
· DALI
DIMMING RANGE 0.1 - 100%
ALL US AND CANADIAN ORDERS COME SUPPLIED WITH
120V COMPONENTRY CERTIFIED FOR USE IN THESE
REGIONS.
FOR OPTIMAL DIMMING PERFORMANCE WE
RECOMMEND SOURCING A DIMMER CAPABLE OF
SETTING THE DIMMING RANGE OF THE FIXTURE.
LAMPING
230V - 4W AC LED MODULE, 380 LUMEN PER
(TABLE LAMP)
LIGHT SOURCE. 2700K WARM WHITE, DIMMABLE.
120V - 4W AC LED MODULE, 380 LUMEN PER
LIGHT SOURCE. 2700K WARM WHITE, DIMMABLE.
ALL US AND CANADIAN ORDERS COME SUPPLIED WITH
120V COMPONENTRY CERTIFIED FOR USE IN THESE
REGIONS.
LED LIFESPAN
50,000 HRS
CONTROL
THE SOLACE TABLE LAMP COMES SUPPLIED WITH A
IN-LINE PUSH DIMMER SWITCH.
DIMMING RANGE 10 - 100%
IP RATING
IP20 - FOR INDOOR USE ONLY
CERTIFICATION
AU/NZ
AS/NZS 60598.1, 60598.2.1
EU
EN 60598.1, 60598.2.1
US/CAN
UL1598, CSA C22.2#250.0 (PENDANT)
ETL/UL TESTING AVAILABLE UPON
REQUEST FOR SOLACE TABLE LAMP
SOLACE CHAIN PENDING CERTIFICATION
WHITE
GLASS
BLACK
GLASS
FROSTED CLEAR
GLASS
FROSTED BLACK
GLASS
BRUSHED
BLACKENED
BRASS
BRUSHED
BRONZED
BRASS
BRUSHED
BRASS
18
19
AVAILABLE FINISHES
GLASS
BODY
