227
190
7"48

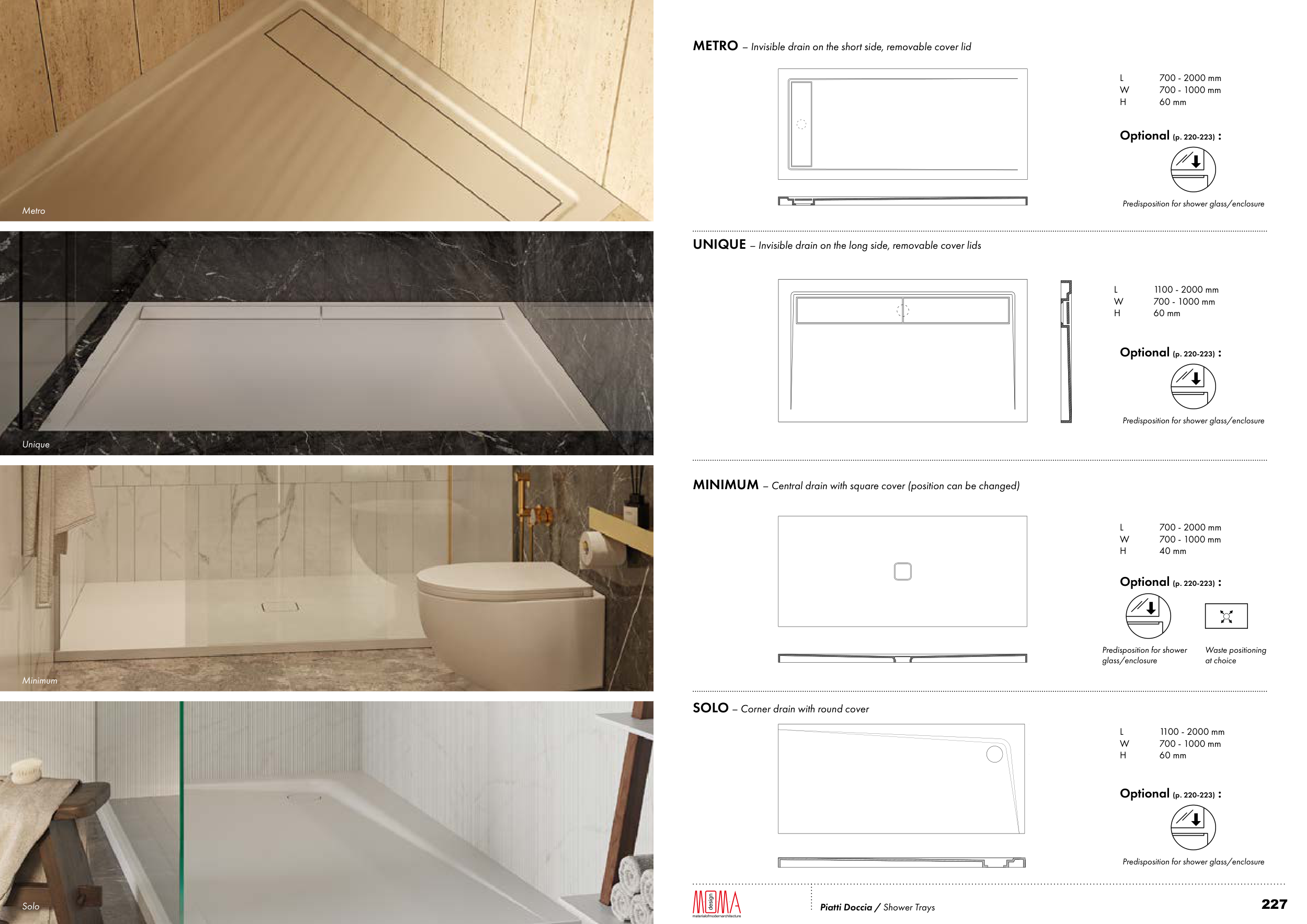

METRO – Invisible drain on the short side, removable cover lid
L
700 - 2000 mm
W
700 - 1000 mm
H
60 mm
UNIQUE – Invisible drain on the long side, removable cover lids
L
1100 - 2000 mm
W
700 - 1000 mm
H
60 mm
MINIMUM – Central drain with square cover (position can be changed)
L
700 - 2000 mm
W
700 - 1000 mm
H
40 mm
SOLO – Corner drain with round cover
L
1100 - 2000 mm
W
700 - 1000 mm
H
60 mm
190
7"48
190
7"48
220
8"66
220
8"66
Piatti Doccia / Shower Trays
Optional (p. 220-223) :
Optional (p. 220-223) :
Optional (p. 220-223) :
Optional (p. 220-223) :
Predisposition for shower glass/enclosure
Predisposition for shower
glass/enclosure
Predisposition for shower glass/enclosure
Predisposition for shower glass/enclosure
Solo
Minimum
Unique
Metro
Waste positioning
at choice
