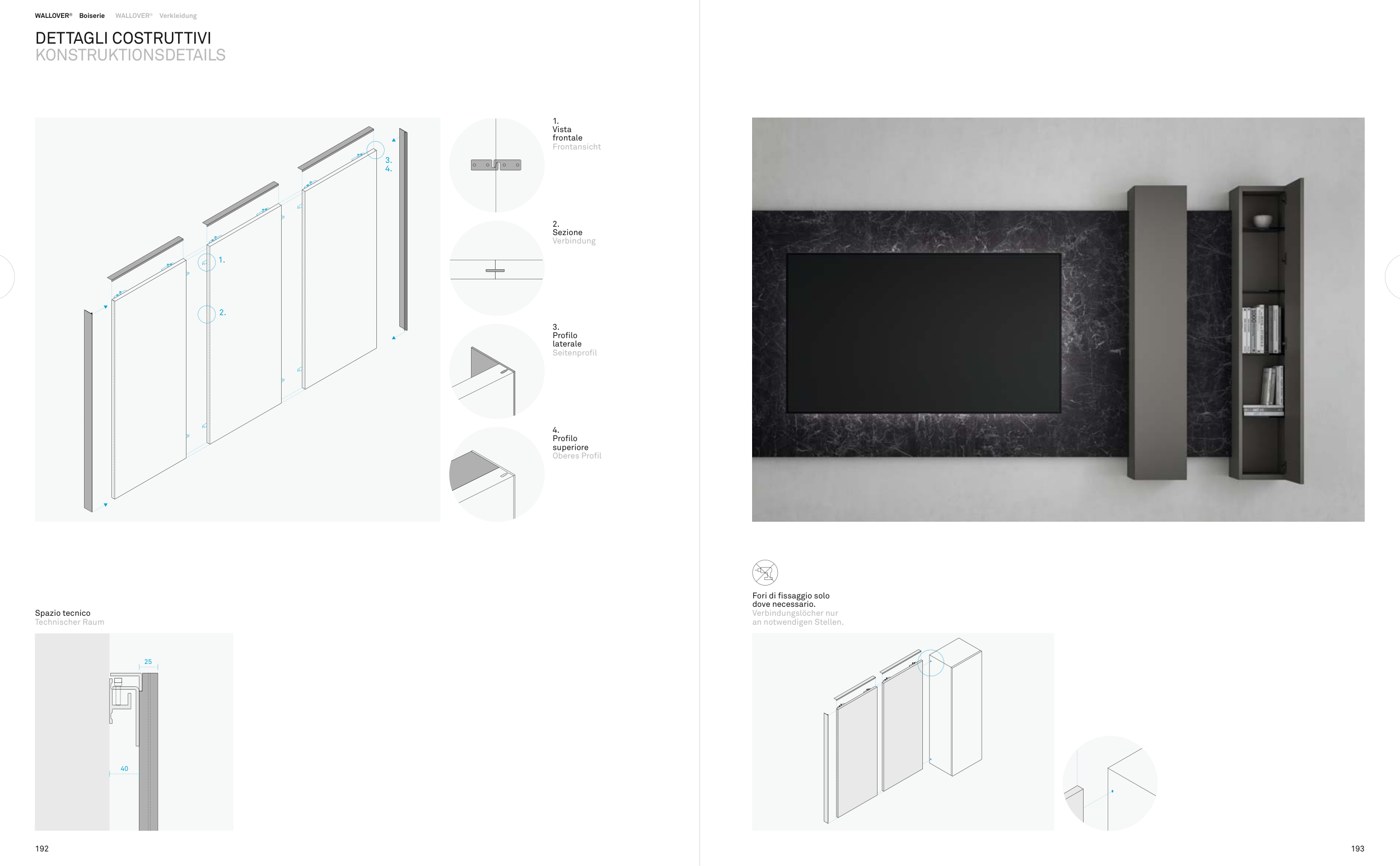

WALLOVER® Boiserie
DETTAGLI COSTRUTTIVI
Spazio tecnico
Vista
frontale
Sezione
Profi lo
laterale
Profi lo
superiore
Fori di fi ssaggio solo
dove necessario.
WALLOVER® Verkleidung
KONSTRUKTIONSDETAILS
Technischer Raum
Frontansicht
Verbindung
Seitenprofi l
Oberes Profi l
Verbindungslöcher nur
an notwendigen Stellen.
