367
DRIVER
TYPOLOGY
DIM
REFERENCE
DESCRIPTION
I
D1
A
ON/OFF
04340036
DRIVER MP15 CONFIG.140mA
140mA
D2
A
04340037
DRIVER MP15 CONFIG.200mA
200mA
D3
A
04340038
DRIVER MP15 CONFIG.300mA
300mA
D4
A
04340039
DRIVER PROFESSIONALE CONFIG.350mA
350mA
D5
A
04340042
DRIVER PROFESSIONALE CONFIG.500mA
500mA
D6
B
04340040
DRIVER PROFESSIONALE CONFIG.700mA
700mA
D7
C
04340041
DRIVER PROFESSIONALE CONFIG.1050mA
1050mA
D8
B
04340143
DRIVER MP50 K3 CONFIG.700mA
700mA
D9
G
04860435
DRIVER LED 4W 350mA
350mA
D10
A
04860835
DRIVER LED 8W BULL 350mA
350mA
D11
A
04340130
DRIVER LED 9W BULL 250mA
250mA
D12
A
04340187
DRIVER PRO FLAT CONFIG 500mA
500mA
D13
B
04330138
DRIVER PRO FLAT CONFIG 650mA
650mA
D14
G
DALI + PUSH
04340189
DRIVER OTI DALI 10 PROGRAMADO 200mA
200mA
D15
G
04340129
DRIVER OTI DALI 10 PROGRAMADO 250mA
250mA
D16
G
04340188
DRIVER OTI DALI 10 PROGRAMADO 500mA
500mA
D17
G
04330107
DRIVER OTI DALI 15 PROGRAMADO 300mA
300mA
D18
G
04330141
DRIVER OTI DALI 15 PROGRAMADO 650mA
650mA
D19
D
PUSH + 1-10V
04340078
DRIVER JOLLY DIM 1/10V / PUSH CONFIG.350mA
350mA
D20
D
04340043
DRIVER JOLLY DIM 1/10V / PUSH CONFIG.500mA
500mA
D21
E
04340045
DRIVER JOLLY DIM 1/10V / PUSH CONFIG.700mA
700mA
D22
D
DALI
04340079
DRIVER JOLLY DIM DALI CONFIG 350mA
350mA
D23
D
04340044
DRIVER JOLLY DIM DALI CONFIG 500mA
500mA
D24
E
04340046
DRIVER JOLLY DIM DALI CONFIG 700mA
700mA
D25
D
DALI + PUSH + 1-10V
04340123
DRIVER MAXI JOLLY CONFIG 350mA
350mA
D26
D
04340124
DRIVER MAXI JOLLY CONFIG 500mA
500mA
D27
E
04340125
DRIVER MAXI JOLLY CONFIG 700mA
700mA
D28
F
04340126
DRIVER MAXI JOLLY CONFIG 1050mA
1050mA
D29
D
CASAMBI
04340145
DRIVER CASAMBI READY CONFIG.350mA
350mA
D30
D
04340146
DRIVER CASAMBI READY CONFIG.500mA
500mA
D31
E
04340147
DRIVER CASAMBI READY CONFIG.700mA
700mA
D32
F
04340148
DRIVER CASAMBI READY CONFIG.1050mA
1050mA
D33
G
04340191
DRIVER OT WI 15 CASAMBI PROGRAMADO 200mA
200mA
D34
G
04340198
DRIVER OT WI 15 CASAMBI PROGRAMADO 650mA
650mA

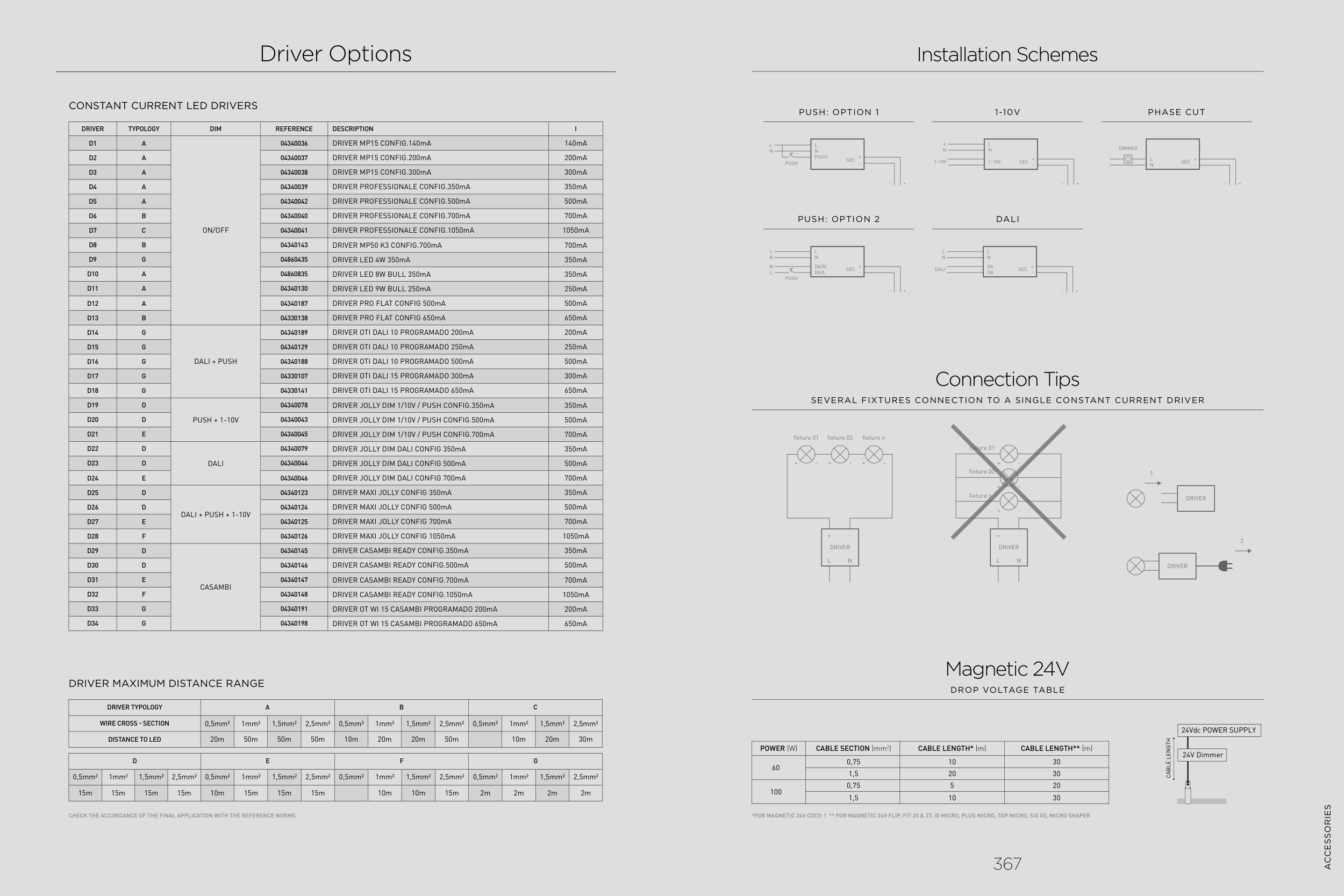

CONSTANT CURRENT LED DRIVERS
DRIVER TYPOLOGY
A
B
C
WIRE CROSS - SECTION
0,5mm²
1mm²
1,5mm²
2,5mm²
0,5mm²
1mm²
1,5mm²
2,5mm²
0,5mm²
1mm²
1,5mm²
2,5mm²
DISTANCE TO LED
20m
50m
50m
50m
10m
20m
20m
50m
10m
20m
30m
D
E
F
G
0,5mm²
1mm²
1,5mm²
2,5mm²
0,5mm²
1mm²
1,5mm²
2,5mm²
0,5mm²
1mm²
1,5mm²
2,5mm²
0,5mm²
1mm²
1,5mm²
2,5mm²
15m
15m
15m
15m
10m
15m
15m
15m
10m
10m
15m
2m
2m
2m
2m
DRIVER MAXIMUM DISTANCE RANGE
Installation Schemes
SEC +
-
N
L
N
L
+
-
PUSH
DA/L
DA/N
L
N
SEC +
-
N
L
N
L
+
-
DA
DA
DALI
PUSH: OPTION 2
DALI
SEC +
-
PUSH
N
L
PUSH
N
L
+
-
SEC +
-
1-10V
N
L
N
L
+
-
1-10V
SEC +
-
N
L
+
-
DIMMER
PUSH: OPTION 1
1-10V
PHASE CUT
Magnetic 24V
DROP VOLTAGE TABLE
Connection Tips
SEVERAL FIXTURES CONNECTION TO A SINGLE CONSTANT CURRENT DRIVER
N
L
+
-
DRIVER
+
-
+
-
+
-
fixture 01
fixture 02
fixture n
N
L
+
-
DRIVER
+
-
+
-
+
-
fixture n
fixture 02
fixture 01
DRIVER
1
DRIVER
2
N
L
+
-
DRIVER
+
-
+
-
+
-
fixture 01
fixture 02
fixture n
N
L
+
-
DRIVER
+
-
+
-
+
-
fixture n
fixture 02
fixture 01
DRIVER
1
DRIVER
2
CABLE LENGTH** (m)
30
30
20
30
CABLE SECTION (mm2)
POWER (W)
CABLE LENGTH* (m)
10
20
5
10
0,75
60
100
1,5
0,75
1,5
CABLE LENGTH
24V Dimmer
24Vdc POWER SUPPLY
*FOR MAGNETIC 24V COCO | ** FOR MAGNETIC 24V FLIP, FIT 20 & 27, iO MICRO, PLUS MICRO, TOP MICRO, SIX XS, MICRO SHAPER
CHECK THE ACCORDANCE OF THE FINAL APPLICATION WITH THE REFERENCE NORMS.
Driver Options
ACCESSORIES
