Controls

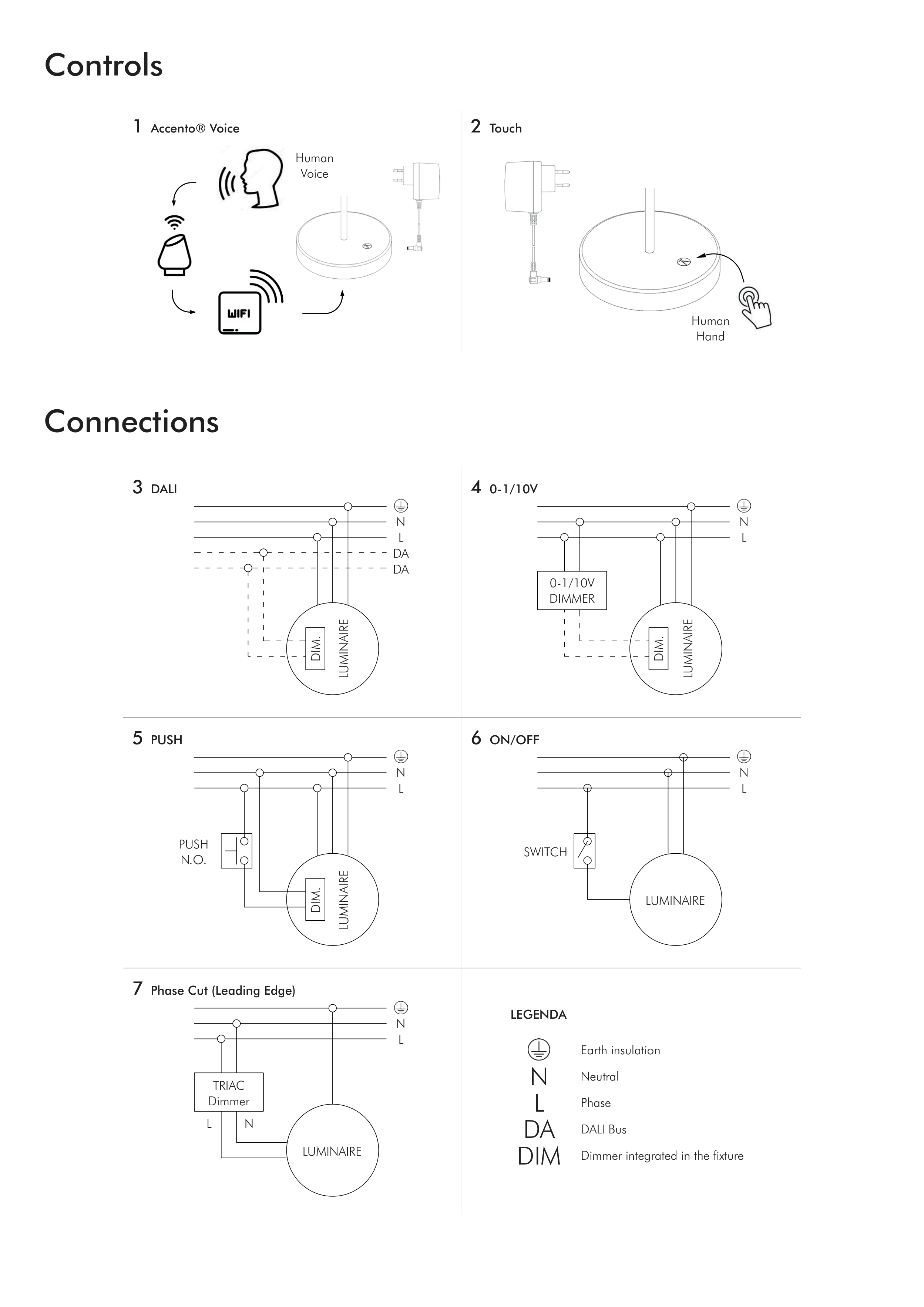

Connections
1 Accento® Voice
2 Touch
3 DALI
4 0-1/10V
5 PUSH
6 ON/OFF
7 Phase Cut (Leading Edge)
N
L
LUMINAIRE
TRIAC
Dimmer
L
N
LUMINAIRE
LUMINAIRE
LUMINAIRE
LUMINAIRE
N
L
N
L
N
L
N
L
DA
DA
DIM.
DIM.
0-1/10V
DIMMER
PUSH
N.O.
DIM.
SWITCH
N
DA
DIM
LEGENDA
L
Human
Voice
Human
Hand
Earth insulation
Neutral
Phase
DALI Bus
Dimmer integrated in the fixture
