166
Up to 495 lumen –
Ideal as orientation light

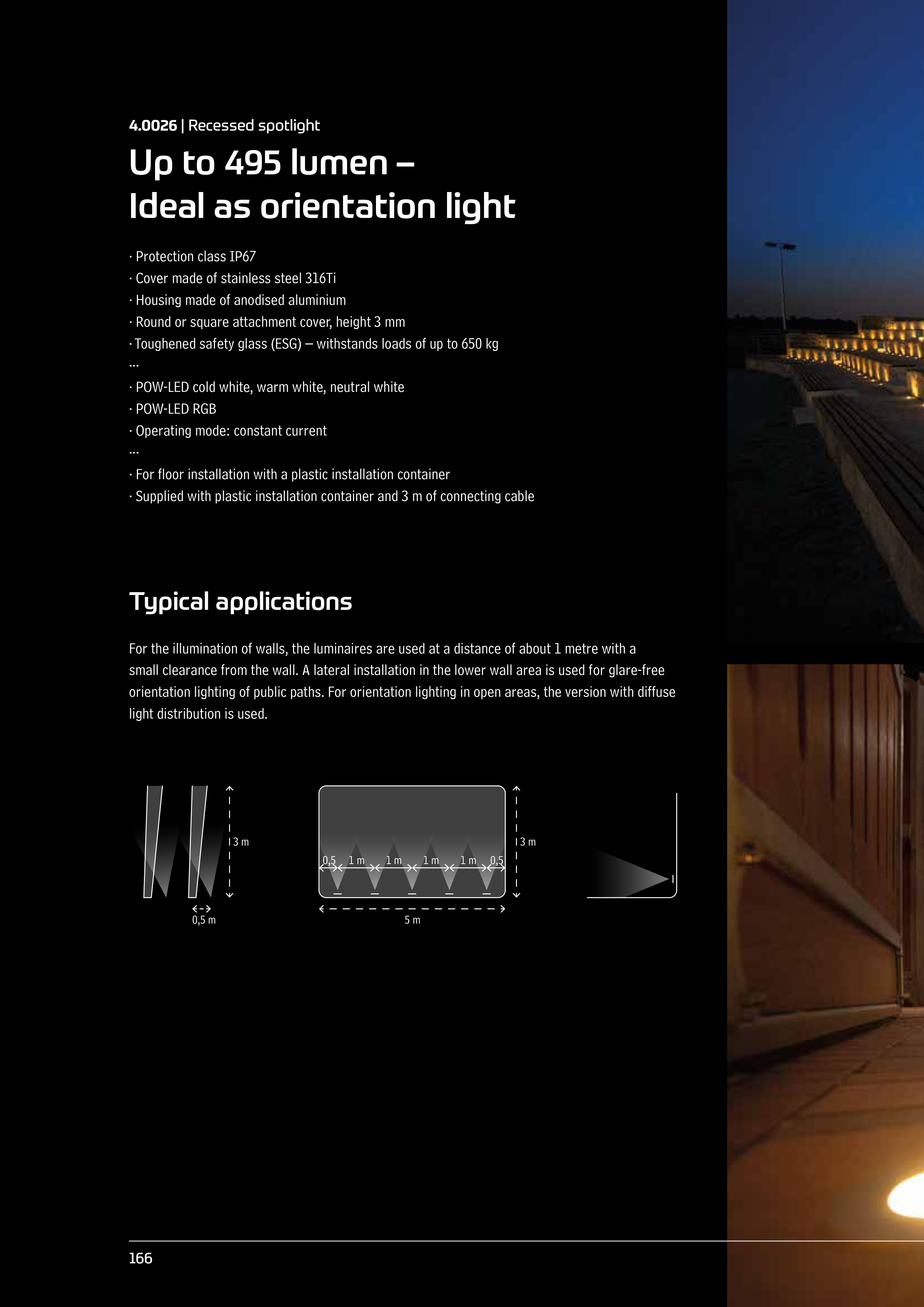

4.0026 | Recessed spotlight
· Protection class IP67
· Cover made of stainless steel 316Ti
· Housing made of anodised aluminium
· Round or square attachment cover, height 3 mm
· Toughened safety glass (ESG) – withstands loads of up to 650 kg
···
· POW-LED cold white, warm white, neutral white
· POW-LED RGB
· Operating mode: constant current
···
· For floor installation with a plastic installation container
· Supplied with plastic installation container and 3 m of connecting cable
For the illumination of walls, the luminaires are used at a distance of about 1 metre with a
small clearance from the wall. A lateral installation in the lower wall area is used for glare-free
orientation lighting of public paths. For orientation lighting in open areas, the version with diffuse
light distribution is used.
3 m
0,5 m
5 m
0,5
0,5
1 m
1 m
1 m
1 m
3 m
Typical applications
