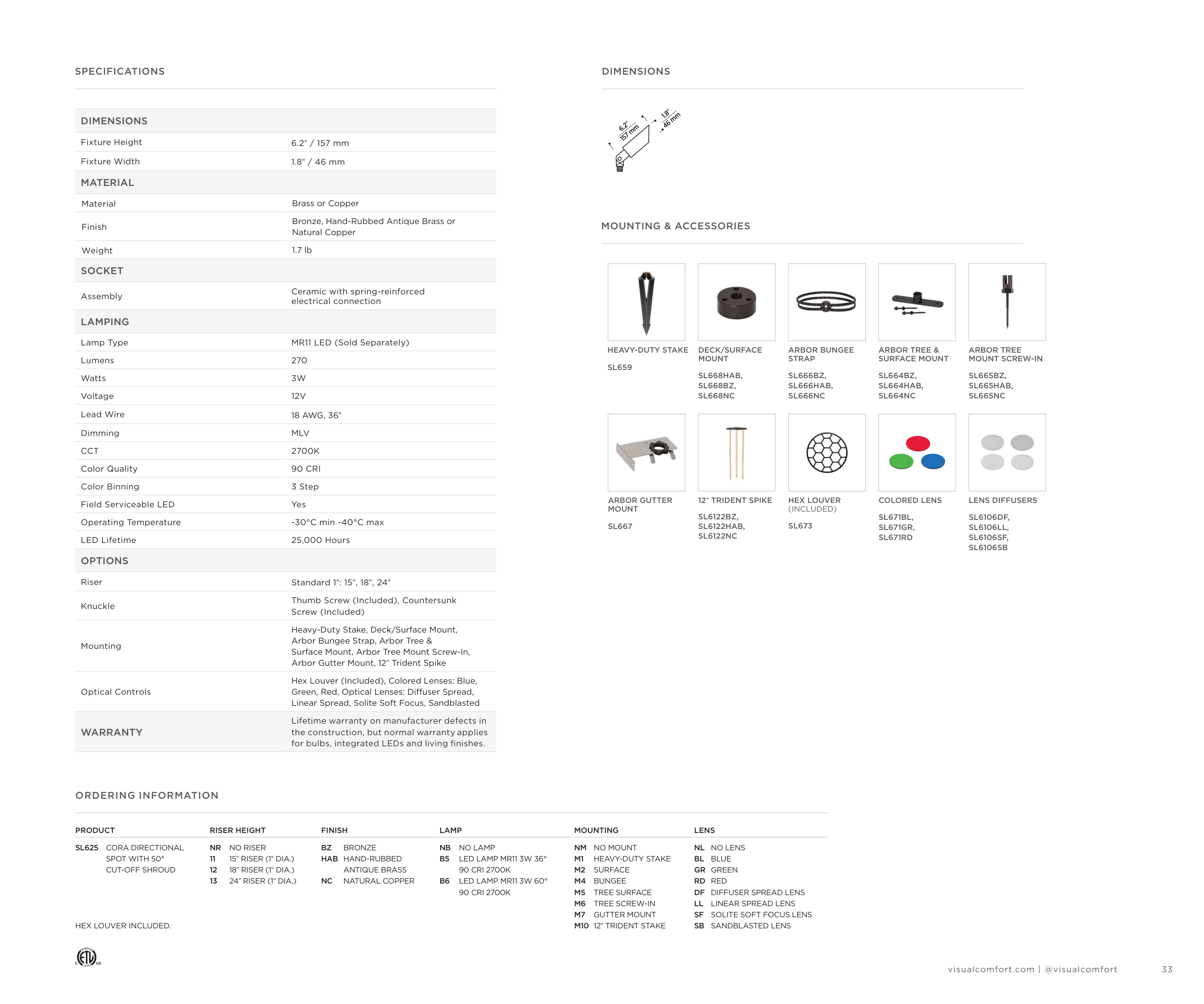

SPECIFICATIONS
DIMENSIONS
ORDERING INFORMATION
PRODUCT
RISER HEIGHT
FINISH
LAMP
MOUNTING
LENS
SL625 CORA DIRECTIONAL
SPOT WITH 50°
CUT-OFF SHROUD
NR NO RISER
11
15" RISER (1" DIA.)
12
18" RISER (1" DIA.)
13
24" RISER (1" DIA.)
BZ
BRONZE
HAB HAND-RUBBED
ANTIQUE BRASS
NC
NATURAL COPPER
NB NO LAMP
B5
LED LAMP MR11 3W 36°
90 CRI 2700K
B6
LED LAMP MR11 3W 60°
90 CRI 2700K
NM NO MOUNT
M1
HEAVY-DUTY STAKE
M2
SURFACE
M4 BUNGEE
M5
TREE SURFACE
M6 TREE SCREW-IN
M7
GUTTER MOUNT
M10 12" TRIDENT STAKE
NL NO LENS
BL BLUE
GR GREEN
RD RED
DF DIFFUSER SPREAD LENS
LL LINEAR SPREAD LENS
SF SOLITE SOFT FOCUS LENS
SB SANDBLASTED LENS
DIMENSIONS
Fixture Height
6.2" / 157 mm
Fixture Width
1.8" / 46 mm
MATERIAL
Material
Brass or Copper
Finish
Bronze, Hand-Rubbed Antique Brass or
Natural Copper
Weight
1.7 lb
SOCKET
Assembly
Ceramic with spring-reinforced
electrical connection
LAMPING
Lamp Type
MR11 LED (Sold Separately)
Lumens
270
Watts
3W
Voltage
12V
Lead Wire
18 AWG, 36"
Dimming
MLV
CCT
2700K
Color Quality
90 CRI
Color Binning
3 Step
Field Serviceable LED
Yes
Operating Temperature
-30°C min -40°C max
LED Lifetime
25,000 Hours
OPTIONS
Riser
Standard 1": 15", 18", 24"
Knuckle
Thumb Screw (Included), Countersunk
Screw (Included)
Mounting
Heavy-Duty Stake, Deck/Surface Mount,
Arbor Bungee Strap, Arbor Tree &
Surface Mount, Arbor Tree Mount Screw-In,
Arbor Gutter Mount, 12" Trident Spike
Optical Controls
Hex Louver (Included), Colored Lenses: Blue,
Green, Red, Optical Lenses: Diffuser Spread,
Linear Spread, Solite Soft Focus, Sandblasted
WARRANTY
Lifetime warranty on manufacturer defects in
the construction, but normal warranty applies
for bulbs, integrated LEDs and living finishes.
6.2"
157 mm
1.8"
46 mm
HEX LOUVER INCLUDED.
MOUNTING & ACCESSORIES
HEAVY-DUTY STAKE
SL659
DECK/SURFACE
MOUNT
SL668HAB,
SL668BZ,
SL668NC
ARBOR BUNGEE
STRAP
SL666BZ,
SL666HAB,
SL666NC
LENS DIFFUSERS
SL6106DF,
SL6106LL,
SL6106SF,
SL6106SB
ARBOR TREE &
SURFACE MOUNT
SL664BZ,
SL664HAB,
SL664NC
ARBOR TREE
MOUNT SCREW-IN
SL665BZ,
SL665HAB,
SL665NC
COLORED LENS
SL671BL,
SL671GR,
SL671RD
ARBOR GUTTER
MOUNT
SL667
HEX LOUVER
(INCLUDED)
SL673
12" TRIDENT SPIKE
SL6122BZ,
SL6122HAB,
SL6122NC
33
