SPECIFICATIONS

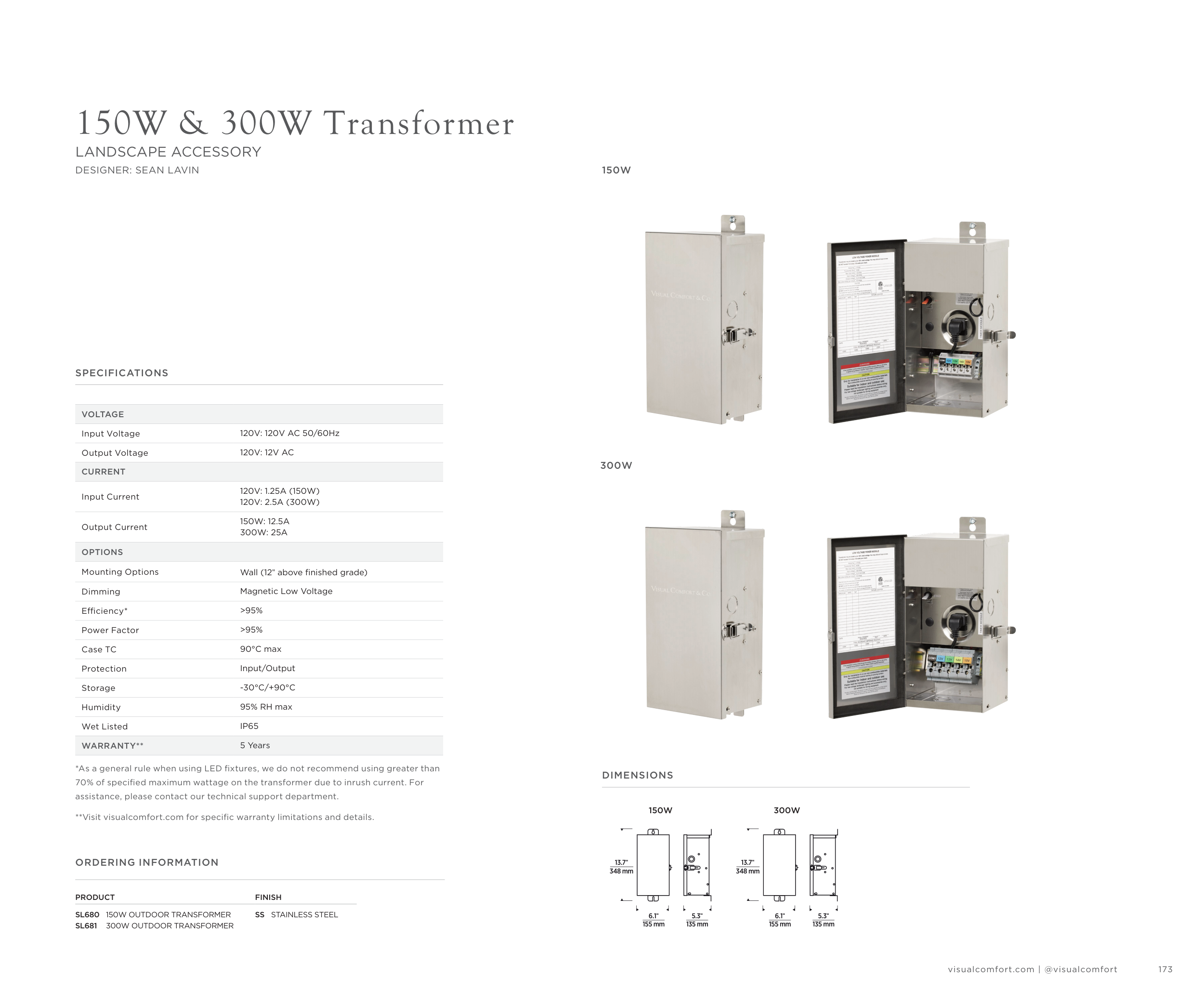

150W & 300W Transformer
LANDSCAPE ACCESSORY
DESIGNER: SEAN LAVIN
ORDERING INFORMATION
PRODUCT
FINISH
SL680 150W OUTDOOR TRANSFORMER
SL681
300W OUTDOOR TRANSFORMER
SS STAINLESS STEEL
6.1"
155 mm
5.3"
135 mm
13.7"
348 mm
6.1"
155 mm
5.3"
135 mm
13.7"
348 mm
DIMENSIONS
150W
300W
VOLTAGE
Input Voltage
120V: 120V AC 50/60Hz
Output Voltage
120V: 12V AC
CURRENT
Input Current
120V: 1.25A (150W)
120V: 2.5A (300W)
Output Current
150W: 12.5A
300W: 25A
OPTIONS
Mounting Options
Wall (12" above finished grade)
Dimming
Magnetic Low Voltage
Efficiency*
>95%
Power Factor
>95%
Case TC
90°C max
Protection
Input/Output
Storage
-30°C/+90°C
Humidity
95% RH max
Wet Listed
IP65
WARRANTY**
5 Years
*As a general rule when using LED fixtures, we do not recommend using greater than
70% of specified maximum wattage on the transformer due to inrush current. For
assistance, please contact our technical support department.
**Visit visualcomfort.com for specific warranty limitations and details.
150W
300W
