145
visualcomfort.com | @visualcomfort

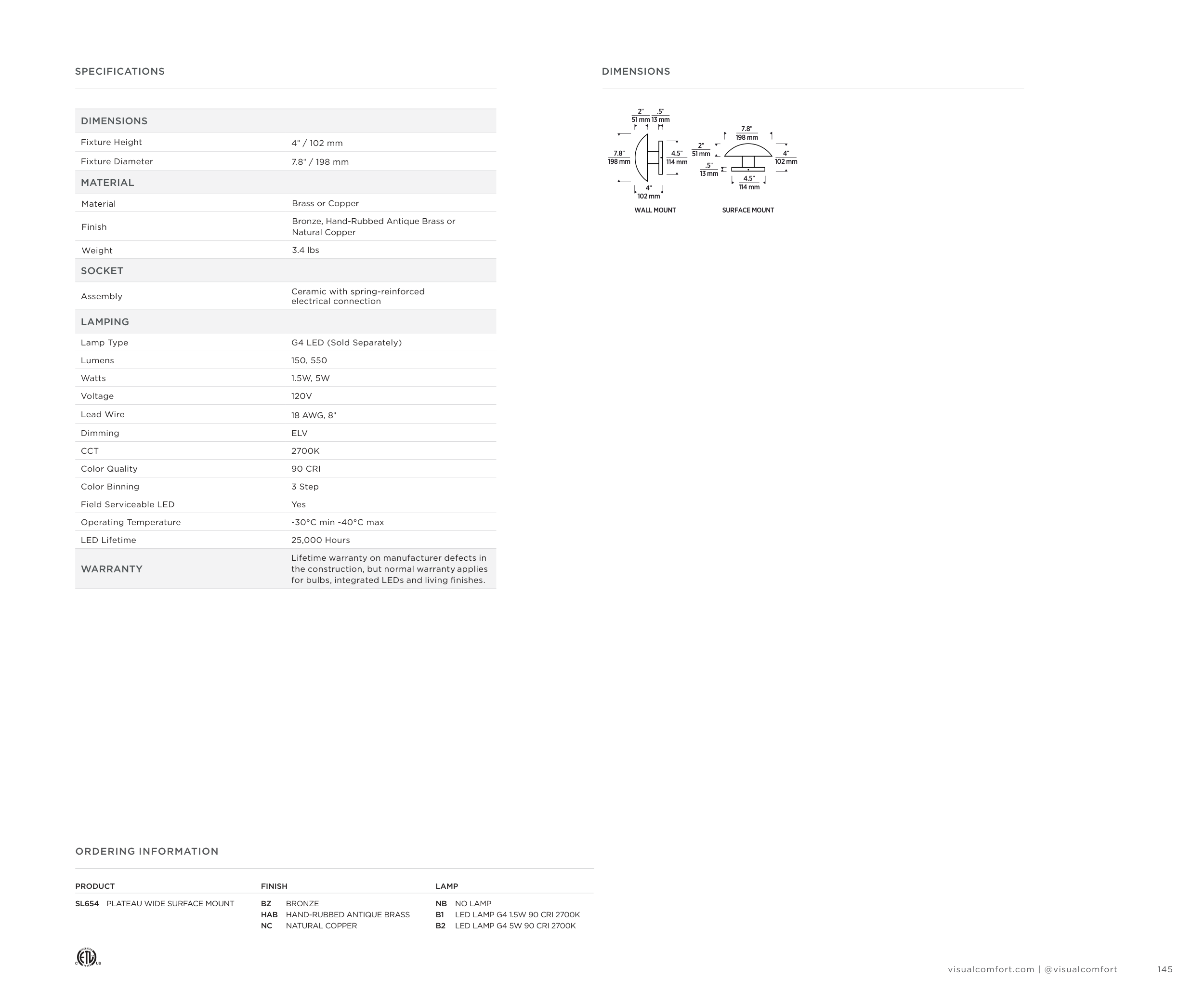

SPECIFICATIONS
DIMENSIONS
DIMENSIONS
Fixture Height
4" / 102 mm
Fixture Diameter
7.8" / 198 mm
MATERIAL
Material
Brass or Copper
Finish
Bronze, Hand-Rubbed Antique Brass or
Natural Copper
Weight
3.4 lbs
SOCKET
Assembly
Ceramic with spring-reinforced
electrical connection
LAMPING
Lamp Type
G4 LED (Sold Separately)
Lumens
150, 550
Watts
1.5W, 5W
Voltage
120V
Lead Wire
18 AWG, 8"
Dimming
ELV
CCT
2700K
Color Quality
90 CRI
Color Binning
3 Step
Field Serviceable LED
Yes
Operating Temperature
-30°C min -40°C max
LED Lifetime
25,000 Hours
WARRANTY
Lifetime warranty on manufacturer defects in
the construction, but normal warranty applies
for bulbs, integrated LEDs and living finishes.
ORDERING INFORMATION
PRODUCT
FINISH
LAMP
SL654 PLATEAU WIDE SURFACE MOUNT
BZ
BRONZE
HAB HAND-RUBBED ANTIQUE BRASS
NC
NATURAL COPPER
NB NO LAMP
B1
LED LAMP G4 1.5W 90 CRI 2700K
B2
LED LAMP G4 5W 90 CRI 2700K
7.8"
198 mm
2"
51 mm
.5"
13 mm
4"
102 mm
4.5"
114 mm
7.8"
198 mm
4.5"
114 mm
4"
102 mm
WALL MOUNT
SURFACE MOUNT
2"
51 mm
.5"
13 mm
