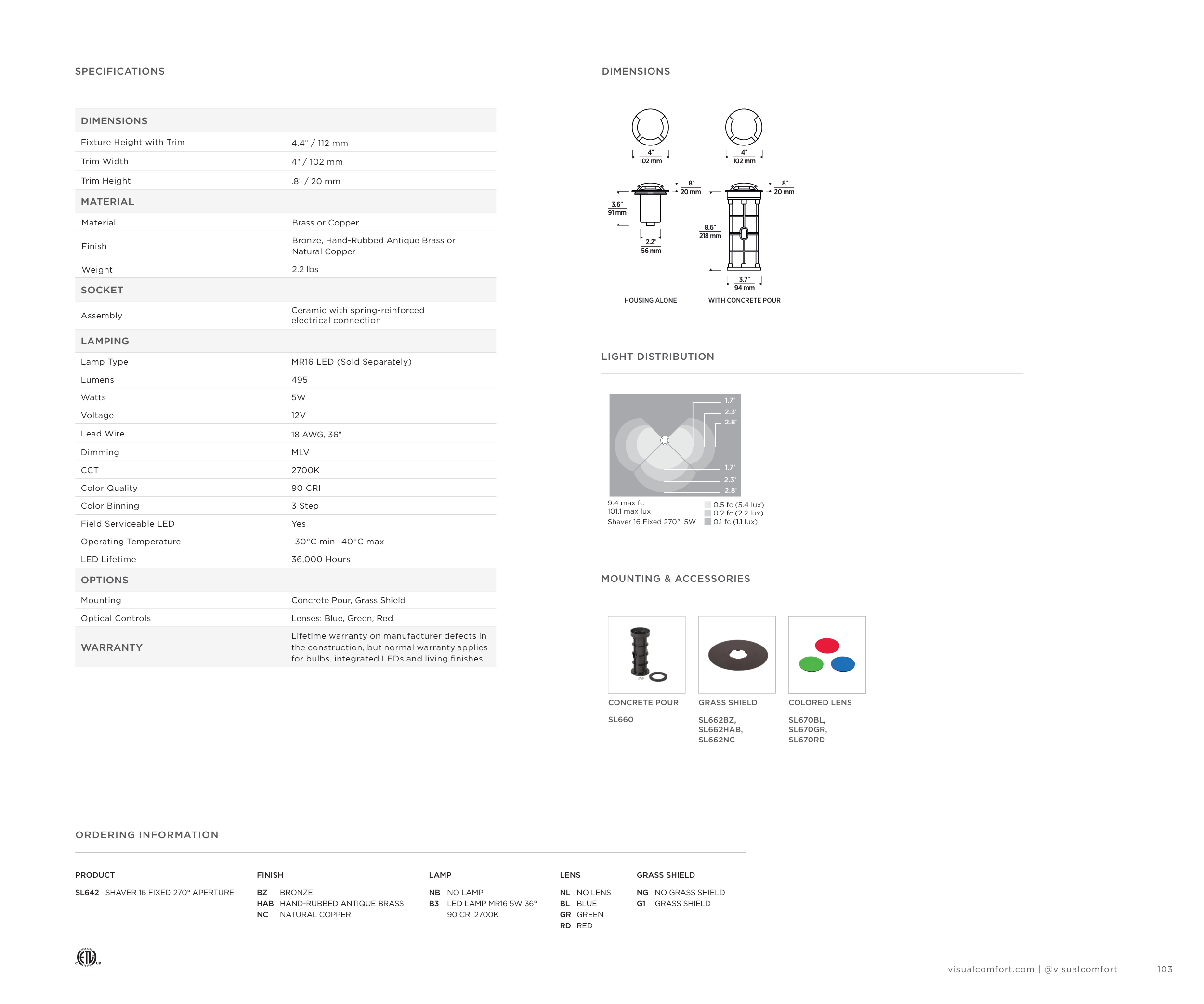

SPECIFICATIONS
DIMENSIONS
DIMENSIONS
Fixture Height with Trim
4.4" / 112 mm
Trim Width
4" / 102 mm
Trim Height
.8" / 20 mm
MATERIAL
Material
Brass or Copper
Finish
Bronze, Hand-Rubbed Antique Brass or
Natural Copper
Weight
2.2 lbs
SOCKET
Assembly
Ceramic with spring-reinforced
electrical connection
LAMPING
Lamp Type
MR16 LED (Sold Separately)
Lumens
495
Watts
5W
Voltage
12V
Lead Wire
18 AWG, 36"
Dimming
MLV
CCT
2700K
Color Quality
90 CRI
Color Binning
3 Step
Field Serviceable LED
Yes
Operating Temperature
-30°C min -40°C max
LED Lifetime
36,000 Hours
OPTIONS
Mounting
Concrete Pour, Grass Shield
Optical Controls
Lenses: Blue, Green, Red
WARRANTY
Lifetime warranty on manufacturer defects in
the construction, but normal warranty applies
for bulbs, integrated LEDs and living finishes.
LIGHT DISTRIBUTION
Shaver 16 Fixed 270°, 5W
9.4 max fc
101.1 max lux
1.7'
2.3'
2.8'
2.8'
2.3'
1.7'
0.5 fc (5.4 lux)
0.2 fc (2.2 lux)
0.1 fc (1.1 lux)
ORDERING INFORMATION
PRODUCT
FINISH
LAMP
LENS
GRASS SHIELD
SL642 SHAVER 16 FIXED 270° APERTURE
BZ
BRONZE
HAB HAND-RUBBED ANTIQUE BRASS
NC
NATURAL COPPER
NB NO LAMP
B3 LED LAMP MR16 5W 36°
90 CRI 2700K
NL NO LENS
BL BLUE
GR GREEN
RD RED
NG NO GRASS SHIELD
G1
GRASS SHIELD
4"
102 mm
.8"
20 mm
4"
102 mm
.8"
20 mm
HOUSING ALONE
WITH CONCRETE POUR
3.6"
91 mm
2.2"
56 mm
3.7"
94 mm
8.6"
218 mm
MOUNTING & ACCESSORIES
GRASS SHIELD
SL662BZ,
SL662HAB,
SL662NC
COLORED LENS
SL670BL,
SL670GR,
SL670RD
CONCRETE POUR
SL660
