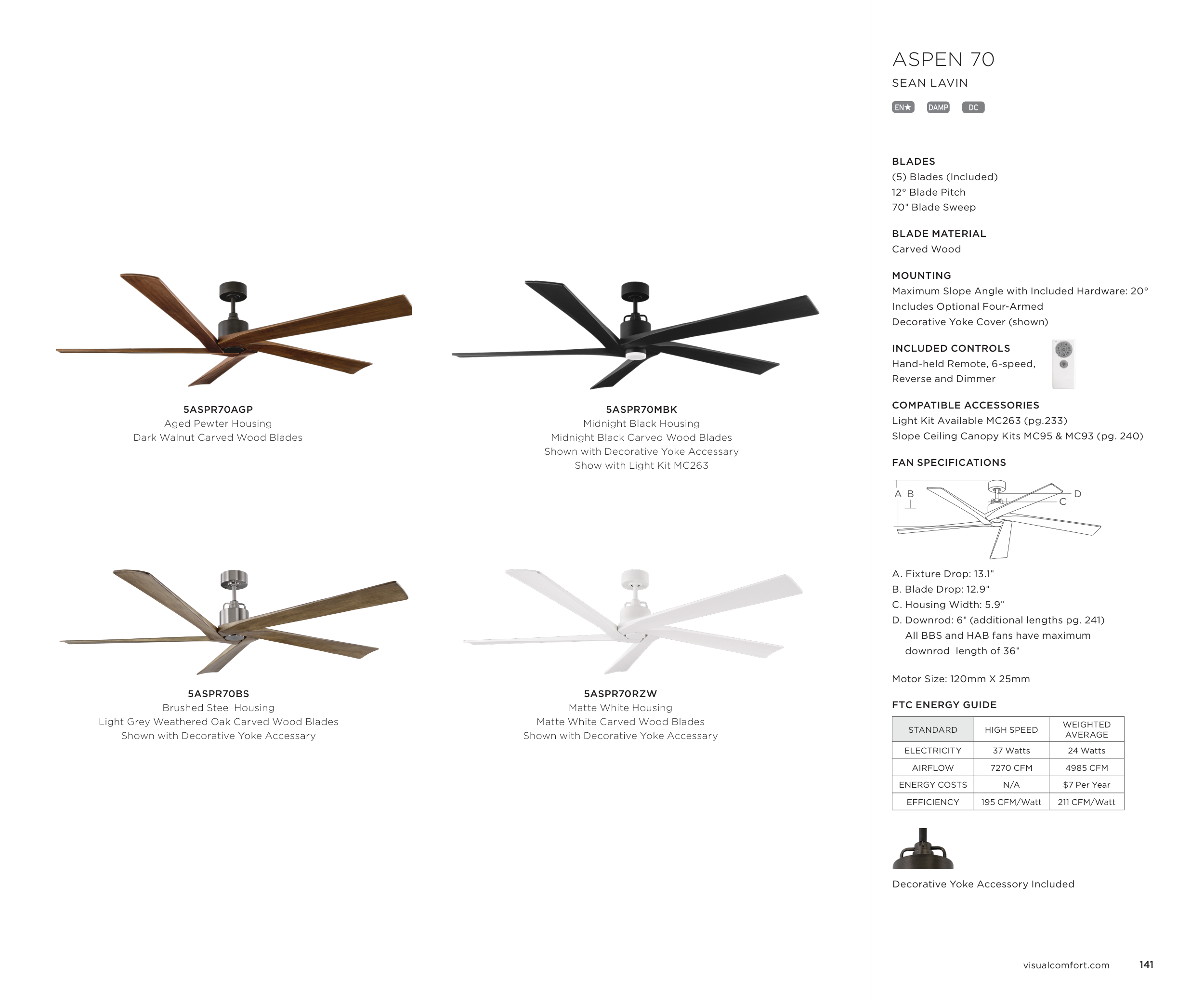

ASPEN 70
SEAN LAVIN
EN★ DAMP
DC
BLADES
(5) Blades (Included)
12° Blade Pitch
70" Blade Sweep
BLADE MATERIAL
Carved Wood
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
Includes Optional Four-Armed
Decorative Yoke Cover (shown)
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Light Kit Available MC263 (pg.233)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C D
A. Fixture Drop: 13.1"
B. Blade Drop: 12.9"
C. Housing Width: 5.9"
D. Downrod: 6" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 120mm X 25mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
37 Watts
24 Watts
AIRFLOW
7270 CFM
4985 CFM
ENERGY COSTS
N/A
$7 Per Year
EFFICIENCY
195 CFM/Watt
211 CFM/Watt
5ASPR70MBK
Midnight Black Housing
Midnight Black Carved Wood Blades
Shown with Decorative Yoke Accessary
Show with Light Kit MC263
5ASPR70BS
Brushed Steel Housing
Light Grey Weathered Oak Carved Wood Blades
Shown with Decorative Yoke Accessary
Decorative Yoke Accessory Included
5ASPR70AGP
Aged Pewter Housing
Dark Walnut Carved Wood Blades
5ASPR70RZW
Matte White Housing
Matte White Carved Wood Blades
Shown with Decorative Yoke Accessary
141
visualcomfort.com
