635
Ø 102
45°
45°
355°
950
Ø 102
45°
45°
355°
3285
Ø 102
45°
45°
355°
+1
+2
950
+1
1265
+1
1580
+2
+2
3285
635
3600
945
3915
1265
36
37

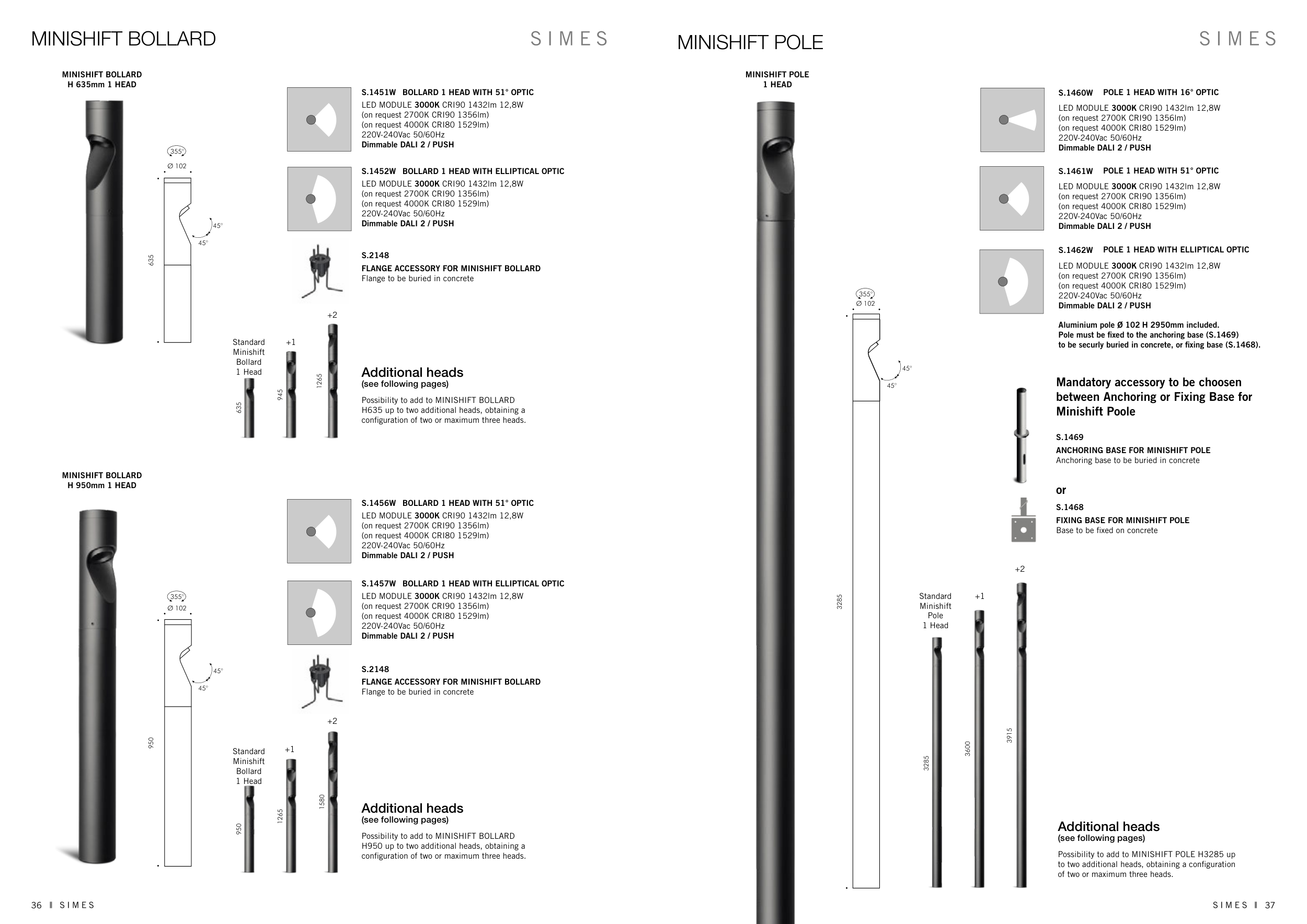

MINISHIFT BOLLARD
MINISHIFT BOLLARD
H 635mm 1 HEAD
MINISHIFT BOLLARD
H 950mm 1 HEAD
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
FLANGE ACCESSORY FOR MINISHIFT BOLLARD
Flange to be buried in concrete
FLANGE ACCESSORY FOR MINISHIFT BOLLARD
Flange to be buried in concrete
BOLLARD 1 HEAD WITH 51° OPTIC
BOLLARD 1 HEAD WITH 51° OPTIC
BOLLARD 1 HEAD WITH ELLIPTICAL OPTIC
BOLLARD 1 HEAD WITH ELLIPTICAL OPTIC
POLE 1 HEAD WITH 51° OPTIC
POLE 1 HEAD WITH 16° OPTIC
POLE 1 HEAD WITH ELLIPTICAL OPTIC
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
LED MODULE 3000K CRI90 1432lm 12,8W
(on request 2700K CRI90 1356lm)
(on request 4000K CRI80 1529lm)
220V-240Vac 50/60Hz
Dimmable DALI 2 / PUSH
Aluminium pole Ø 102 H 2950mm included.
Pole must be fixed to the anchoring base (S.1469)
to be securly buried in concrete, or fixing base (S.1468).
MINISHIFT POLE
ANCHORING BASE FOR MINISHIFT POLE
Anchoring base to be buried in concrete
FIXING BASE FOR MINISHIFT POLE
Base to be fixed on concrete
Mandatory accessory to be choosen
between Anchoring or Fixing Base for
Minishift Poole
MINISHIFT POLE
1 HEAD
Additional heads
(see following pages)
Possibility to add to MINISHIFT POLE H3285 up
to two additional heads, obtaining a configuration
of two or maximum three heads.
Additional heads
(see following pages)
Possibility to add to MINISHIFT BOLLARD
H950 up to two additional heads, obtaining a
configuration of two or maximum three heads.
Additional heads
(see following pages)
Possibility to add to MINISHIFT BOLLARD
H635 up to two additional heads, obtaining a
configuration of two or maximum three heads.
Standard
Minishift
Bollard
1 Head
Standard
Minishift
Pole
1 Head
Standard
Minishift
Bollard
1 Head
or
S.1451W
S.1452W
S.1456W
S.1457W
S.2148
S.2148
S.1461W
S.1460W
S.1462W
S.1469
S.1468
