Each reference is a complete product.
Light bulbs are not included.
The steel supports are not covered by the anti-corrosion warranty.
It is recommended to regularly maintain the light fixtures in accordance with the standard practices of the profession and to prohibit the use of any
abrasive or corrosive material or product.
Our terms and conditions are listed on the back of our delivery notes and bills.
As part of its constant strive to improve the quality of the light fixtures, Roger Pradier® reserves the right to modify, without notice or
compensation, all or part of the equipment presented in this catalogue.
The images, dimensions and scenarios in the photographs in this catalogue cannot be regarded as contractual.
| ROGER PRADIER - TECHNICAL SPECIFICATIONS - Ingress Protection (IP) ratings

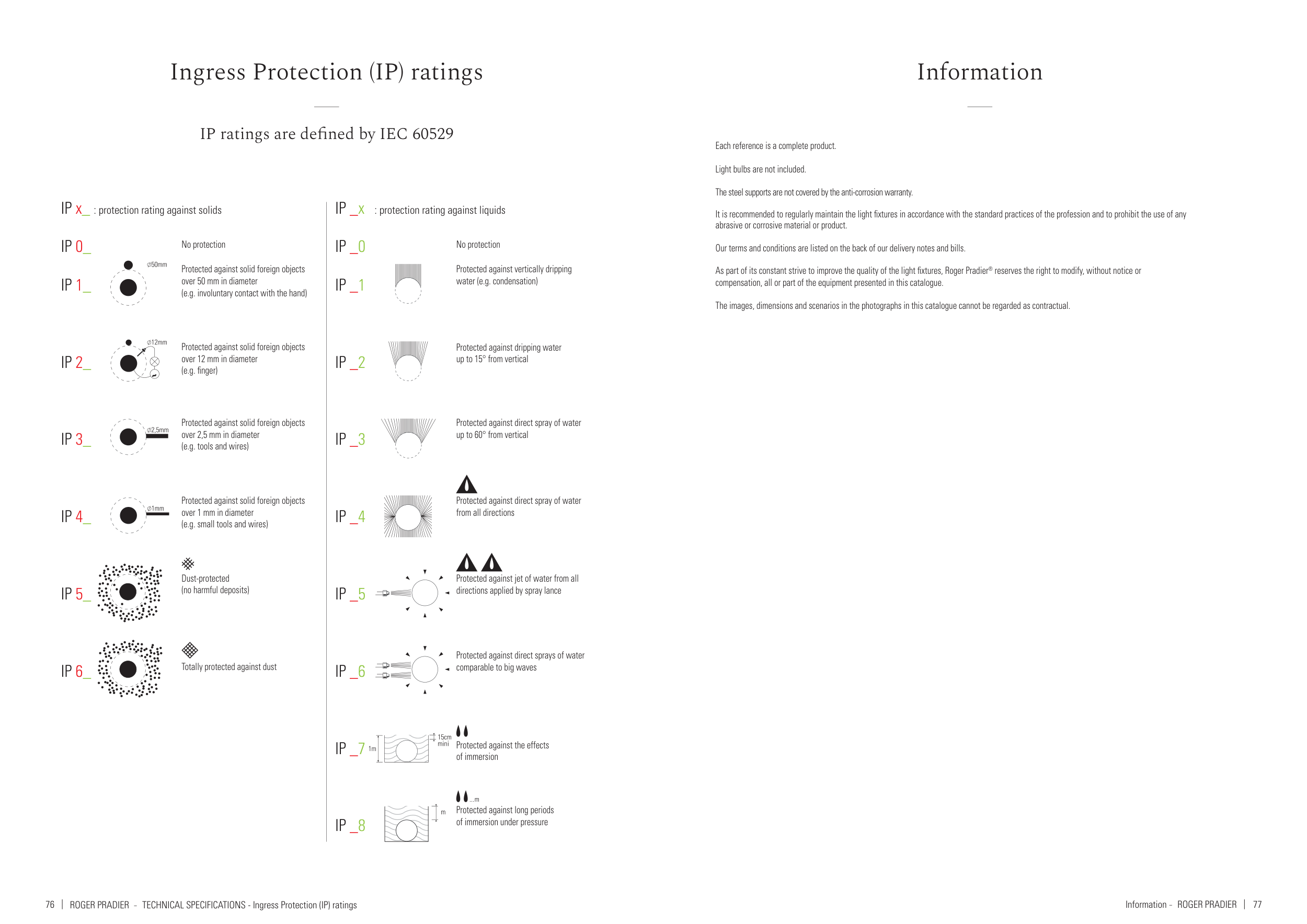

Ingress Protection (IP) ratings
IP ratings are defined by IEC 60529
No protection
Protected against solid foreign objects
over 50 mm in diameter
(e.g. involuntary contact with the hand)
Protected against solid foreign objects
over 12 mm in diameter
(e.g. finger)
Protected against solid foreign objects
over 2,5 mm in diameter
(e.g. tools and wires)
Protected against solid foreign objects
over 1 mm in diameter
(e.g. small tools and wires)
Dust-protected
(no harmful deposits)
Totally protected against dust
No protection
Protected against vertically dripping
water (e.g. condensation)
Protected against dripping water
up to 15° from vertical
Protected against direct spray of water
up to 60° from vertical
Protected against direct spray of water
from all directions
Protected against jet of water from all
directions applied by spray lance
Protected against direct sprays of water
comparable to big waves
Protected against the effects
of immersion
Protected against long periods
of immersion under pressure
IP x_ : protection rating against solids
IP _xx : protection rating against liquids
IP 0_
IP 1_
IP 2_
IP 3_
IP 4_
IP 5_
IP 6_
IP _0
IP _1
IP _2
IP _3
IP _4
IP _5
IP _6
IP _7
IP _8
