0°-30°
358°
Code example:
X . AT30 A . HW 12
Create your Mood Evo:
Optical Compartment
+
Flange
+
Driver
Driver specifications: p.58-59
Accessories: p. 62/65
Photometric data:
www.reggiani.net
Notes:
*IP54: see “plate accessories”
section/vedi accessori piattelli
**LED (DT): only for medium,
wide and very wide beam optics
(B/E/H/M)/solo per ottiche con
fasci medi, larghi e molto larghi
(B/E/H/M)

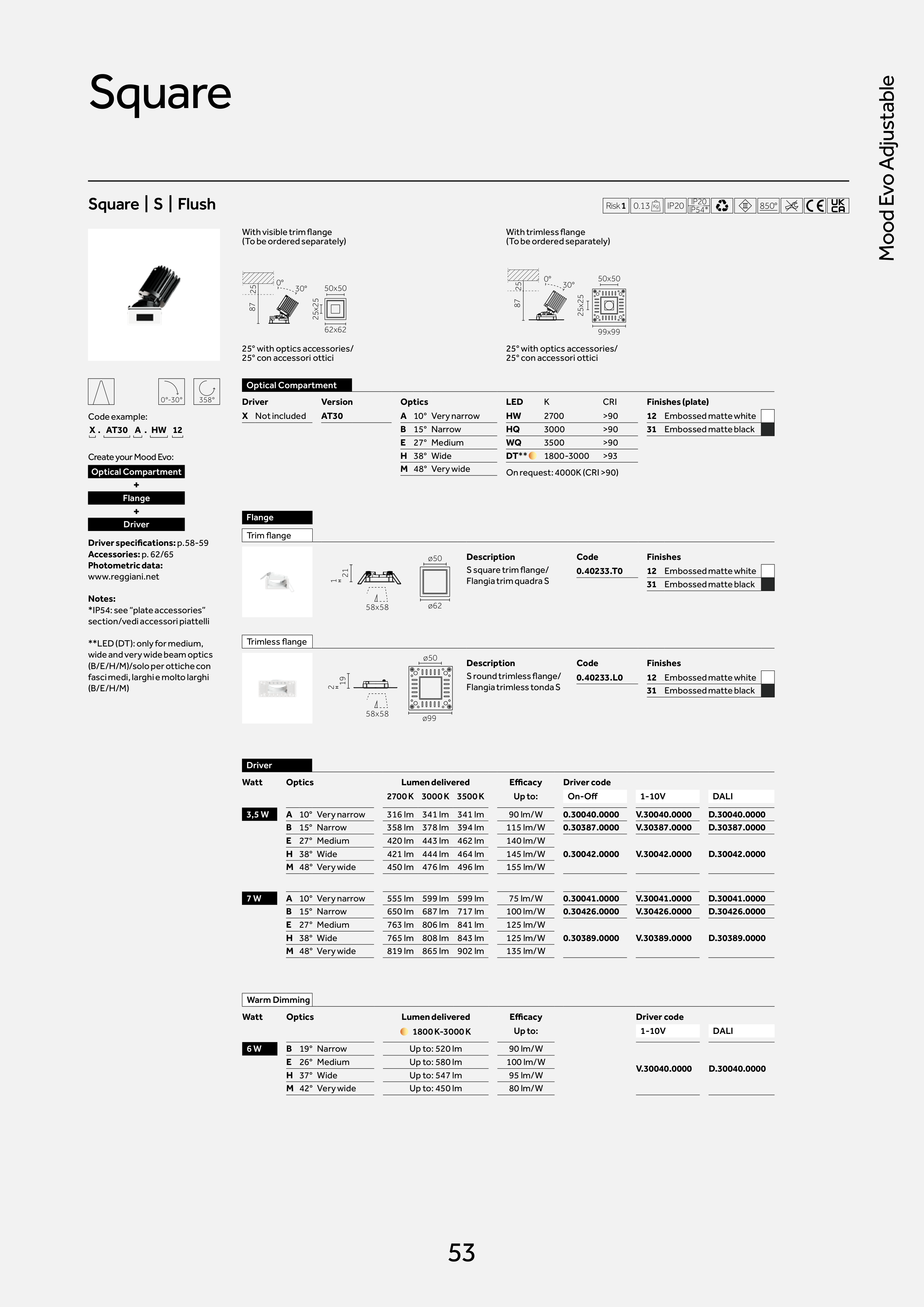

Square | S | Flush
Risk 1 0.13 Kg IP20
IP20
IP54*
850°
With visible trim flange
(To be ordered separately)
With trimless flange
(To be ordered separately)
25x25
87
62x62
50x50
0°
30°
25
25x25
87
99x99
50x50
0°
30°
25
Optical Compartment
Driver
Version
Optics
LED
K
CRI
Finishes (plate)
X Not included
AT30
A 10° Very narrow
HW
2700
>90
12
Embossed matte white
B
15° Narrow
HQ
3000
>90
31
Embossed matte black
E
27° Medium
WQ
3500
>90
H 38° Wide
DT**
1800-3000
>93
M 48° Very wide
On request: 4000K (CRI >90)
Flange
Trim flange
ø50
ø62
21
1
Description
Code
Finishes
S square trim flange/
Flangia trim quadra S
0.40233.T0
12
Embossed matte white
31
Embossed matte black
Trimless flange
ø50
ø99
19
2
Description
Code
Finishes
S round trimless flange/
Flangia trimless tonda S
0.40233.L0
12
Embossed matte white
31
Embossed matte black
58x58
58x58
25° with optics accessories/
25° con accessori ottici
25° with optics accessories/
25° con accessori ottici
Driver
Watt
Optics
Lumen delivered
Efficacy
Driver code
2700 K
3000 K
3500 K
Up to:
On-Off
1-10V
DALI
3,5 W
A 10° Very narrow
316 lm
341 lm
341 lm
90 lm/W
0.30040.0000
V.30040.0000
D.30040.0000
B
15° Narrow
358 lm
378 lm
394 lm
115 lm/W
0.30387.0000
V.30387.0000
D.30387.0000
E
27° Medium
420 lm
443 lm
462 lm
140 lm/W
0.30042.0000
V.30042.0000
D.30042.0000
H 38° Wide
421 lm
444 lm
464 lm
145 lm/W
M 48° Very wide
450 lm
476 lm
496 lm
155 lm/W
Warm Dimming
Watt
Optics
Lumen delivered
Efficacy
Driver code
1800 K-3000 K
Up to:
1-10V
DALI
6 W
B
19° Narrow
Up to: 520 lm
90 lm/W
V.30040.0000
D.30040.0000
E
26° Medium
Up to: 580 lm
100 lm/W
H 37° Wide
Up to: 547 lm
95 lm/W
M 42° Very wide
Up to: 450 lm
80 lm/W
7 W
A 10° Very narrow
555 lm
599 lm
599 lm
75 lm/W
0.30041.0000
V.30041.0000
D.30041.0000
B
15° Narrow
650 lm
687 lm
717 lm
100 lm/W
0.30426.0000
V.30426.0000
D.30426.0000
E
27° Medium
763 lm
806 lm
841 lm
125 lm/W
0.30389.0000
V.30389.0000
D.30389.0000
H 38° Wide
765 lm
808 lm
843 lm
125 lm/W
M 48° Very wide
819 lm
865 lm
902 lm
135 lm/W
Square
53
Mood Evo Adjustable
