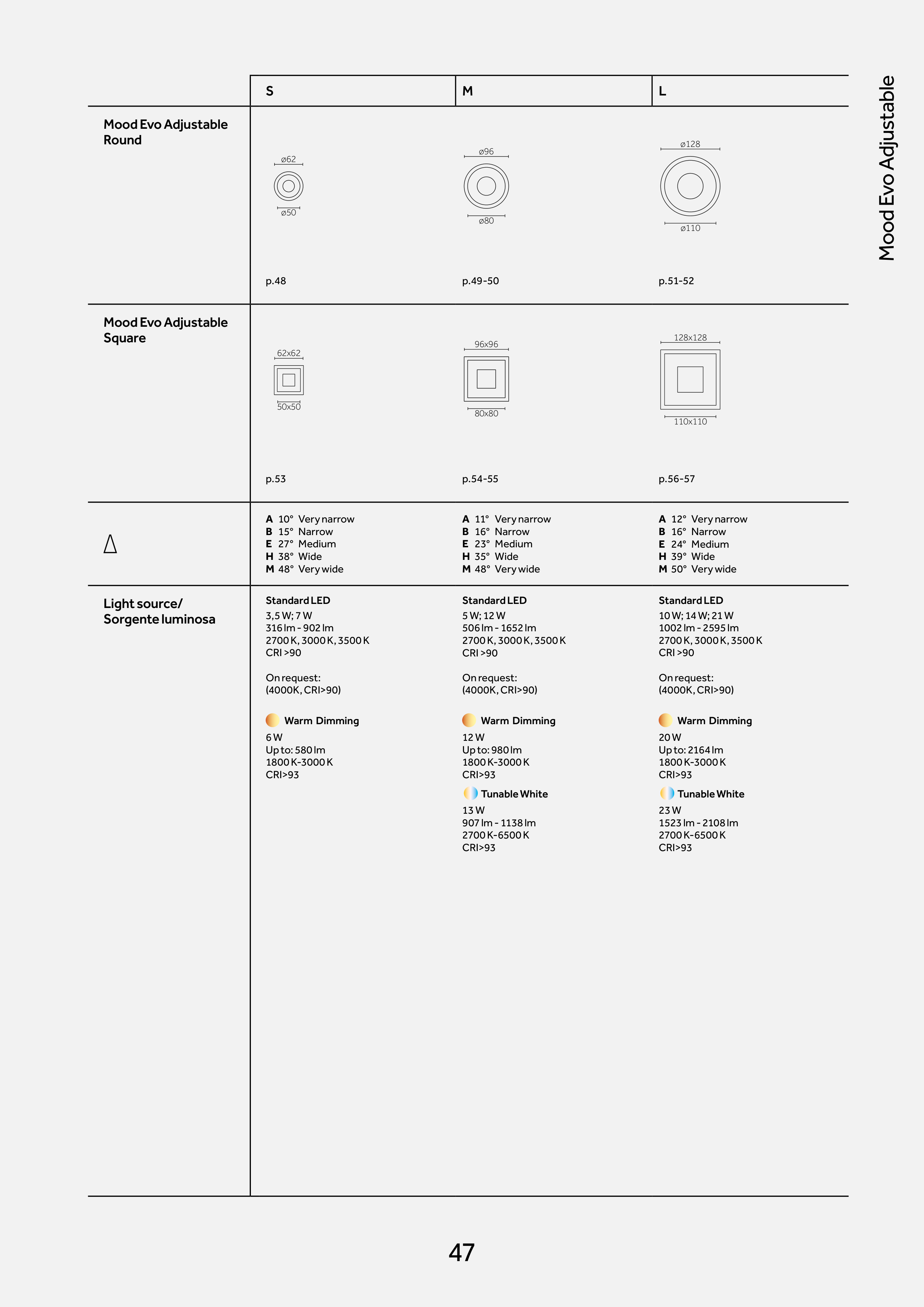

S
M
L
Mood Evo Adjustable
Round
ø50
ø62
ø80
ø96
ø110
ø128
p.48
p.49-50
p.51-52
Mood Evo Adjustable
Square
50x50
62x62
80x80
96x96
110x110
128x128
p.53
p.54-55
p.56-57
A 10° Very narrow
B 15° Narrow
E 27° Medium
H 38° Wide
M 48° Very wide
A 11° Very narrow
B 16° Narrow
E 23° Medium
H 35° Wide
M 48° Very wide
A 12° Very narrow
B 16° Narrow
E 24° Medium
H 39° Wide
M 50° Very wide
Light source/
Sorgente luminosa
Standard LED
3,5 W; 7 W
316 lm - 902 lm
2700 K, 3000 K, 3500 K
CRI >90
On request:
(4000K, CRI>90)
Warm Dimming
6 W
Up to: 580 lm
1800 K-3000 K
CRI>93
Standard LED
5 W; 12 W
506 lm - 1652 lm
2700 K, 3000 K, 3500 K
CRI >90
On request:
(4000K, CRI>90)
Warm Dimming
12 W
Up to: 980 lm
1800 K-3000 K
CRI>93
Tunable White
13 W
907 lm - 1138 lm
2700 K-6500 K
CRI>93
Standard LED
10 W; 14 W; 21 W
1002 lm - 2595 lm
2700 K, 3000 K, 3500 K
CRI >90
On request:
(4000K, CRI>90)
Warm Dimming
20 W
Up to: 2164 lm
1800 K-3000 K
CRI>93
Tunable White
23 W
1523 lm - 2108 lm
2700 K-6500 K
CRI>93
Mood Evo Adjustable
47
