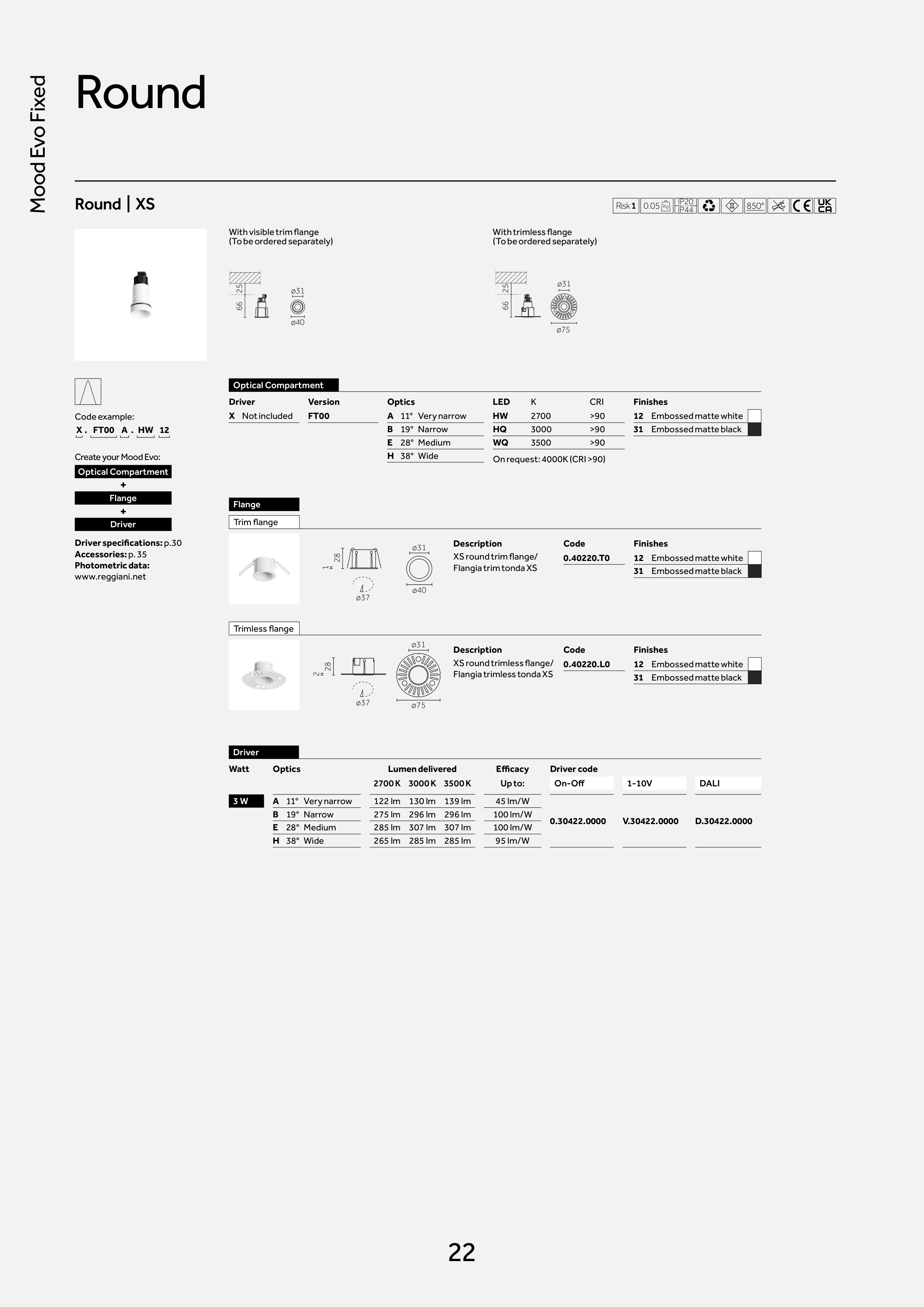

Round
Code example:
X . FT00 A . HW 12
Create your Mood Evo:
Optical Compartment
+
Flange
+
Driver
Driver specifications: p.30
Accessories: p. 35
Photometric data:
www.reggiani.net
Flange
Trim flange
ø31
ø40
28
1
Description
Code
Finishes
XS round trim flange/
Flangia trim tonda XS
0.40220.T0
12
Embossed matte white
31
Embossed matte black
Trimless flange
ø31
ø75
28
2
Description
Code
Finishes
XS round trimless flange/
Flangia trimless tonda XS
0.40220.L0
12
Embossed matte white
31
Embossed matte black
Driver
Watt
Optics
Lumen delivered
Efficacy
Driver code
2700 K
3000 K
3500 K
Up to:
On-Off
1-10V
DALI
3 W
A 11° Very narrow
122 lm
130 lm
139 lm
45 lm/W
0.30422.0000
V.30422.0000
D.30422.0000
B
19° Narrow
275 lm
296 lm
296 lm
100 lm/W
E
28° Medium
285 lm
307 lm
307 lm
100 lm/W
H 38° Wide
265 lm
285 lm
285 lm
95 lm/W
Round | XS
Risk 1 0.05 Kg
IP20
IP44
850°
With visible trim flange
(To be ordered separately)
With trimless flange
(To be ordered separately)
ø31
ø40
66
25
ø31
ø75
66
25
Optical Compartment
Driver
Version
Optics
LED
K
CRI
Finishes
X Not included
FT00
A 11° Very narrow
HW
2700
>90
12
Embossed matte white
B
19° Narrow
HQ
3000
>90
31
Embossed matte black
E
28° Medium
WQ
3500
>90
H 38° Wide
On request: 4000K (CRI >90)
ø37
ø37
22
Mood Evo Fixed
