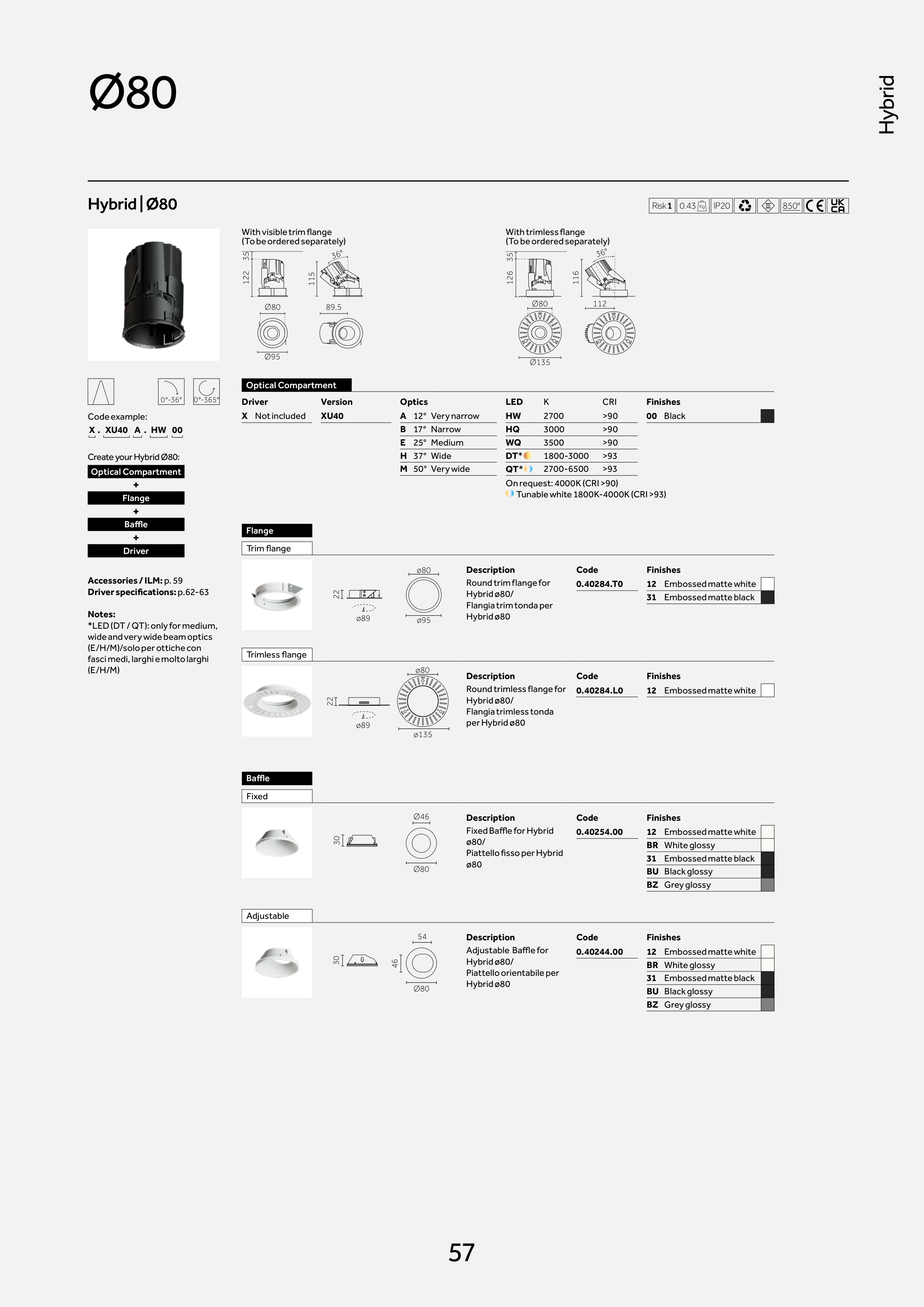

Ø80
Hybrid | Ø80
Risk 1 0.43 Kg IP20
850°
With visible trim flange
(To be ordered separately)
With trimless flange
(To be ordered separately)
122
35
115
Ø80
89,5
Ø95
36°
126
116
35
Ø80
112
Ø135
36°
0°-36°
0°-365°
Code example:
X . XU40 A . HW 00
Create your Hybrid Ø80:
Optical Compartment
+
Flange
+
Baffle
+
Driver
Accessories / ILM: p. 59
Driver specifications: p.62-63
Notes:
*LED (DT / QT): only for medium,
wide and very wide beam optics
(E/H/M)/solo per ottiche con
fasci medi, larghi e molto larghi
(E/H/M)
Optical Compartment
Driver
Version
Optics
LED
K
CRI
Finishes
X Not included
XU40
A 12° Very narrow
HW
2700
>90
00 Black
B
17° Narrow
HQ
3000
>90
E
25° Medium
WQ
3500
>90
H 37° Wide
DT*
1800-3000
>93
M 50° Very wide
QT*
2700-6500
>93
On request: 4000K (CRI >90)
Tunable white 1800K-4000K (CRI >93)
Flange
Trim flange
ø80
ø95
22
ø89
Description
Code
Finishes
Round trim flange for
Hybrid ø80/
Flangia trim tonda per
Hybrid ø80
0.40284.T0
12
Embossed matte white
31
Embossed matte black
Trimless flange
22
ø80
ø135
ø89
Description
Code
Finishes
Round trimless flange for
Hybrid ø80/
Flangia trimless tonda
per Hybrid ø80
0.40284.L0
12
Embossed matte white
Baffle
Fixed
30
Ø46
Ø80
Description
Code
Finishes
Fixed Baffle for Hybrid
ø80/
Piattello fisso per Hybrid
ø80
0.40254.00
12
Embossed matte white
BR White glossy
31
Embossed matte black
BU Black glossy
BZ Grey glossy
Adjustable
54
Ø80
46
30
Description
Code
Finishes
Adjustable Baffle for
Hybrid ø80/
Piattello orientabile per
Hybrid ø80
0.40244.00
12
Embossed matte white
BR White glossy
31
Embossed matte black
BU Black glossy
BZ Grey glossy
57
Hybrid
