32 | puk.it

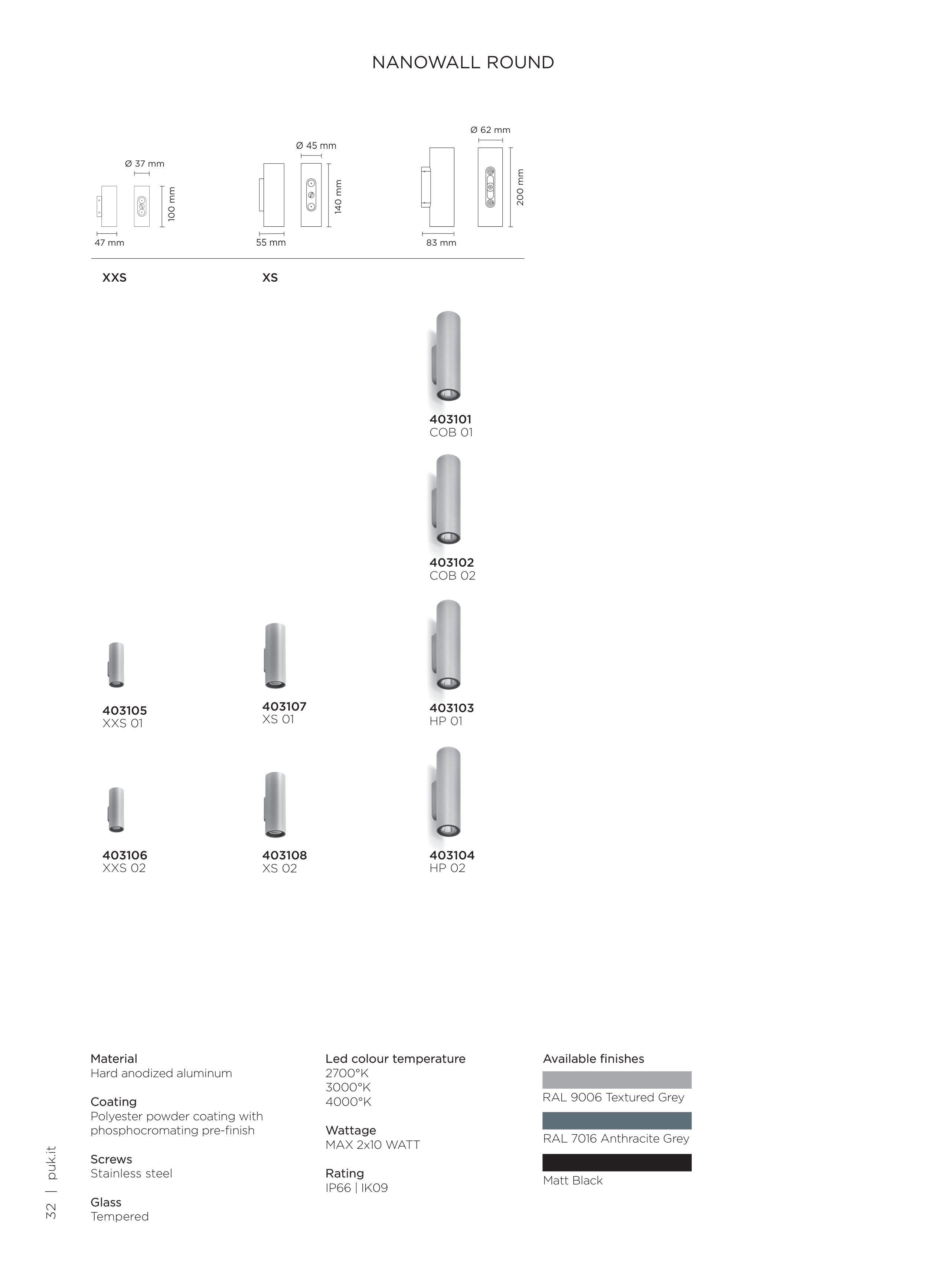

NANOWALL ROUND
Material
Material
Hard anodized aluminum
Coating
Coating
Polyester powder coating with
phosphocromating pre-finish
Screws
Screws
Stainless steel
Glass
Glass
Tempered
Led colour temperature
Led colour temperature
2700°K
3000°K
4000°K
Wattage
Wattage
MAX 2x10 WATT
Rating
Rating
IP66 | IK09
403105
XXS 01
403106
XXS 02
403107
XS 01
403108
XS 02
403101
COB 01
403102
COB 02
403103
HP 01
403104
HP 02
XXS
XS
47 mm
55 mm
83 mm
Ø 37 mm
Ø 45 mm
Ø 62 mm
100 mm
140 mm
200 mm
RAL 9006 Textured Grey
RAL 7016 Anthracite Grey
Available finishes
Available finishes
Matt Black
