puk.it | 655
807015

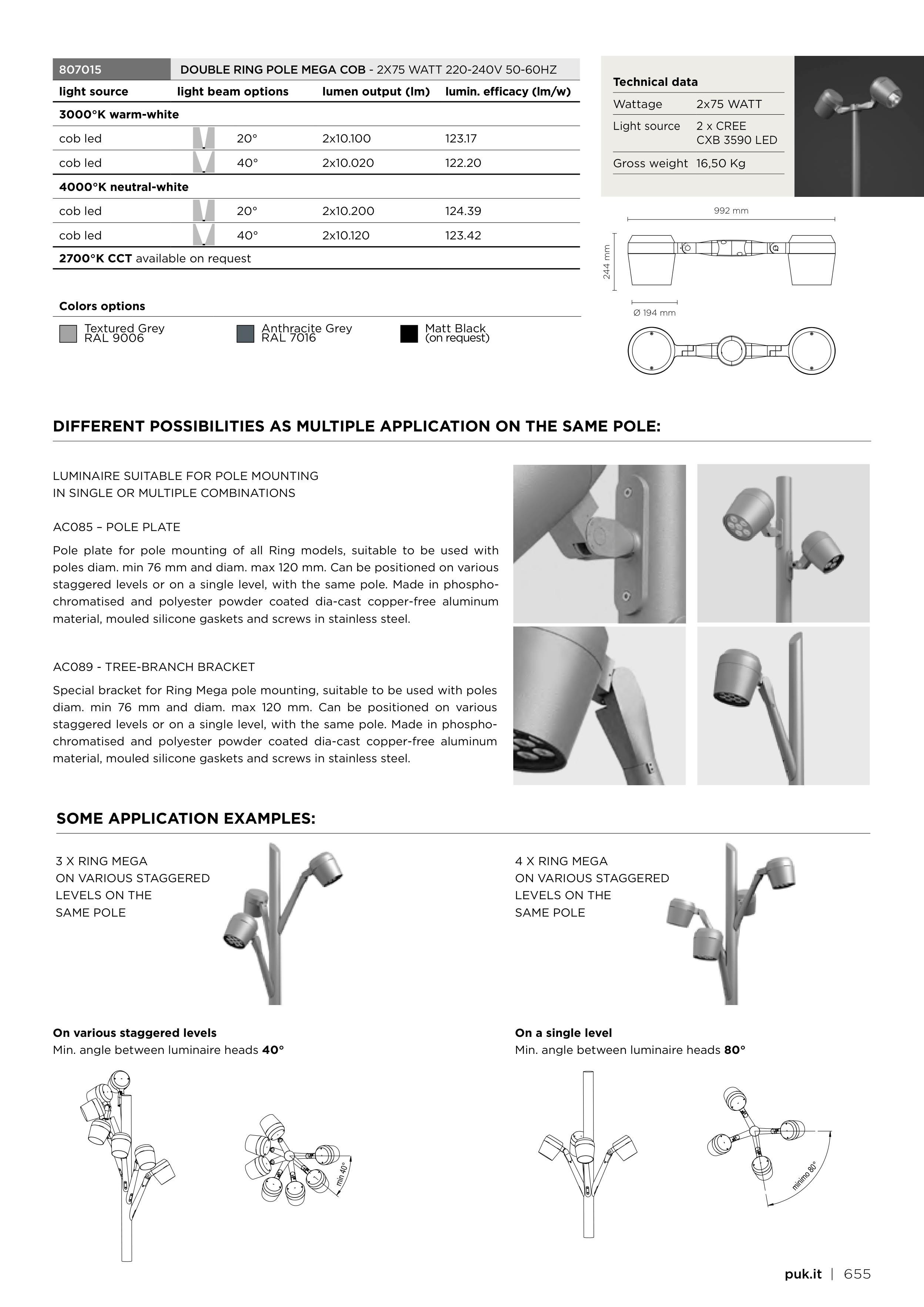

DOUBLE RING POLE MEGA COB - 2X75 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
cob led
20°
2x10.100
123.17
cob led
40°
2x10.020
122.20
4000°K neutral-white
cob led
20°
2x10.200
124.39
cob led
40°
2x10.120
123.42
2700°K CCT available on request
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
Technical data
Wattage
2x75 WATT
Light source
2 x CREE
CXB 3590 LED
Gross weight 16,50 Kg
244 mm
Ø 194 mm
992 mm
DIFFERENT POSSIBILITIES AS MULTIPLE APPLICATION ON THE SAME POLE:
AC089 - TREE-BRANCH BRACKET
Special bracket for Ring Mega pole mounting, suitable to be used with poles
diam. min 76 mm and diam. max 120 mm. Can be positioned on various
staggered levels or on a single level, with the same pole. Made in phospho-
chromatised and polyester powder coated dia-cast copper-free aluminum
material, mouled silicone gaskets and screws in stainless steel.
LUMINAIRE SUITABLE FOR POLE MOUNTING
IN SINGLE OR MULTIPLE COMBINATIONS
AC085 – POLE PLATE
Pole plate for pole mounting of all Ring models, suitable to be used with
poles diam. min 76 mm and diam. max 120 mm. Can be positioned on various
staggered levels or on a single level, with the same pole. Made in phospho-
chromatised and polyester powder coated dia-cast copper-free aluminum
material, mouled silicone gaskets and screws in stainless steel.
On various staggered levels
Min. angle between luminaire heads 40°
min 40°
min 40°
On a single level
Min. angle between luminaire heads 80°
minimo 80°
minimo 80°
SOME APPLICATION EXAMPLES:
3 X RING MEGA
ON VARIOUS STAGGERED
LEVELS ON THE
SAME POLE
4 X RING MEGA
ON VARIOUS STAGGERED
LEVELS ON THE
SAME POLE
