Technical data
Wattage
70 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
80 x Lumileds
Luxeon DS207 LED
Screws
Stainless steel
Diffuser
Polycarbonate
Power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Cable gland
M20 cable gland
Power cable
5 mt. power cable included
Gross weight
9,00 Kg

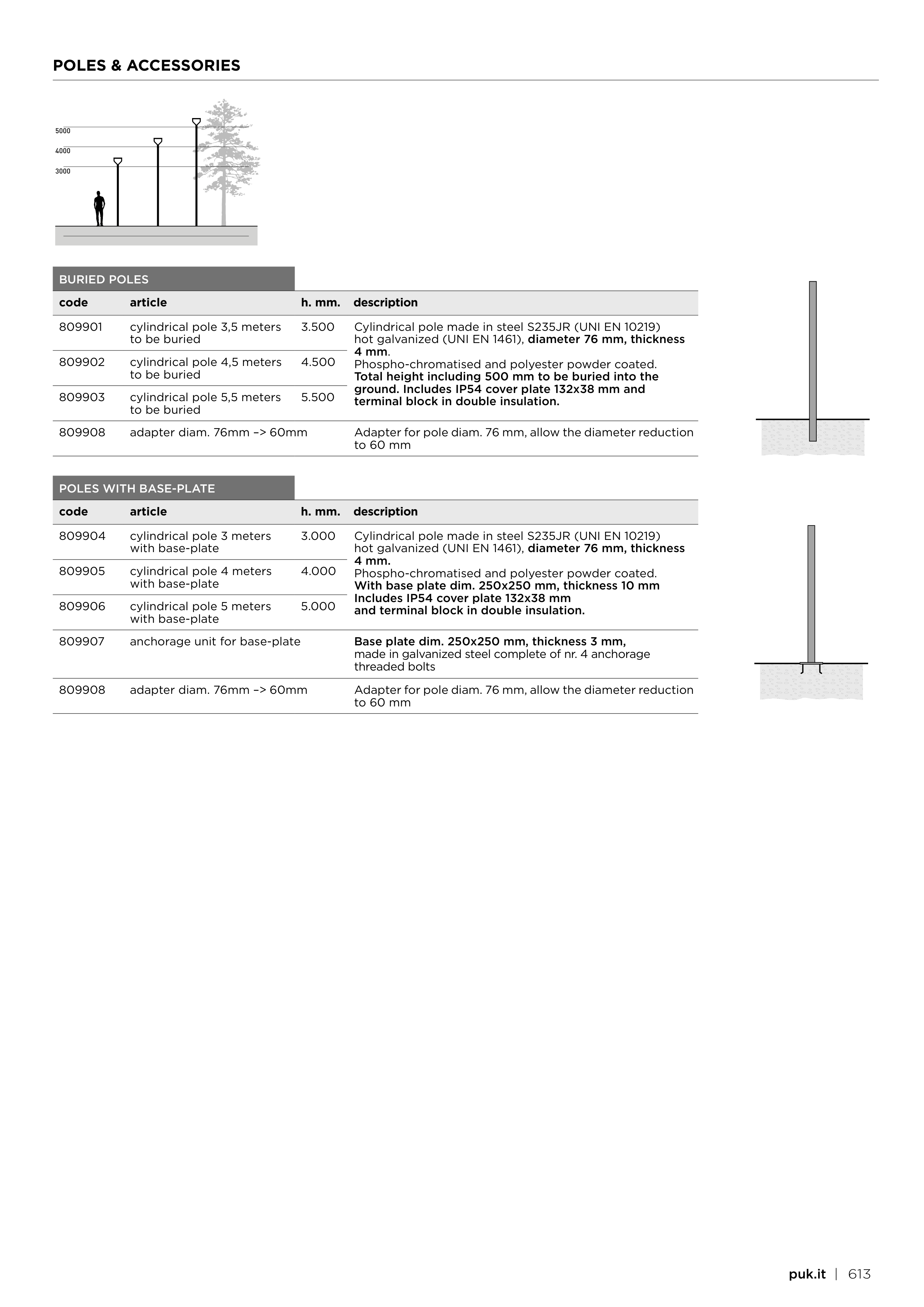

POLES & ACCESSORIES
BURIED POLES
code
article
h. mm.
description
809901
cylindrical pole 3,5 meters
to be buried
3.500
Cylindrical pole made in steel S235JR (UNI EN 10219)
hot galvanized (UNI EN 1461), diameter 76 mm, thickness
4 mm.
Phospho-chromatised and polyester powder coated.
Total height including 500 mm to be buried into the
ground. Includes IP54 cover plate 132x38 mm and
terminal block in double insulation.
809902
cylindrical pole 4,5 meters
to be buried
4.500
809903
cylindrical pole 5,5 meters
to be buried
5.500
809908
adapter diam. 76mm –> 60mm
Adapter for pole diam. 76 mm, allow the diameter reduction
to 60 mm
POLES WITH BASE-PLATE
code
article
h. mm.
description
809904
cylindrical pole 3 meters
with base-plate
3.000
Cylindrical pole made in steel S235JR (UNI EN 10219)
hot galvanized (UNI EN 1461), diameter 76 mm, thickness
4 mm.
Phospho-chromatised and polyester powder coated.
With base plate dim. 250x250 mm, thickness 10 mm
Includes IP54 cover plate 132x38 mm
and terminal block in double insulation.
809905
cylindrical pole 4 meters
with base-plate
4.000
809906
cylindrical pole 5 meters
with base-plate
5.000
809907
anchorage unit for base-plate
Base plate dim. 250x250 mm, thickness 3 mm,
made in galvanized steel complete of nr. 4 anchorage
threaded bolts
809908
adapter diam. 76mm –> 60mm
Adapter for pole diam. 76 mm, allow the diameter reduction
to 60 mm
3000
4000
5000
