Technical data
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
extruded copper-free
aluminum
Coating
anodizing treatment +
protective powder coating
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
PG9 cable gland
Power cable
1 mt. neoprene power cable
included, in & out cable for
loop-in loop-out connection
available on request

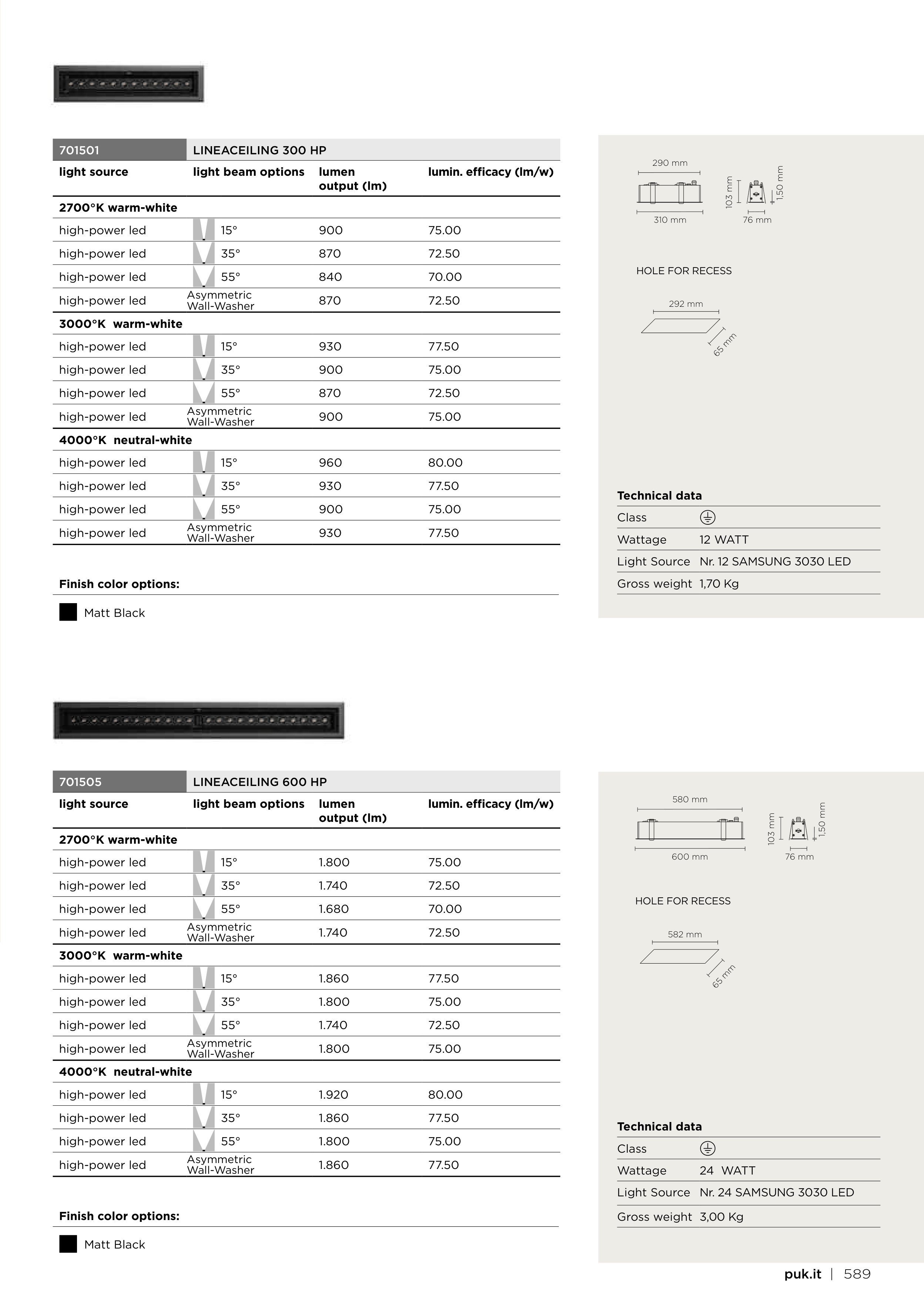

701501
LINEACEILING 300 HP
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700°K warm-white
high-power led
15°
900
75.00
high-power led
35°
870
72.50
high-power led
55°
840
70.00
high-power led
Asymmetric
Wall-Washer
870
72.50
3000°K warm-white
high-power led
15°
930
77.50
high-power led
35°
900
75.00
high-power led
55°
870
72.50
high-power led
Asymmetric
Wall-Washer
900
75.00
4000°K neutral-white
high-power led
15°
960
80.00
high-power led
35°
930
77.50
high-power led
55°
900
75.00
high-power led
Asymmetric
Wall-Washer
930
77.50
Finish color options:
Matt Black
701505
LINEACEILING 600 HP
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700°K warm-white
high-power led
15°
1.800
75.00
high-power led
35°
1.740
72.50
high-power led
55°
1.680
70.00
high-power led
Asymmetric
Wall-Washer
1.740
72.50
3000°K warm-white
high-power led
15°
1.860
77.50
high-power led
35°
1.800
75.00
high-power led
55°
1.740
72.50
high-power led
Asymmetric
Wall-Washer
1.800
75.00
4000°K neutral-white
high-power led
15°
1.920
80.00
high-power led
35°
1.860
77.50
high-power led
55°
1.800
75.00
high-power led
Asymmetric
Wall-Washer
1.860
77.50
Finish color options:
Matt Black
310 mm
76 mm
290 mm
103 mm
1,50 mm
Technical data
Class
Wattage
12 WATT
Light Source Nr. 12 SAMSUNG 3030 LED
Gross weight 1,70 Kg
Technical data
Class
Wattage
24 WATT
Light Source Nr. 24 SAMSUNG 3030 LED
Gross weight 3,00 Kg
600 mm
76 mm
580 mm
103 mm
1,50 mm
292 mm
HOLE FOR RECESS
65 mm
582 mm
HOLE FOR RECESS
65 mm
