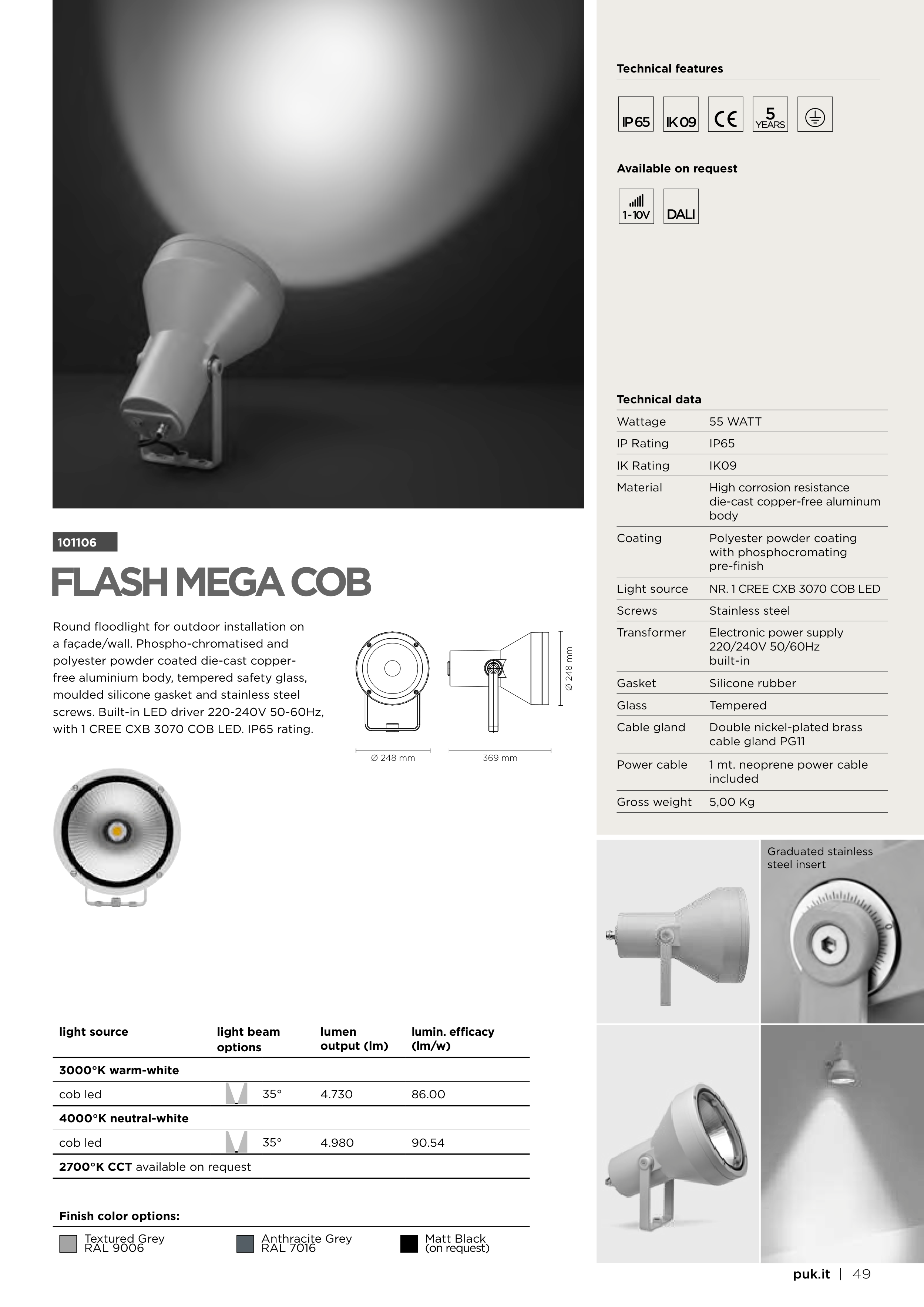

Round floodlight for outdoor installation on
a façade/wall. Phospho-chromatised and
polyester powder coated die-cast copper-
free aluminium body, tempered safety glass,
moulded silicone gasket and stainless steel
screws. Built-in LED driver 220-240V 50-60Hz,
with 1 CREE CXB 3070 COB LED. IP65 rating.
FLASH MEGA COB
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
101106
Technical data
Wattage
55 WATT
IP Rating
IP65
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free aluminum
body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
NR. 1 CREE CXB 3070 COB LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
Double nickel-plated brass
cable gland PG11
Power cable
1 mt. neoprene power cable
included
Gross weight
5,00 Kg
Ø 248 mm
369 mm
Ø 248 mm
Graduated stainless
steel insert
Technical features
5
Technical data
Wattage
22 WATT
IP Rating
IP65
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
NR. 15 CREE “XP-G2” LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
Double nickel-plated brass
cable gland PG11
Power cable
1 mt. neoprene power
cable included
Gross weight
5,00 Kg
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
35°
4.730
86.00
4000°K neutral-white
cob led
35°
4.980
90.54
2700°K CCT available on request
DALI
1 - 10V
Available on request
