Technical data
Wattage
MAX 10 WATT
IP Rating
IP68
IK Rating
IK08
Material
Hard anodized aluminum
body and trim
Coating
Polyester powder coating
with phosphocromating pre-
finish
IK Rating
1 x CREE XHP35 LED
Screws
Stainless steel
Remote
driver
Constant current max
700mA
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M12
Power cable
0.3 mt. power cable
included
Gross weight
1,30 Kg

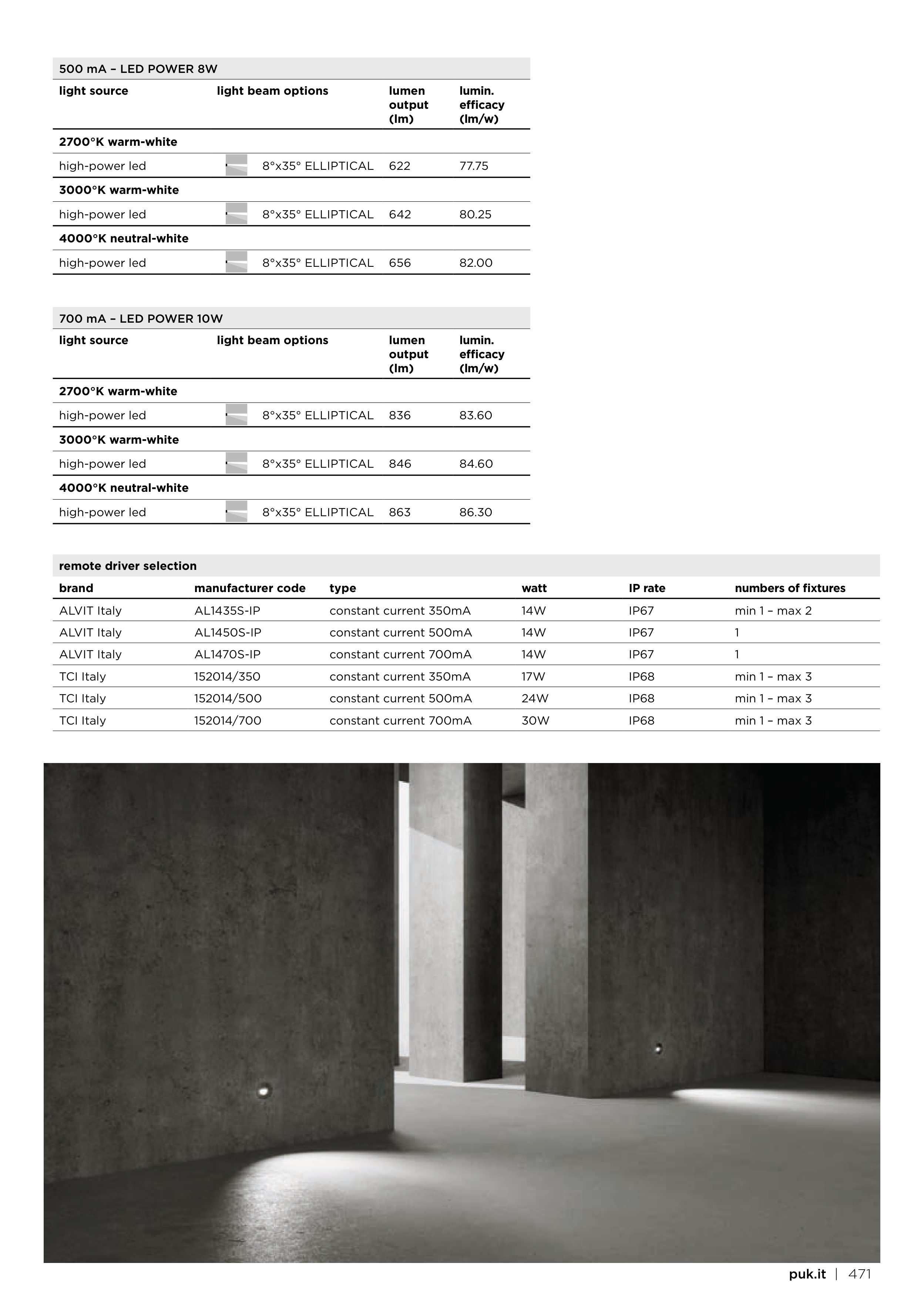

500 mA – LED POWER 8W
light source
light beam options
lumen
output
(lm)
lumin.
efficacy
(lm/w)
2700°K warm-white
high-power led
8°x35° ELLIPTICAL
622
77.75
3000°K warm-white
high-power led
8°x35° ELLIPTICAL
642
80.25
4000°K neutral-white
high-power led
8°x35° ELLIPTICAL
656
82.00
700 mA – LED POWER 10W
light source
light beam options
lumen
output
(lm)
lumin.
efficacy
(lm/w)
2700°K warm-white
high-power led
8°x35° ELLIPTICAL
836
83.60
3000°K warm-white
high-power led
8°x35° ELLIPTICAL
846
84.60
4000°K neutral-white
high-power led
8°x35° ELLIPTICAL
863
86.30
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
ALVIT Italy
AL1435S-IP
constant current 350mA
14W
IP67
min 1 – max 2
ALVIT Italy
AL1450S-IP
constant current 500mA
14W
IP67
1
ALVIT Italy
AL1470S-IP
constant current 700mA
14W
IP67
1
TCI Italy
152014/350
constant current 350mA
17W
IP68
min 1 – max 3
TCI Italy
152014/500
constant current 500mA
24W
IP68
min 1 – max 3
TCI Italy
152014/700
constant current 700mA
30W
IP68
min 1 – max 3
