puk.it | 435
Technical data
IP Rating
IP67
IK Rating
IK08
Material
high corrosion resistance
extruded copper-free
aluminum
Coating
anodizing treatment +
protective powder coating
Screws
Stainless steel
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. neoprene power cable
included
DMX cable
DMX in & DMX
out cables included
Technical data
Class
Wattage
10 WATT
Light Source Nr. 12 TUNABLE WHITE 3535
LED
Transformer
Constant voltage 24V DC
remote driver needed
Gross weight 1,70 Kg
403303

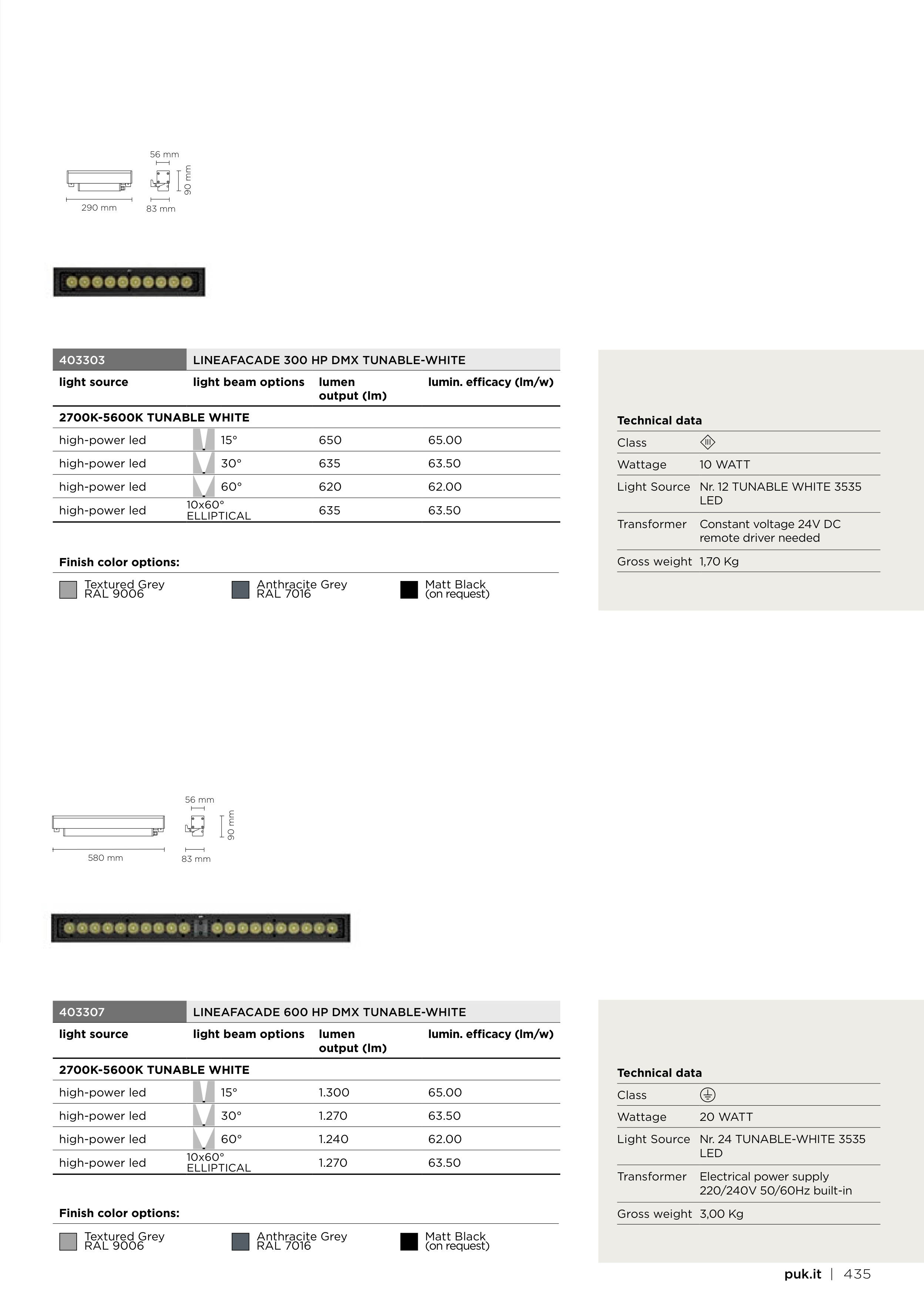

LINEAFACADE 300 HP DMX TUNABLE-WHITE
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700K-5600K TUNABLE WHITE
high-power led
15°
650
65.00
high-power led
30°
635
63.50
high-power led
60°
620
62.00
high-power led
10x60°
ELLIPTICAL
635
63.50
Technical data
Class
Wattage
20 WATT
Light Source Nr. 24 TUNABLE-WHITE 3535
LED
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gross weight 3,00 Kg
403307
LINEAFACADE 600 HP DMX TUNABLE-WHITE
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700K-5600K TUNABLE WHITE
high-power led
15°
1.300
65.00
high-power led
30°
1.270
63.50
high-power led
60°
1.240
62.00
high-power led
10x60°
ELLIPTICAL
1.270
63.50
cambiare
Finish color options:
Finish color options:
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
290 mm
90 mm
83 mm
56 mm
580 mm
90 mm
83 mm
56 mm
