36 | puk.it
Floodlight for outdoor installation on a
façade/wall, with U shape fixing bracket
allowing vertical adjustment of +90° / -40°.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base
and head, tempered safety glass, moulded
silicone gaskets, with screws in stainless steel.
Built-in LED driver, with 1 COB CREE
“CXB 2540” LED. IP66 rating.

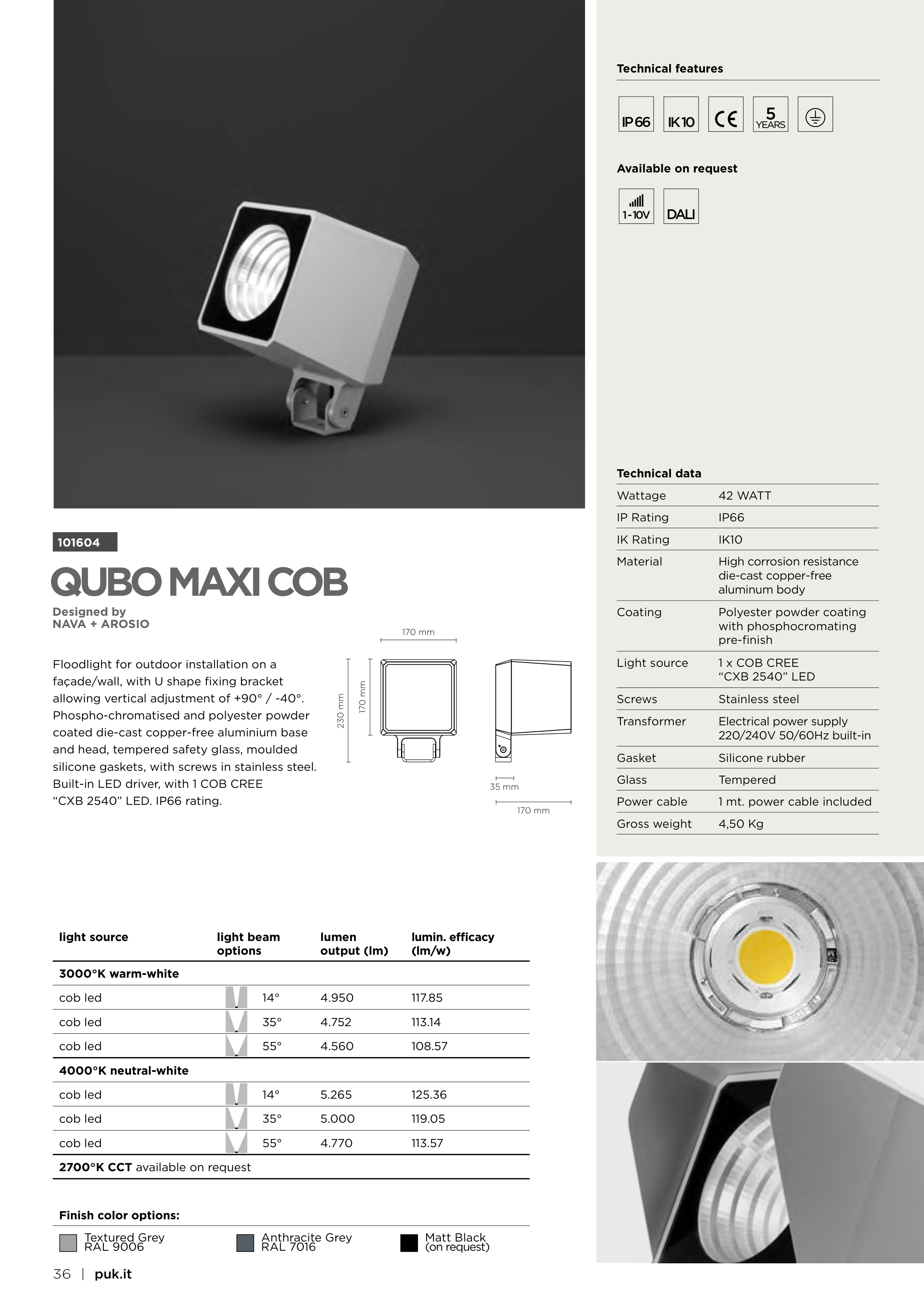

QUBO MAXI COB
101604
Technical features
5
Technical data
Wattage
42 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x COB CREE
“CXB 2540” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
4,50 Kg
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
14°
4.950
117.85
cob led
35°
4.752
113.14
cob led
55°
4.560
108.57
4000°K neutral-white
cob led
14°
5.265
125.36
cob led
35°
5.000
119.05
cob led
55°
4.770
113.57
2700°K CCT available on request
Designed by
NAVA + AROSIO
170 mm
170 mm
230 mm
170 mm
35 mm
DALI
1 - 10V
Available on request
