316 | puk.it
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
Meanwell
LPV-20-24
constant voltage 24V DC
20W
IP67
min 1 - max 3
Meanwell
LPV-35-24
constant voltage 24V DC
35W
IP67
min 1 - max 6
DMX ACCESSORIES
CONTROLLERS, SPLITTERS, ETC…
To be defined together with puk technical department, according to project specifications and after providing installation details.
Surface mounted luminaire for outdoor installation on
window sill, with asymmetric 8°x170° “window-washer”
light distribution. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium body,
polycarbonate diffuser, moulded silicone gasket and
stainless steel screws. Remote 24V DC power supply
needed, DMX driver integrated; with 1 x CREE “XML”
RGBW LED. IP65 rating.

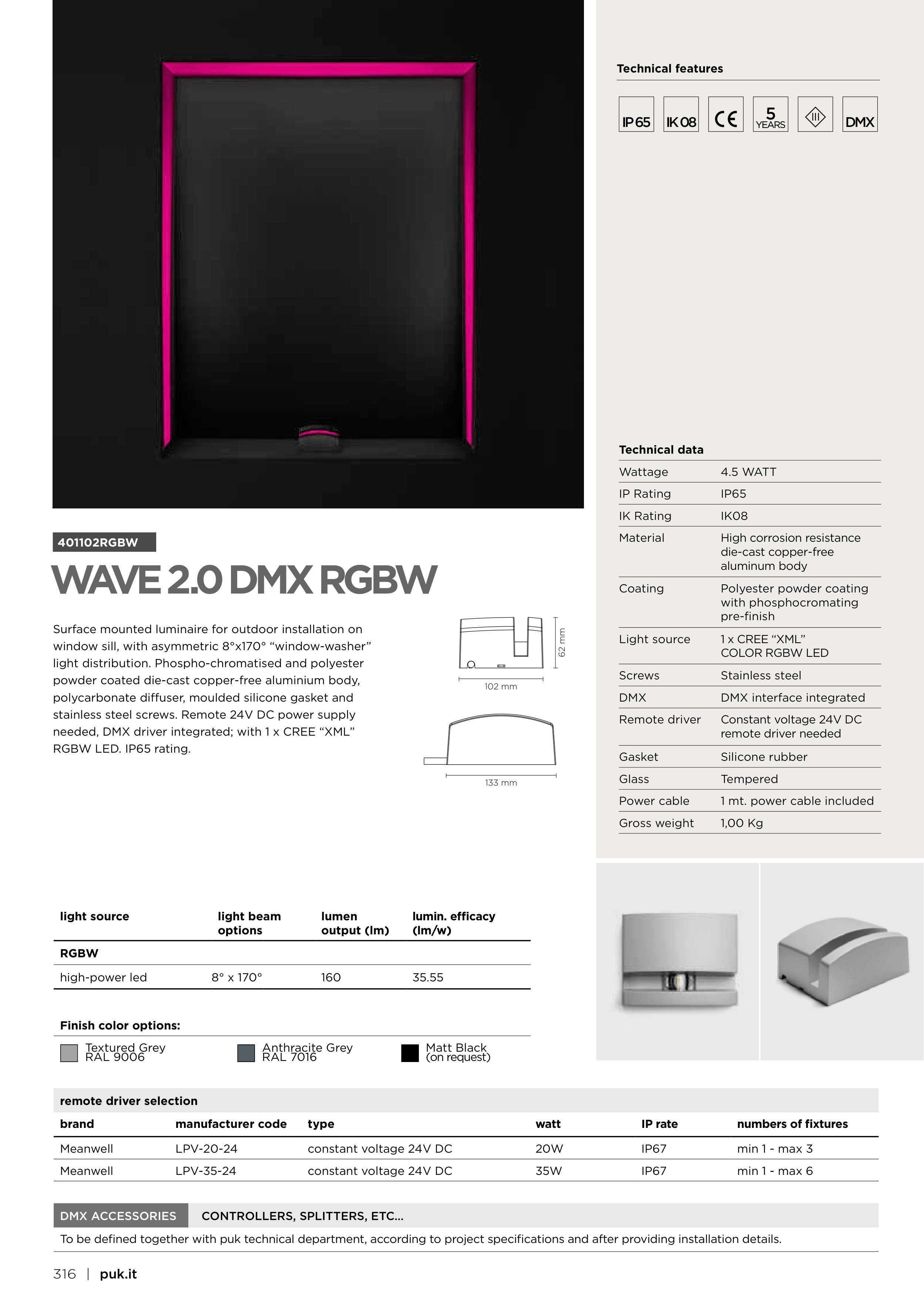

WAVE 2.0 DMX RGBW
401102RGBW
Technical data
Wattage
4.5 WATT
IP Rating
IP65
IK Rating
IK08
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE “XML”
COLOR RGBW LED
Screws
Stainless steel
DMX
DMX interface integrated
Remote driver
Constant voltage 24V DC
remote driver needed
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
1,00 Kg
Technical features
5
DMX
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
RGBW
high-power led
8° x 170°
160
35.55
62 mm
102 mm
133 mm
