Floodlight for outdoor installation on a façade/
wall, with U shape fixing bracket allowing vertical
adjustment of +90° / -40°. Phospho-chromatised
and polyester powder coated die-cast copper-free
aluminium base and head, tempered safety glass,
moulded silicone gaskets, with screws in stainless
steel. Remote 24V DC power supply needed, DMX
driver integrated; with 1 x CREE “XML” RGBW LED.
IP66 rating.

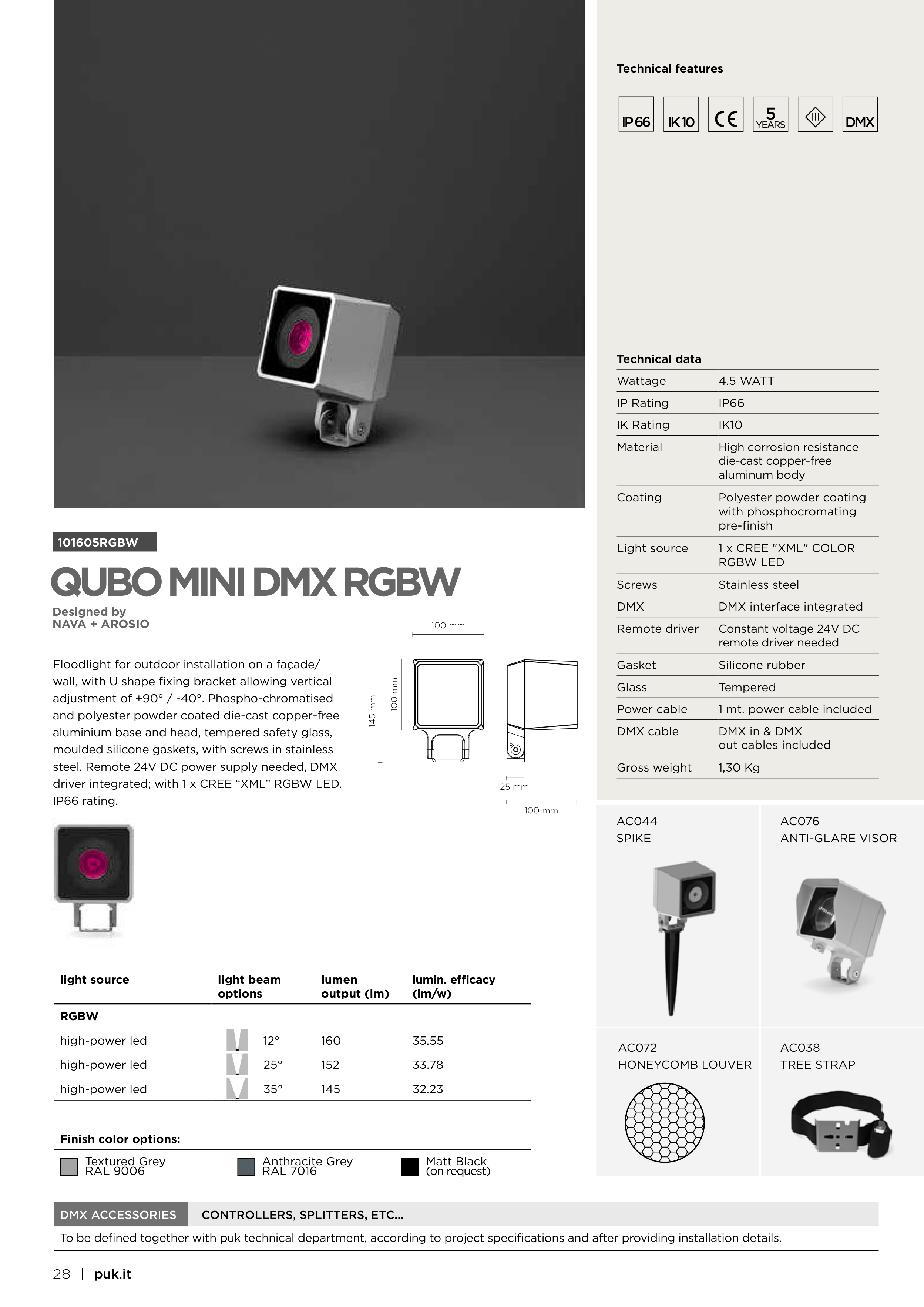

QUBO MINI DMX RGBW
101605RGBW
Technical features
5
DMX
Technical data
Wattage
4.5 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE "XML" COLOR
RGBW LED
Screws
Stainless steel
DMX
DMX interface integrated
Remote driver
Constant voltage 24V DC
remote driver needed
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
DMX cable
DMX in & DMX
out cables included
Gross weight
1,30 Kg
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
RGBW
high-power led
12°
160
35.55
high-power led
25°
152
33.78
high-power led
35°
145
32.23
DMX ACCESSORIES
CONTROLLERS, SPLITTERS, ETC…
To be defined together with puk technical department, according to project specifications and after providing installation details.
AC044
SPIKE
AC072
HONEYCOMB LOUVER
AC038
TREE STRAP
AC076
ANTI-GLARE VISOR
Designed by
NAVA + AROSIO
100 mm
100 mm
145 mm
100 mm
25 mm
