218 | puk.it
Technical features

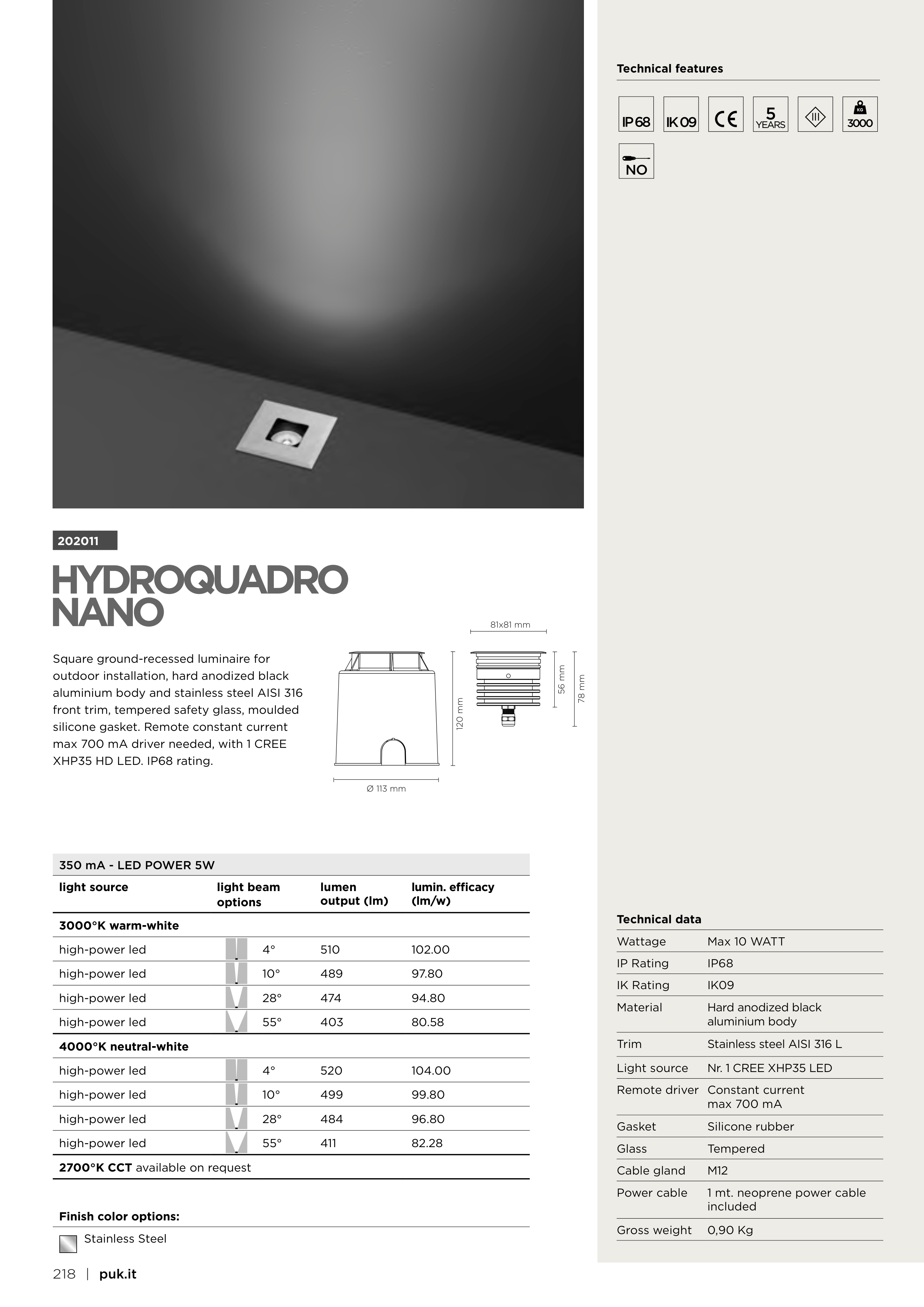

Square ground-recessed luminaire for
outdoor installation, hard anodized black
aluminium body and stainless steel AISI 316
front trim, tempered safety glass, moulded
silicone gasket. Remote constant current
max 700 mA driver needed, with 1 CREE
XHP35 HD LED. IP68 rating.
202011
Finish color options:
Stainless Steel
HYDROQUADRO
NANO
5
NO
3000
Technical data
Wattage
Max 10 WATT
IP Rating
IP68
IK Rating
IK09
Material
Hard anodized black
aluminium body
Trim
Stainless steel AISI 316 L
Light source
Nr. 1 CREE XHP35 LED
Remote driver Constant current
max 700 mA
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M12
Power cable
1 mt. neoprene power cable
included
Gross weight
0,90 Kg
350 mA - LED POWER 5W
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
4°
510
102.00
high-power led
10°
489
97.80
high-power led
28°
474
94.80
high-power led
55°
403
80.58
4000°K neutral-white
high-power led
4°
520
104.00
high-power led
10°
499
99.80
high-power led
28°
484
96.80
high-power led
55°
411
82.28
2700°K CCT available on request
81x81 mm
78 mm
56 mm
120 mm
Ø 113 mm
