190 | puk.it
Technical data
Wattage
9 WATT
IP Rating
IP67
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum
Trim
High corrosion resistance
die-cast copper-free
aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
NR. 1 CREE XHP35 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Diffuser
Polycarbonate
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
2,00 Kg
Technical features
5
5000

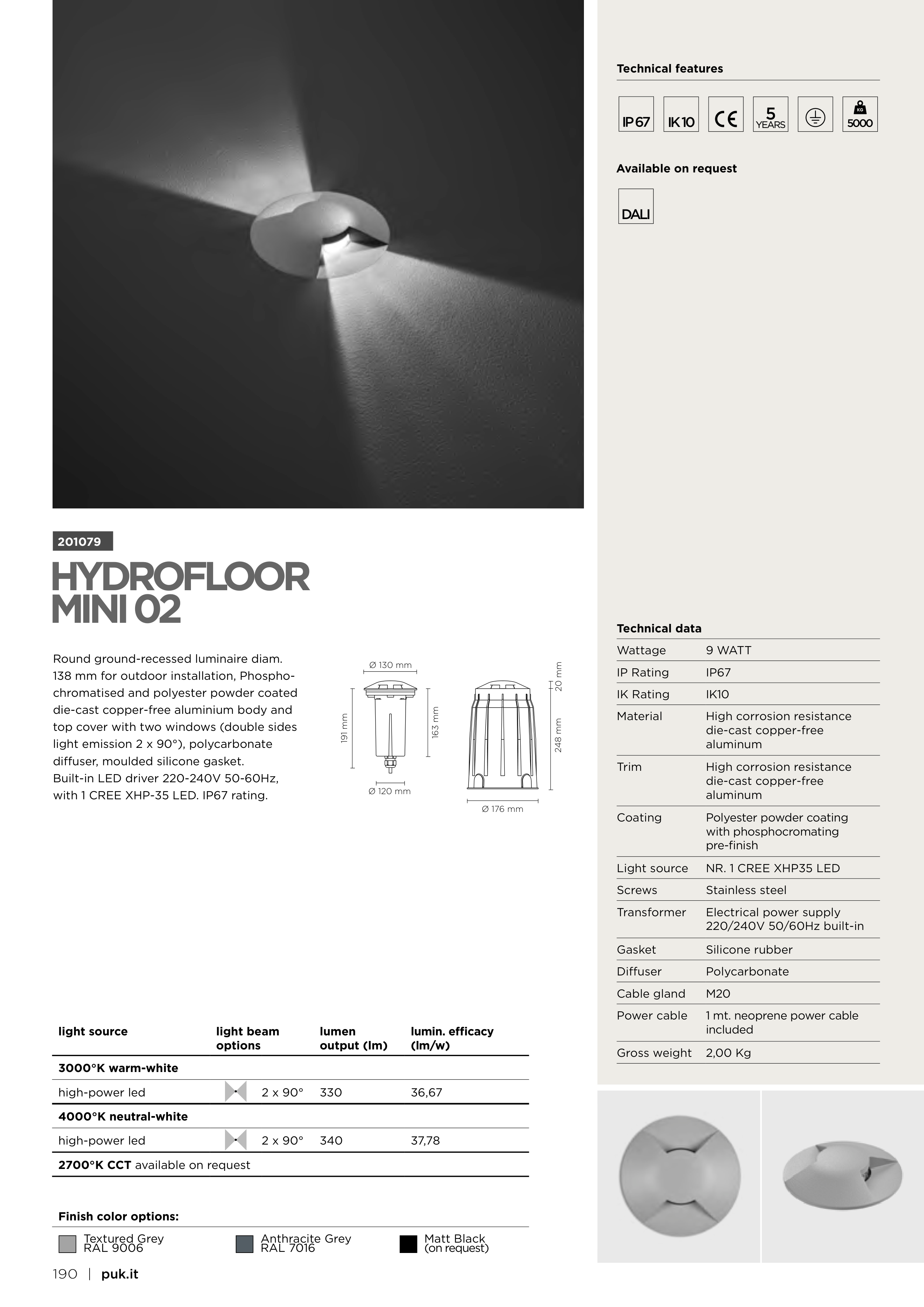

Round ground-recessed luminaire diam.
138 mm for outdoor installation, Phospho-
chromatised and polyester powder coated
die-cast copper-free aluminium body and
top cover with two windows (double sides
light emission 2 x 90°), polycarbonate
diffuser, moulded silicone gasket.
Built-in LED driver 220-240V 50-60Hz,
with 1 CREE XHP-35 LED. IP67 rating.
HYDROFLOOR
MINI 02
201079
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
2 x 90°
330
36,67
4000°K neutral-white
high-power led
2 x 90°
340
37,78
2700°K CCT available on request
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
Ø 130 mm
191 mm
Ø 120 mm
163 mm
Ø 176 mm
248 mm
20 mm
DALI
Available on request
