114 | puk.it
Projector for outdoor installation on a
façade/wall. Body in anodized aluminum
with phospho-chromatised and polyester
powder coating, bracket in stainless steel,
tempered safety glass, moulded silicone
gasket and stainless steel screws. Constant
voltage 24V DC remote driver needed.
With 1 x XP-G3 CREE LED. IP66 rating.

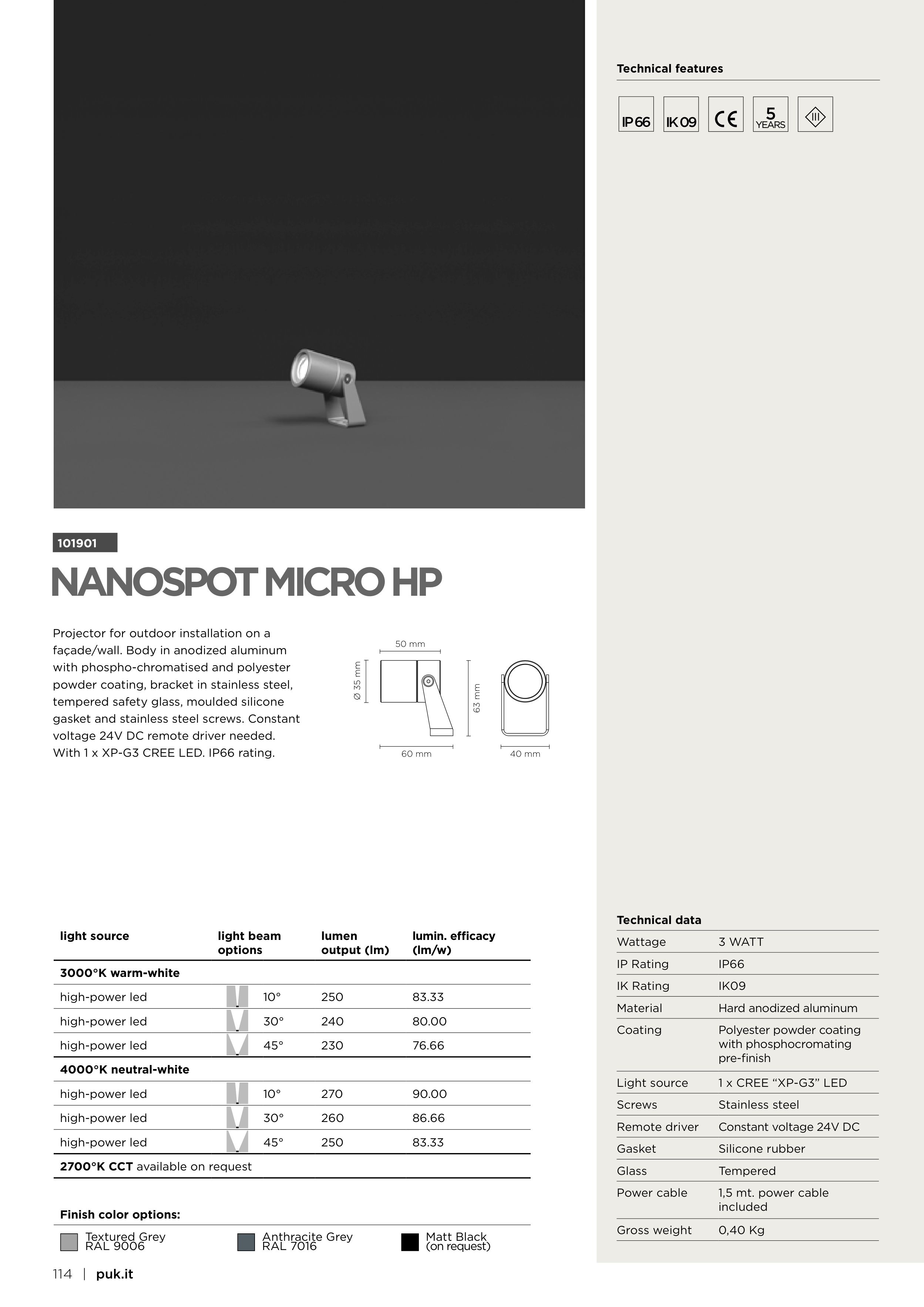

NANOSPOT MICRO HP
Technical features
5
Technical data
Wattage
3 WATT
IP Rating
IP66
IK Rating
IK09
Material
Hard anodized aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE “XP-G3” LED
Screws
Stainless steel
Remote driver
Constant voltage 24V DC
Gasket
Silicone rubber
Glass
Tempered
Power cable
1,5 mt. power cable
included
Gross weight
0,40 Kg
101901
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
10°
250
83.33
high-power led
30°
240
80.00
high-power led
45°
230
76.66
4000°K neutral-white
high-power led
10°
270
90.00
high-power led
30°
260
86.66
high-power led
45°
250
83.33
2700°K CCT available on request
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
63 mm
50 mm
Ø 35 mm
60 mm
40 mm
