20 | URBAN

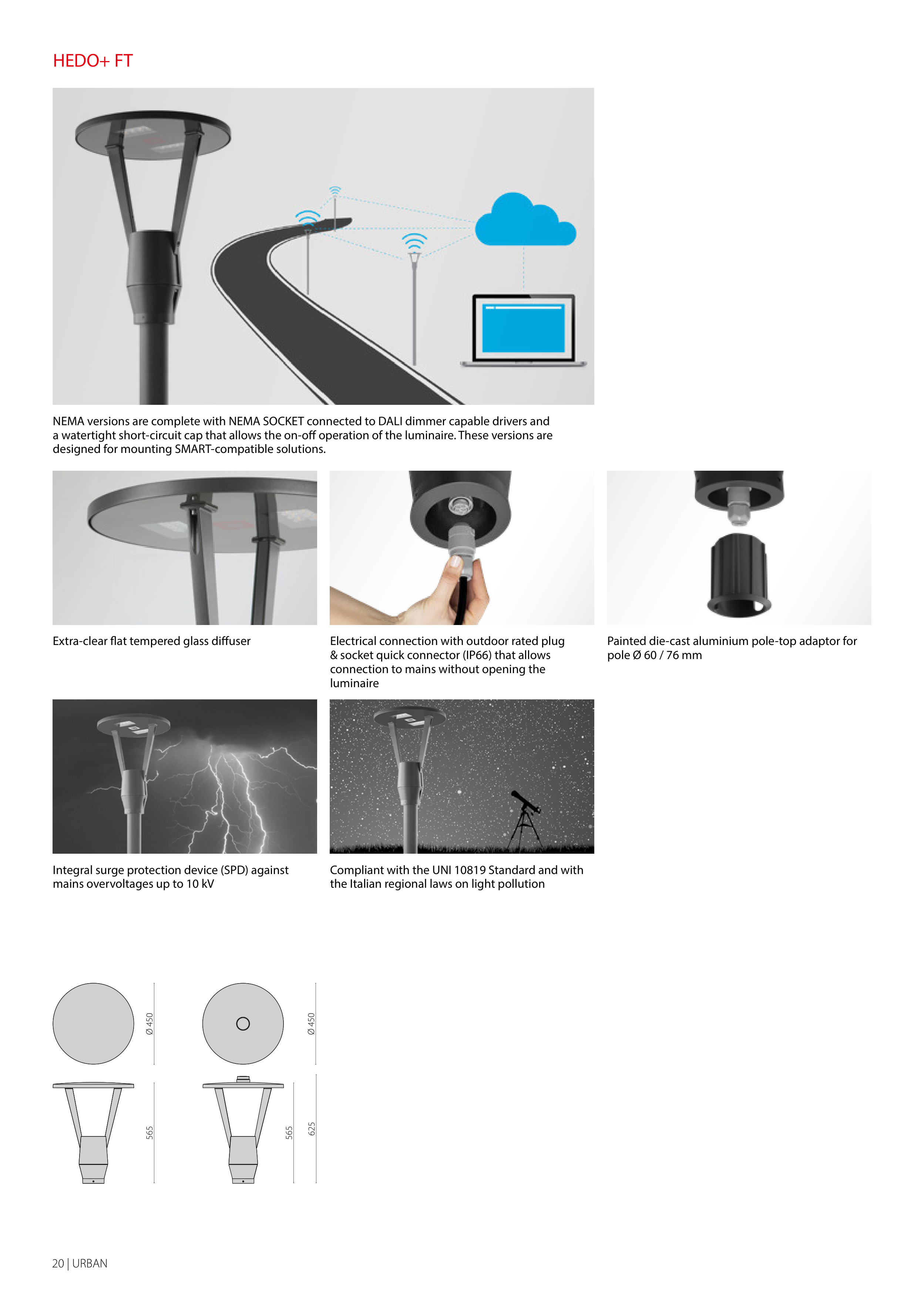

HEDO+ FT
625
565
Ø 450
565
Ø 450
Extra-clear flat tempered glass diffuser
NEMA versions are complete with NEMA SOCKET connected to DALI dimmer capable drivers and
a watertight short-circuit cap that allows the on-off operation of the luminaire. These versions are
designed for mounting SMART-compatible solutions.
Compliant with the UNI 10819 Standard and with
the Italian regional laws on light pollution
Integral surge protection device (SPD) against
mains overvoltages up to 10 kV
Electrical connection with outdoor rated plug
& socket quick connector (IP66) that allows
connection to mains without opening the
luminaire
Painted die-cast aluminium pole-top adaptor for
pole Ø 60 / 76 mm
