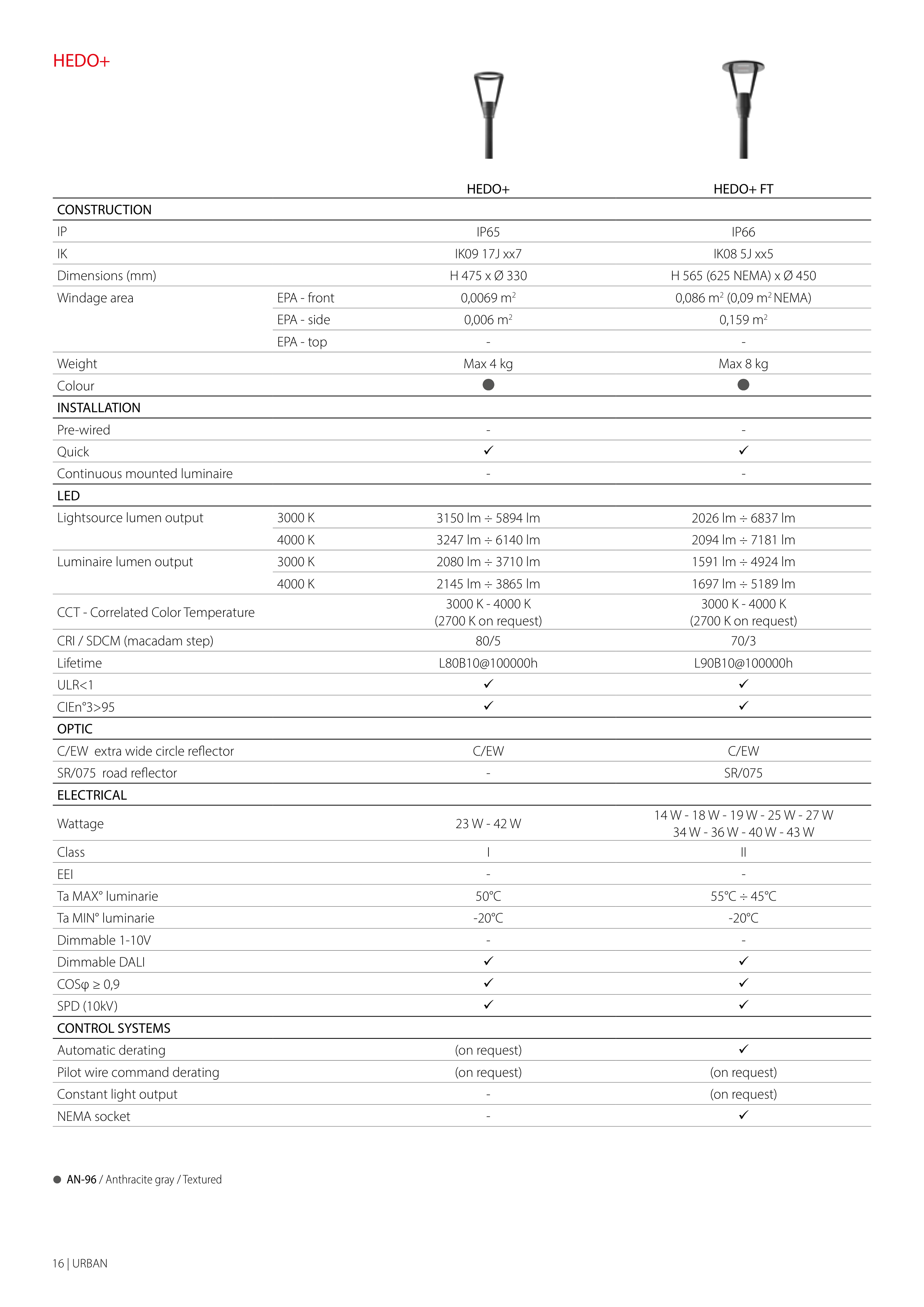

16 | URBAN
HEDO+
HEDO+
HEDO+ FT
IP65
IP66
IK09 17J xx7
IK08 5J xx5
H 475 x Ø 330
H 565 (625 NEMA) x Ø 450
0,0069 m2
0,086 m2 (0,09 m2 NEMA)
0,006 m2
0,159 m2
-
-
Max 4 kg
Max 8 kg
n
n
-
-
ü
ü
-
-
3150 lm ÷ 5894 lm
2026 lm ÷ 6837 lm
3247 lm ÷ 6140 lm
2094 lm ÷ 7181 lm
2080 lm ÷ 3710 lm
1591 lm ÷ 4924 lm
2145 lm ÷ 3865 lm
1697 lm ÷ 5189 lm
3000 K - 4000 K
(2700 K on request)
3000 K - 4000 K
(2700 K on request)
80/5
70/3
L80B10@100000h
L90B10@100000h
ü
ü
ü
ü
C/EW
C/EW
-
SR/075
23 W - 42 W
14 W - 18 W - 19 W - 25 W - 27 W
34 W - 36 W - 40 W - 43 W
I
II
-
-
50°C
55°C ÷ 45°C
-20°C
-20°C
-
-
ü
ü
ü
ü
ü
ü
(on request)
ü
(on request)
(on request)
-
(on request)
-
ü
CONSTRUCTION
IP
IK
Dimensions (mm)
Windage area
EPA - front
EPA - side
EPA - top
Weight
Colour
INSTALLATION
Pre-wired
Quick
Continuous mounted luminaire
LED
Lightsource lumen output
3000 K
4000 K
Luminaire lumen output
3000 K
4000 K
CCT - Correlated Color Temperature
CRI / SDCM (macadam step)
Lifetime
ULR<1
CIEn°3>95
OPTIC
C/EW extra wide circle reflector
SR/075 road reflector
ELECTRICAL
Wattage
Class
EEI
Ta MAX° luminarie
Ta MIN° luminarie
Dimmable 1-10V
Dimmable DALI
COSφ ≥ 0,9
SPD (10kV)
CONTROL SYSTEMS
Automatic derating
Pilot wire command derating
Constant light output
NEMA socket
n AN-96 / Anthracite gray / Textured
