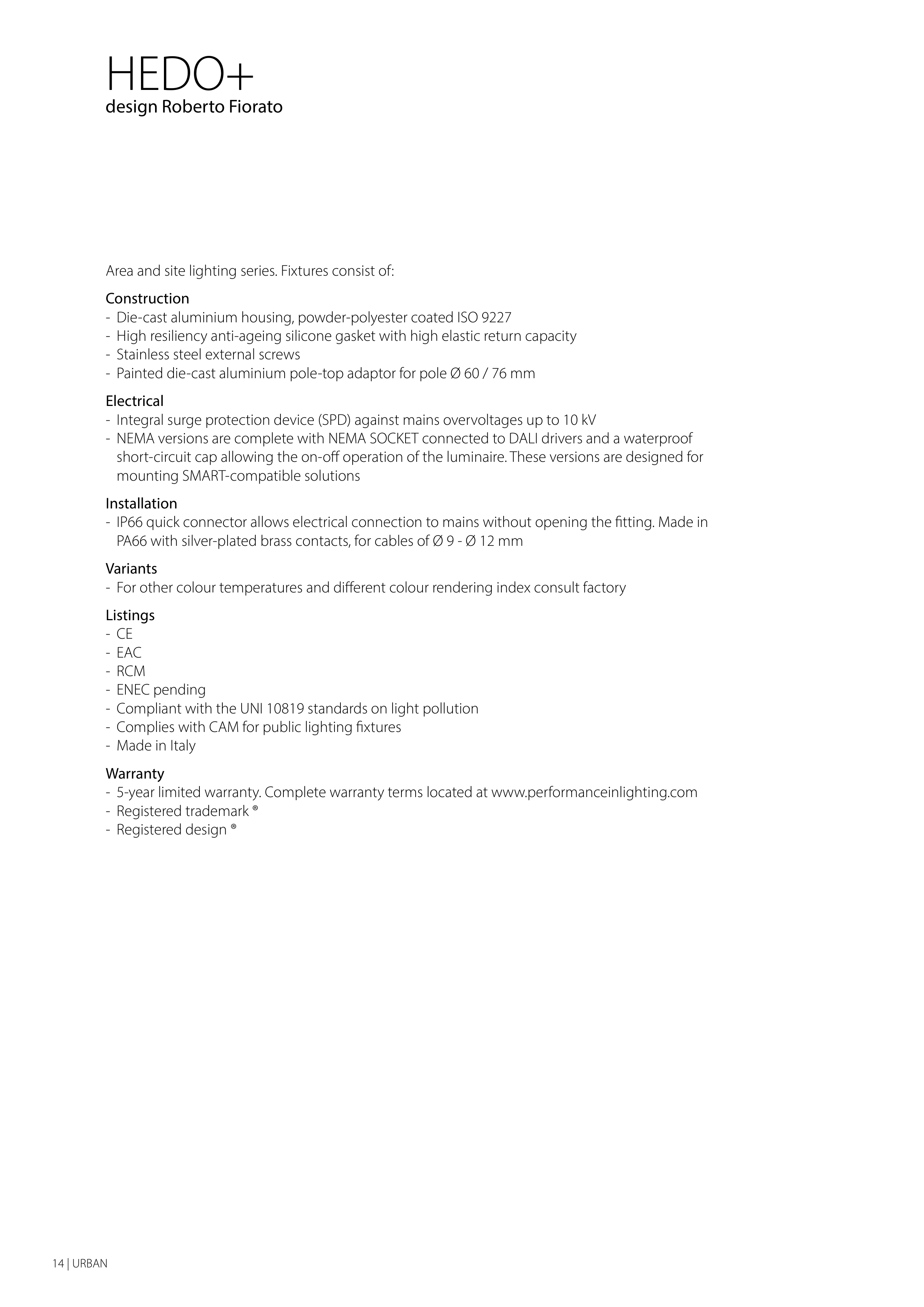

14 | URBAN
Area and site lighting series. Fixtures consist of:
Construction
- Die-cast aluminium housing, powder-polyester coated ISO 9227
- High resiliency anti-ageing silicone gasket with high elastic return capacity
- Stainless steel external screws
- Painted die-cast aluminium pole-top adaptor for pole Ø 60 / 76 mm
Electrical
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV
- NEMA versions are complete with NEMA SOCKET connected to DALI drivers and a waterproof
short-circuit cap allowing the on-off operation of the luminaire. These versions are designed for
mounting SMART-compatible solutions
Installation
- IP66 quick connector allows electrical connection to mains without opening the fitting. Made in
PA66 with silver-plated brass contacts, for cables of Ø 9 - Ø 12 mm
Variants
- For other colour temperatures and different colour rendering index consult factory
Listings
- CE
- EAC
- RCM
- ENEC pending
- Compliant with the UNI 10819 standards on light pollution
- Complies with CAM for public lighting fixtures
- Made in Italy
Warranty
- 5-year limited warranty. Complete warranty terms located at www.performanceinlighting.com
- Registered trademark ®
- Registered design ®
HEDO+
design Roberto Fiorato
