214
PANZERI
LED DRIVER TENSIONE COSTANTE 48V / LED DRIVER CONSTANT VOLTAGE 48V
YDV.048.075.A01
YDV.048 .150.A01
YDV.048.150.A02
PUSH DIM DALI
V in
220-240V AC
V out
48V DC
I out
1,55A DC
W
75
λ
≥ 0,96
V in
220-240V AC
V out
48V DC
I out
3,125A DC
W
150
λ
≥ 0,96
V in
220-240V AC
V out
48V DC
I out
3,125A DC
W
150
λ
0,99
SELV
SELV
SELV
YLL001.050.2201
7,5W GU10 Ø 50 mm 3000K Ra80 680lm 60° 220-240V NOT DIMMABLE
YLL002.050.2201
7,5W GU10 Ø 50 mm 3000K Ra80 680lm 60° 220-240V NOT DIMMABLE
XM5/GU10-35
4W GU10 Ø 35 mm 3000K Ra80 340lm 220-240V NOT DIMMABLE
XM5/G9LED
4W G9 3000K Ra80 330lm 110-240V NOT DIMMABLE
SORGENTI LED / LED LAMP 220-240V
XM6-15 UNI
XM6-20 UNI
YDA.070.012.A01
YDR.035.008.A01
LED DRIVER CORRENTE COSTANTE / LED DRIVER CONSTANT CURRENT
V in
100-240V AC
V out
2-41,5V DC
I out
60-360mA
W
2,5-15
λ
0,80
See Matrix page 217
SELV
V in
220-240V AC
V out
2-54V DC
I out
250-700mA
W
4-20
λ
0,95
SELV
See Matrix page 217
V in
220-240V AC
V out
8-22,5V DC
I out
200-350mA
W
4,5-7,9
λ
0,50
SELV
See Matrix page 217

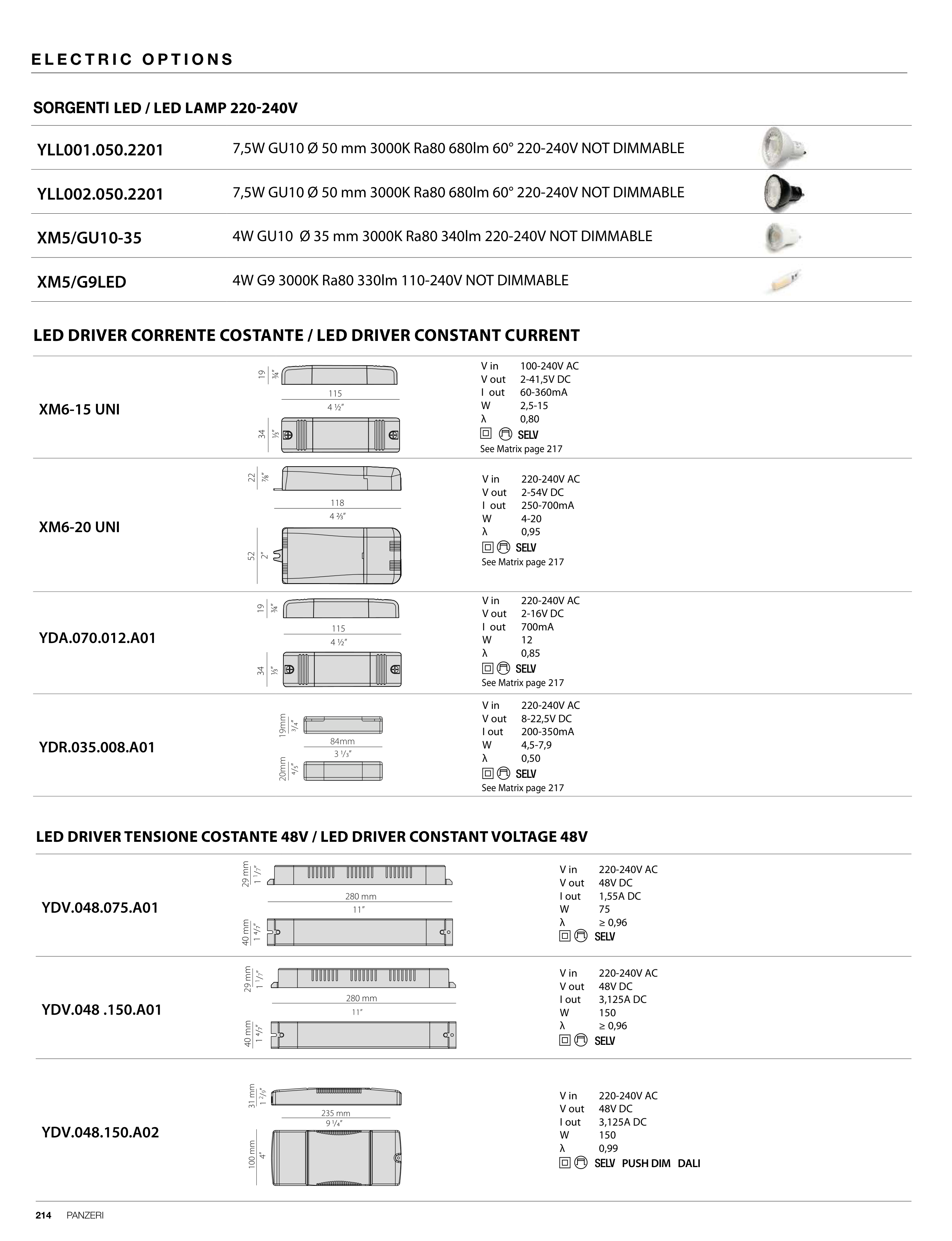

E L E C T R I C O P T I O N S
See Matrix page 217
V in
220-240V AC
V out
2-16V DC
I out
700mA
W
12
λ
0,85
SELV
280 mm
11”
40 mm
1 4/7”
29 mm
1 1/7”
280 mm
11”
40 mm
1 4/7”
29 mm
1 1/7”
235 mm
9 1/4”
100 mm
4”
31 mm
1 2/9”
115
4 ½”
19
¾”
34
118
22
52
2”
20mm
4/5”
84mm
3 1/3”
19mm
3/4”
115
4 ½”
19
¾”
34
