B R O O K LY N
X G 2 0 3 3
XG2033-__TRACK+LED+XM2033-T
Sistema modulare LED in alluminio estruso verniciato bianco
sezionabile, da incasso a scomparsa totale (trimless), per
applicazioni in verticale o orizzontale per cartongesso/laterizio.
Doppi schermi: il primo monouso per rasatura, stuccatura e
verniciatura, il secondo definitivo opalino o microprismato. Per
una corretta e facile installazione nel cartongesso sono disponibili
farfalle micro regolabili opzionali, applicabili ogni 400mm ca.
Moduli LED multipli da 500mm frazionabili ogni 62,5mm 3000K
8,6W 24V. Moduli LED da 125mm 3000K 2,2W 24V, completi di
2 cavetti per collegamento. Predisporre, se necessari, eventuali
appendimenti.
Modular LED system in white painted extruded aluminium
(trimless), dividable, and fully recessed wall for vertical or
horizontal use in drywall/concrete. Two screens: the first disposable
for shaving, plastering and painting, the second definitive in
opaline or microprismatic finish. For a quick and easy installation
in drywall, are available micro adjustable wings nut optional,
applicable every 400mm approx. Multiple LED modules (500mm
long) divisible every 62,5mm 3000K 8,6W 24V. Modules (125mm
long) 3000K 2,2W 24V, complete with 2 connection cables. Prepare,
if necessary, any hangings to support the system.
35 mm
95 mm
3 ¾"
30 mm
35 mm
60 mm
B R O O K LY N T R I M
X G 2 0 3 4
XG2034-__TRACK+LED+XM2034-T
Sistema modulare LED in alluminio estruso verniciato bianco
sezionabile, da incasso con bordo (trim), per applicazioni in
verticale o orizzontale per cartongesso/laterizio. Per una corretta
e facile installazione nel cartongesso sono disponibili farfalle
opzionali, applicabili ogni 400mm ca. Moduli LED multipli da
500mm frazionabili ogni 62,5mm 3000K 8,6W 24V. Moduli LED da
125mm 3000K 2,2W 24V, completi di 2 cavetti per collegamento.
Predisporre, se necessari, eventuali appendimenti.
Modular LED system in extruded aluminium painted white, for
recessed installation with border (trim), for vertical or horizontal
application in drywall /brick. Wings nut (an optional) are available
for correct and simple installation in falce ceiling applicable every
400mm approx. Multiple 500mm LED modules 8,6W 24V 3000K
divisible every 62,5mm. 125mm LED modules 3000k 2,2W 24V
complete with 2 connection cable. Prepare any suspensions, if
necessary.
35 mm
95 mm
3 ¾"
30 mm
35 mm
60 mm
44 mm
B R O O K LY N O U T
X P 2 0 3 3
XP2033-__TRACK+LED+XM2033-T1
Sistema modulare LED in alluminio estruso verniciato bianco (nero
a richiesta) sezionabile, da parete/plafone o a sospensione. Moduli
LED multipli da 500mm frazionabili ogni 62,5mm 3000K 8,6W 24V.
Moduli LED da 125mm 3000K 2,2W 24V, completi di 2 cavetti per
collegamento.
Modular LED system in extruded aluminium painted white for
wall/ceiling or suspension (black on request). 500mm Multiple LED
modules 8,6W 24V 3000K divisible in 62,5mm sections. 125mm LED
modules 3000K 2,2W 24V, complete with 2 connection cables.
35 mm
30 mm
35 mm

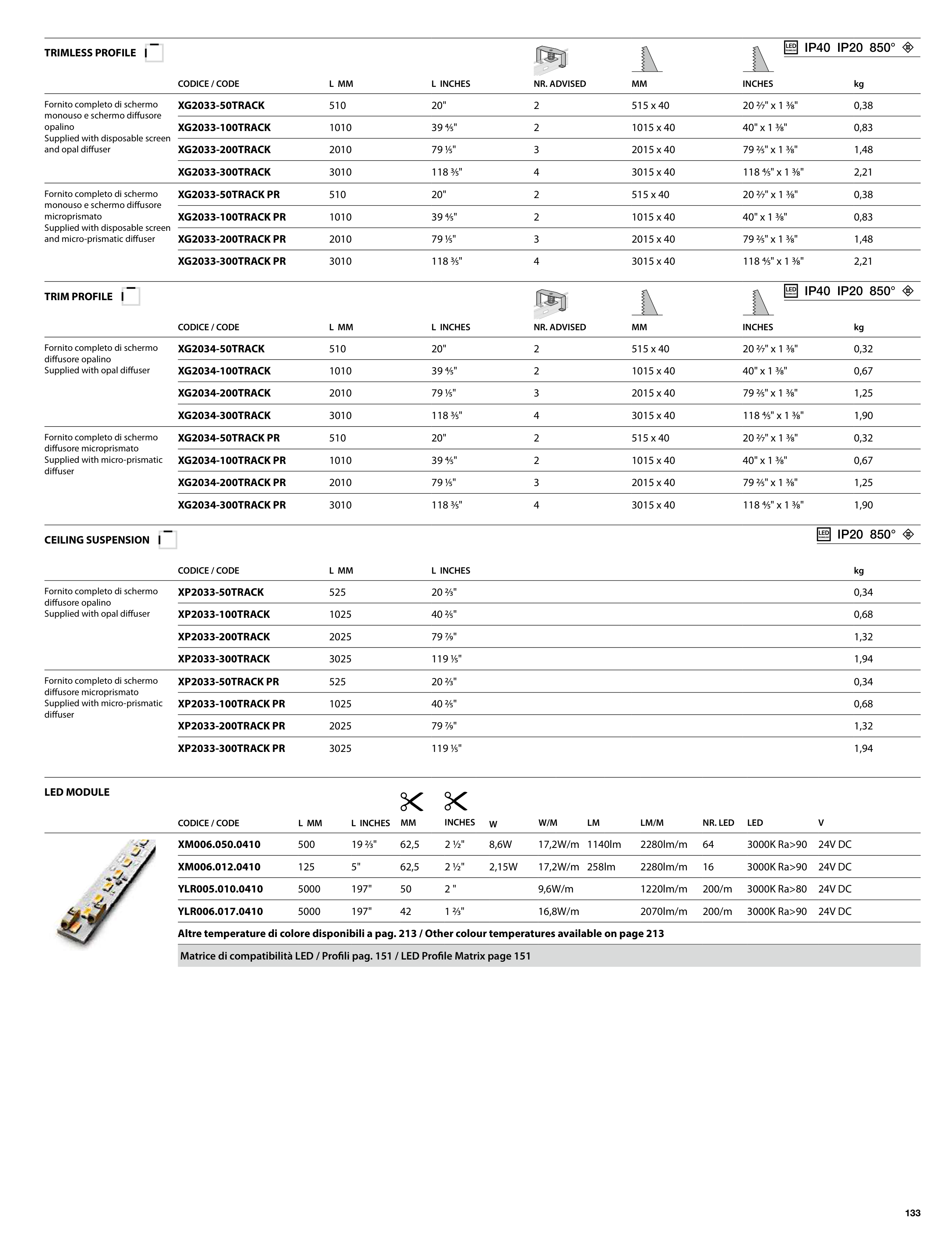

TRIMLESS PROFILE
Fornito completo di schermo
monouso e schermo diffusore
opalino
Supplied with disposable screen
and opal diffuser
XG2033-50TRACK
510
20"
2
515 x 40
20 2/7" x 1 3/8"
0,38
XG2033-100TRACK
1010
39 4/5"
2
1015 x 40
40" x 1 3/8"
0,83
XG2033-200TRACK
2010
79 1/5"
3
2015 x 40
79 2/5" x 1 3/8"
1,48
XG2033-300TRACK
3010
118 3/5"
4
3015 x 40
118 4/5" x 1 3/8"
2,21
Fornito completo di schermo
monouso e schermo diffusore
microprismato
Supplied with disposable screen
and micro-prismatic diffuser
XG2033-50TRACK PR
510
20"
2
515 x 40
20 2/7" x 1 3/8"
0,38
XG2033-100TRACK PR
1010
39 4/5"
2
1015 x 40
40" x 1 3/8"
0,83
XG2033-200TRACK PR
2010
79 1/5"
3
2015 x 40
79 2/5" x 1 3/8"
1,48
XG2033-300TRACK PR
3010
118 3/5"
4
3015 x 40
118 4/5" x 1 3/8"
2,21
TRIM PROFILE
Fornito completo di schermo
diffusore opalino
Supplied with opal diffuser
XG2034-50TRACK
510
20"
2
515 x 40
20 2/7" x 1 3/8"
0,32
XG2034-100TRACK
1010
39 4/5"
2
1015 x 40
40" x 1 3/8"
0,67
XG2034-200TRACK
2010
79 1/5"
3
2015 x 40
79 2/5" x 1 3/8"
1,25
XG2034-300TRACK
3010
118 3/5"
4
3015 x 40
118 4/5" x 1 3/8"
1,90
Fornito completo di schermo
diffusore microprismato
Supplied with micro-prismatic
diffuser
XG2034-50TRACK PR
510
20"
2
515 x 40
20 2/7" x 1 3/8"
0,32
XG2034-100TRACK PR
1010
39 4/5"
2
1015 x 40
40" x 1 3/8"
0,67
XG2034-200TRACK PR
2010
79 1/5"
3
2015 x 40
79 2/5" x 1 3/8"
1,25
XG2034-300TRACK PR
3010
118 3/5"
4
3015 x 40
118 4/5" x 1 3/8"
1,90
CEILING SUSPENSION
Fornito completo di schermo
diffusore opalino
Supplied with opal diffuser
XP2033-50TRACK
525
20 2/3"
0,34
XP2033-100TRACK
1025
40 2/5"
0,68
XP2033-200TRACK
2025
79 7/9"
1,32
XP2033-300TRACK
3025
119 1/5"
1,94
Fornito completo di schermo
diffusore microprismato
Supplied with micro-prismatic
diffuser
XP2033-50TRACK PR
525
20 2/3"
0,34
XP2033-100TRACK PR
1025
40 2/5"
0,68
XP2033-200TRACK PR
2025
79 7/9"
1,32
XP2033-300TRACK PR
3025
119 1/5"
1,94
LED MODULE
XM006.050.0410
500
19 2/3"
62,5
2 1/2"
8,6W
17,2W/m 1140lm
2280lm/m
64
3000K Ra>90
24V DC
XM006.012.0410
125
5"
62,5
2 1/2"
2,15W
17,2W/m 258lm
2280lm/m
16
3000K Ra>90
24V DC
YLR005.010.0410
5000
197"
50
2 "
9,6W/m
1220lm/m
200/m
3000K Ra>80
24V DC
YLR006.017.0410
5000
197"
42
1 2/3"
16,8W/m
2070lm/m
200/m
3000K Ra>90
24V DC
Altre temperature di colore disponibili a pag. 213 / Other colour temperatures available on page 213
IP40 IP20 850°
CODICE / CODE
L MM
L INCHES
NR. ADVISED
MM
INCHES
kg
IP40 IP20 850°
CODICE / CODE
L MM
L INCHES
NR. ADVISED
MM
INCHES
kg
IP20 850°
CODICE / CODE
L MM
L INCHES
kg
CODICE / CODE
L MM
L INCHES
MM
INCHES
W
W/M
LM
LM/M
NR. LED
LED
V
Matrice di compatibilità LED / Profili pag. 151 / LED Profile Matrix page 151
