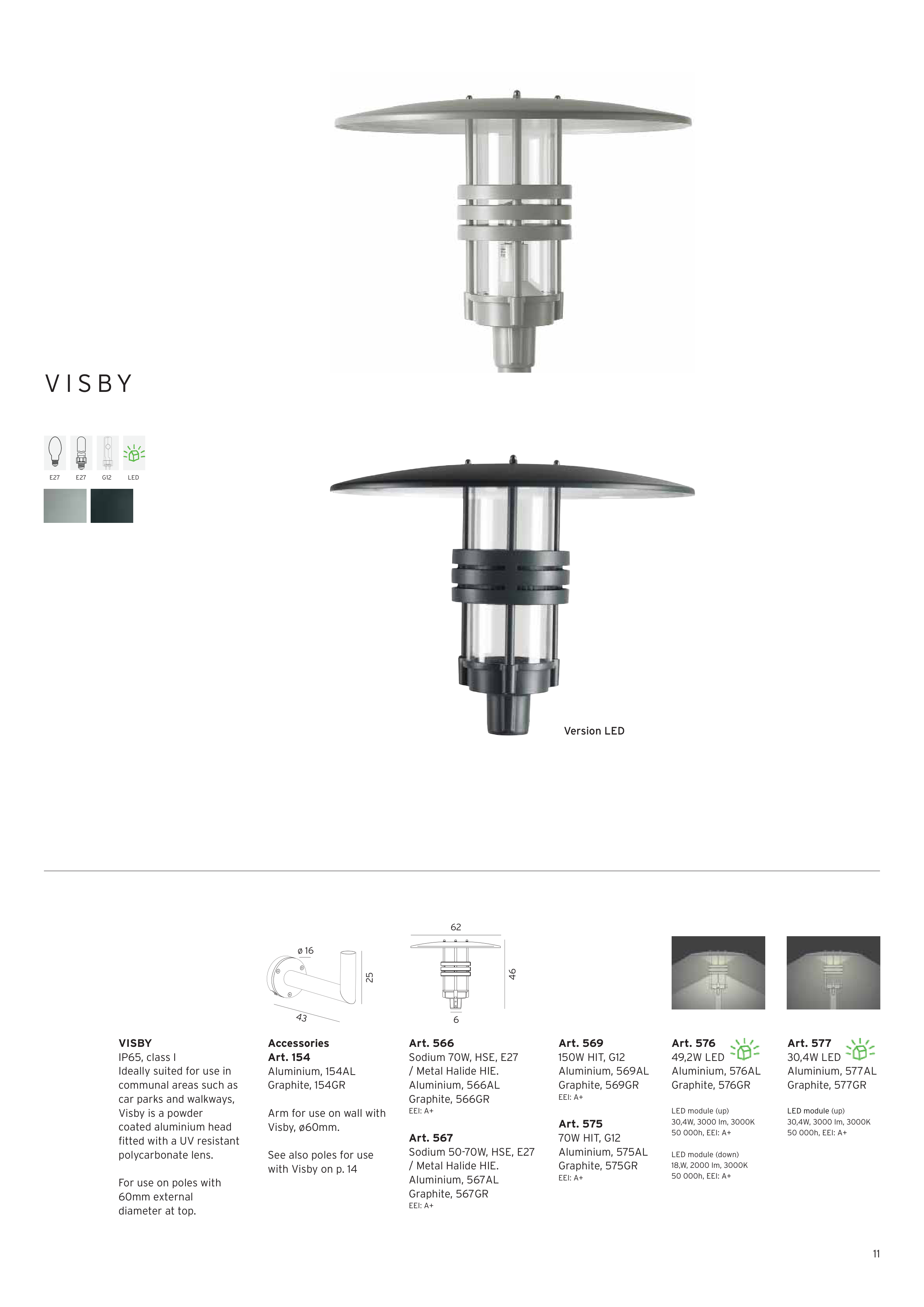

11
V I S BY
VISBY
IP65, class I
Ideally suited for use in
communal areas such as
car parks and walkways,
Visby is a powder
coated aluminium head
fi tted with a UV resistant
polycarbonate lens.
For use on poles with
60mm external
diameter at top.
Art. 566
Sodium 70W, HSE, E27
/ Metal Halide HIE.
Aluminium, 566AL
Graphite, 566GR
EEI: A+
Art. 567
Sodium 50-70W, HSE, E27
/ Metal Halide HIE.
Aluminium, 567AL
Graphite, 567GR
EEI: A+
Art. 569
150W HIT, G12
Aluminium, 569AL
Graphite, 569GR
EEI: A+
Art. 575
70W HIT, G12
Aluminium, 575AL
Graphite, 575GR
EEI: A+
62
46
6
Art. 576
49,2W LED
Aluminium, 576AL
Graphite, 576GR
LED module (up)
30,4W, 3000 lm, 3000K
50 000h, EEI: A+
LED module (down)
18,W, 2000 lm, 3000K
50 000h, EEI: A+
Art. 577
30,4W LED
Aluminium, 577AL
Graphite, 577GR
LED module (up)
30,4W, 3000 lm, 3000K
50 000h, EEI: A+
E27
E27
LED
G12
Version LED
Accessories
Art. 154
Aluminium, 154AL
Graphite, 154GR
Arm for use on wall with
Visby, ø60mm.
See also poles for use
with Visby on p. 14
ø 16
25
43
