367

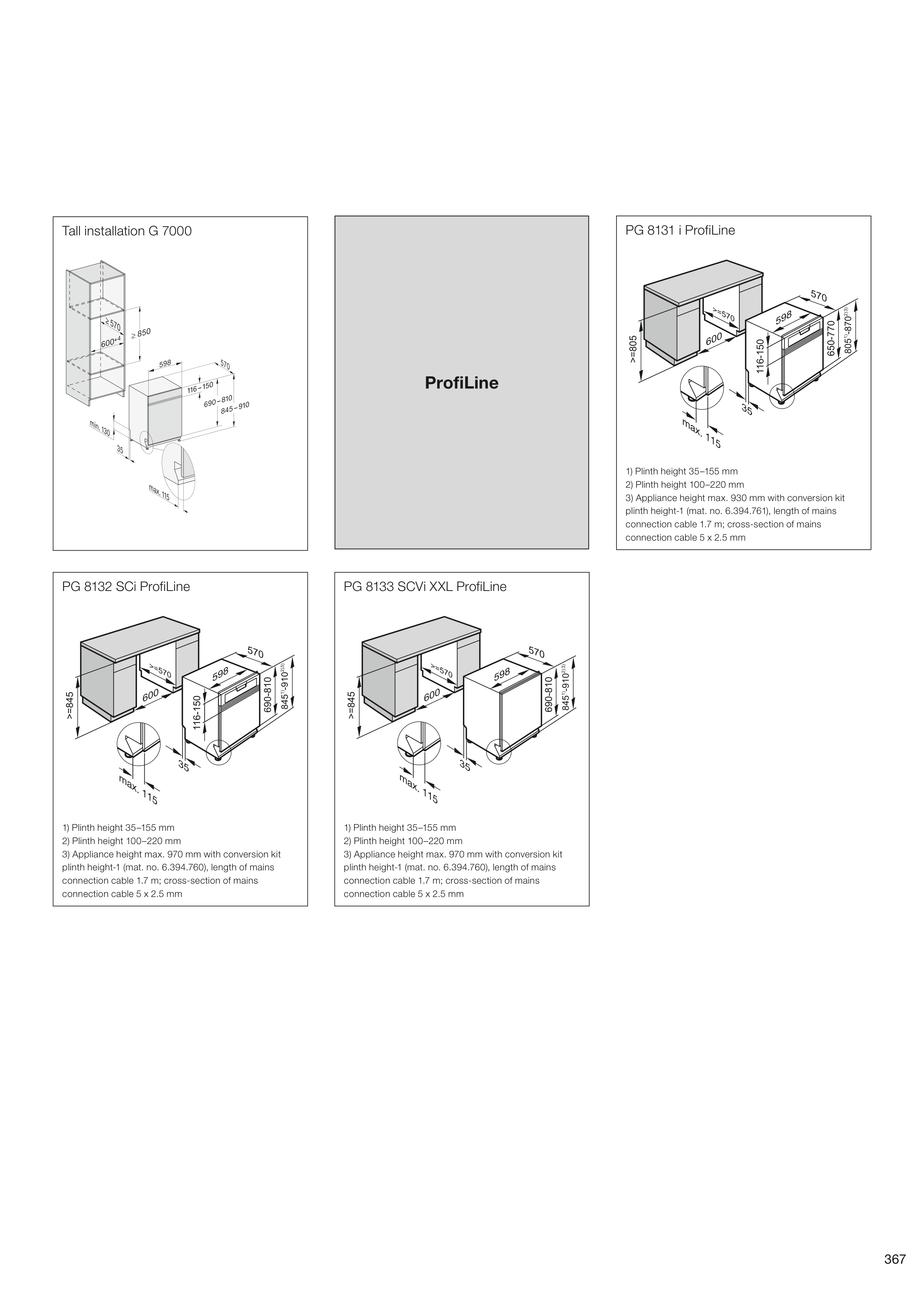

PG 8133 SCVi XXL ProfiLine
1) Plinth height 35–155 mm
2) Plinth height 100–220 mm
3) Appliance height max. 970 mm with conversion kit
plinth height-1 (mat. no. 6.394.760), length of mains
connection cable 1.7 m; cross-section of mains
connection cable 5 x 2.5 mm
PG 8131 i ProfiLine
1) Plinth height 35–155 mm
2) Plinth height 100–220 mm
3) Appliance height max. 930 mm with conversion kit
plinth height-1 (mat. no. 6.394.761), length of mains
connection cable 1.7 m; cross-section of mains
connection cable 5 x 2.5 mm
PG 8132 SCi ProfiLine
1) Plinth height 35–155 mm
2) Plinth height 100–220 mm
3) Appliance height max. 970 mm with conversion kit
plinth height-1 (mat. no. 6.394.760), length of mains
connection cable 1.7 m; cross-section of mains
connection cable 5 x 2.5 mm
ProfiLine
Tall installation G 7000
