Induction hob with
integrated vapour extraction

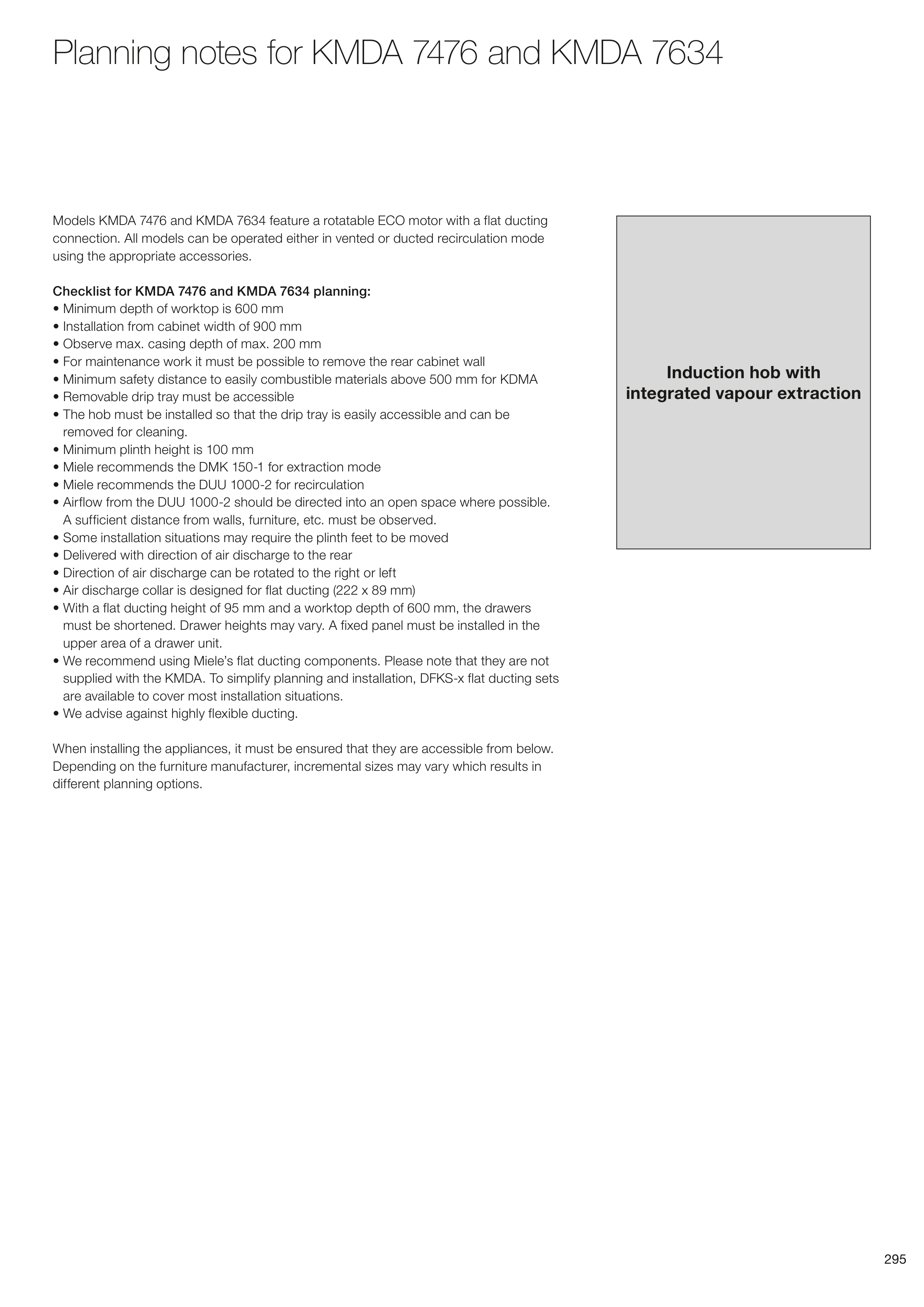

Planning notes for KMDA 7476 and KMDA 7634
Models KMDA 7476 and KMDA 7634 feature a rotatable ECO motor with a flat ducting
connection. All models can be operated either in vented or ducted recirculation mode
using the appropriate accessories.
Checklist for KMDA 7476 and KMDA 7634 planning:
• Minimum depth of worktop is 600 mm
• Installation from cabinet width of 900 mm
• Observe max. casing depth of max. 200 mm
• For maintenance work it must be possible to remove the rear cabinet wall
• Minimum safety distance to easily combustible materials above 500 mm for KDMA
• Removable drip tray must be accessible
• The hob must be installed so that the drip tray is easily accessible and can be
removed for cleaning.
• Minimum plinth height is 100 mm
• Miele recommends the DMK 150-1 for extraction mode
• Miele recommends the DUU 1000-2 for recirculation
• Airflow from the DUU 1000-2 should be directed into an open space where possible.
A sufficient distance from walls, furniture, etc. must be observed.
• Some installation situations may require the plinth feet to be moved
• Delivered with direction of air discharge to the rear
• Direction of air discharge can be rotated to the right or left
• Air discharge collar is designed for flat ducting (222 x 89 mm)
• With a flat ducting height of 95 mm and a worktop depth of 600 mm, the drawers
must be shortened. Drawer heights may vary. A fixed panel must be installed in the
upper area of a drawer unit.
• We recommend using Miele’s flat ducting components. Please note that they are not
supplied with the KMDA. To simplify planning and installation, DFKS-x flat ducting sets
are available to cover most installation situations.
• We advise against highly flexible ducting.
When installing the appliances, it must be ensured that they are accessible from below.
Depending on the furniture manufacturer, incremental sizes may vary which results in
different planning options.
