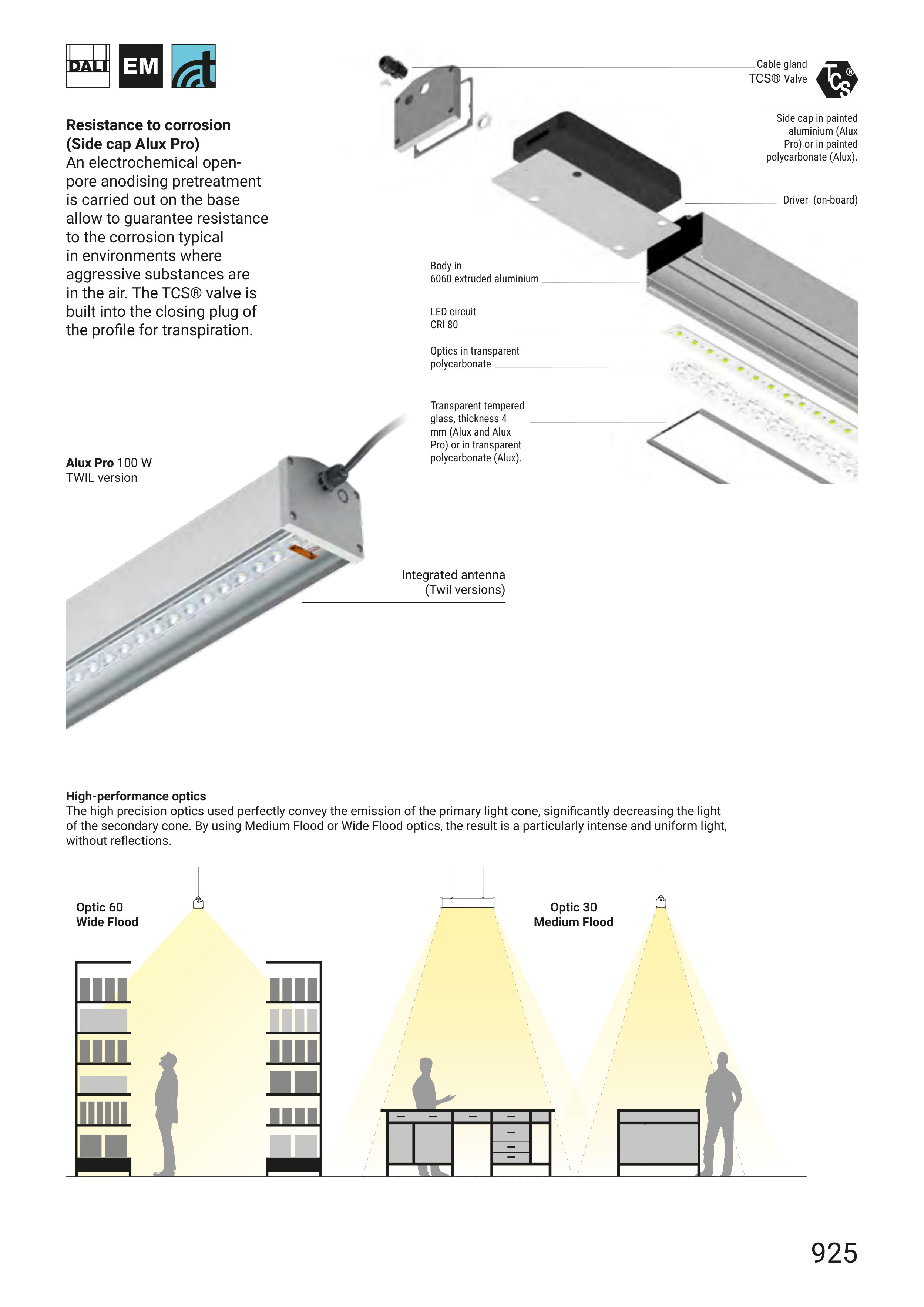

Optic 60
Wide Flood
Optic 30
Medium Flood
EM
DALI
Alux Pro 100 W
TWIL version
Driver (on-board)
High-performance optics
The high precision optics used perfectly convey the emission of the primary light cone, significantly decreasing the light
of the secondary cone. By using Medium Flood or Wide Flood optics, the result is a particularly intense and uniform light,
without reflections.
Resistance to corrosion
(Side cap Alux Pro)
An electrochemical open-
pore anodising pretreatment
is carried out on the base
allow to guarantee resistance
to the corrosion typical
in environments where
aggressive substances are
in the air. The TCS® valve is
built into the closing plug of
the profile for transpiration.
Body in
6060 extruded aluminium
LED circuit
CRI 80
Optics in transparent
polycarbonate
Side cap in painted
aluminium (Alux
Pro) or in painted
polycarbonate (Alux).
Cable gland
TCS® Valve
Transparent tempered
glass, thickness 4
mm (Alux and Alux
Pro) or in transparent
polycarbonate (Alux).
Integrated antenna
(Twil versions)
925
