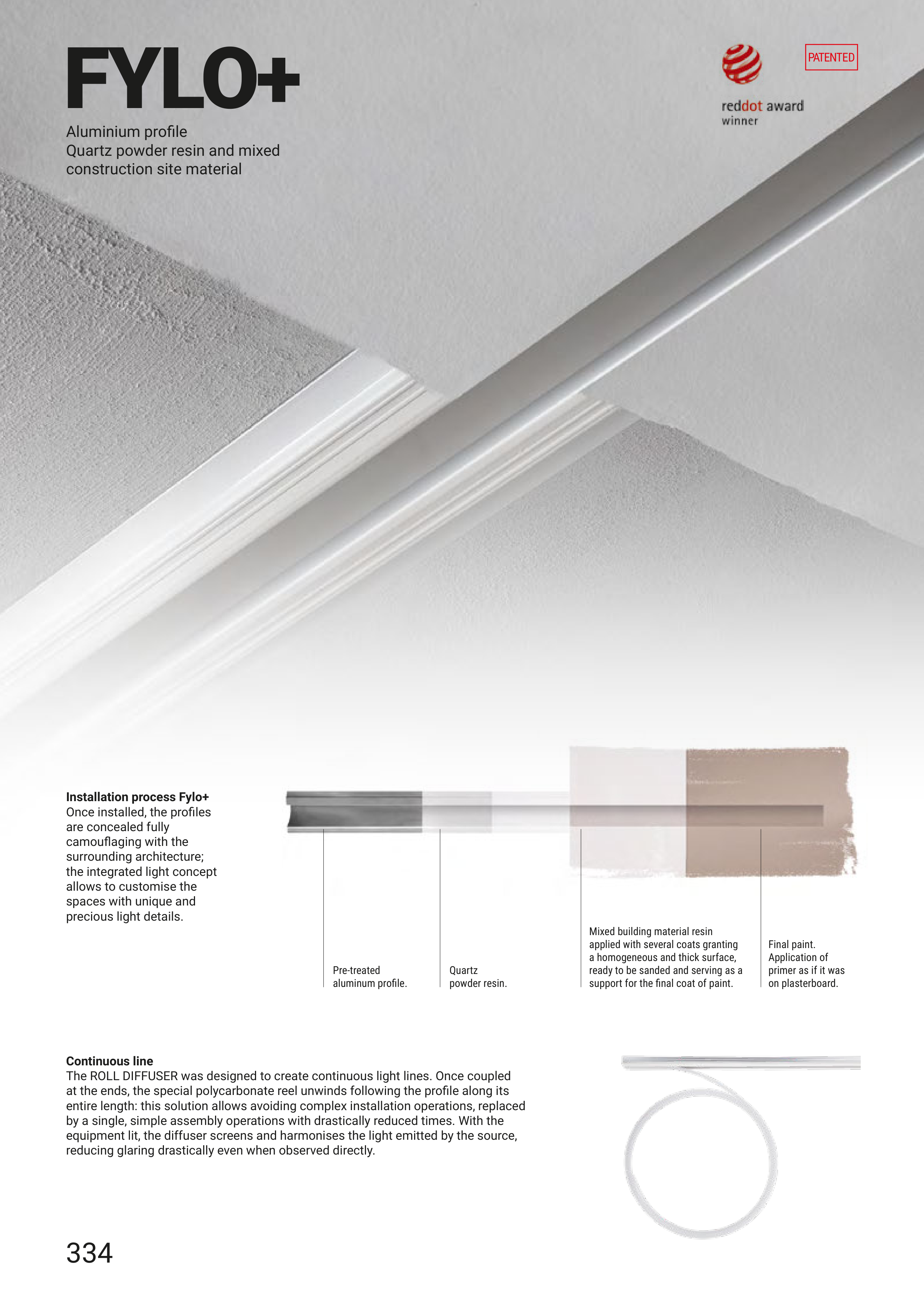

FYLO+
Aluminium profile
Quartz powder resin and mixed
construction site material
Continuous line
The ROLL DIFFUSER was designed to create continuous light lines. Once coupled
at the ends, the special polycarbonate reel unwinds following the profile along its
entire length: this solution allows avoiding complex installation operations, replaced
by a single, simple assembly operations with drastically reduced times. With the
equipment lit, the diffuser screens and harmonises the light emitted by the source,
reducing glaring drastically even when observed directly.
Installation process Fylo+
Once installed, the profiles
are concealed fully
camouflaging with the
surrounding architecture;
the integrated light concept
allows to customise the
spaces with unique and
precious light details.
Quartz
powder resin.
Pre-treated
aluminum profile.
Mixed building material resin
applied with several coats granting
a homogeneous and thick surface,
ready to be sanded and serving as a
support for the final coat of paint.
Final paint.
Application of
primer as if it was
on plasterboard.
334
