FR.170.CI.CS & FR.100.CI.CS
framed suspension lamp circle coated bare steel 170cm & 100cm
Ø 70cm
Ø 50cm
Ø 100cm
Ø 135cm
Ø 170cm
colors & materials
Check www.jaccomaris.com for the latest colors, materials and
details or scan the QR code.
colors & materials
Check www.jaccomaris.com for the latest colors, materials and
details or scan the QR code.

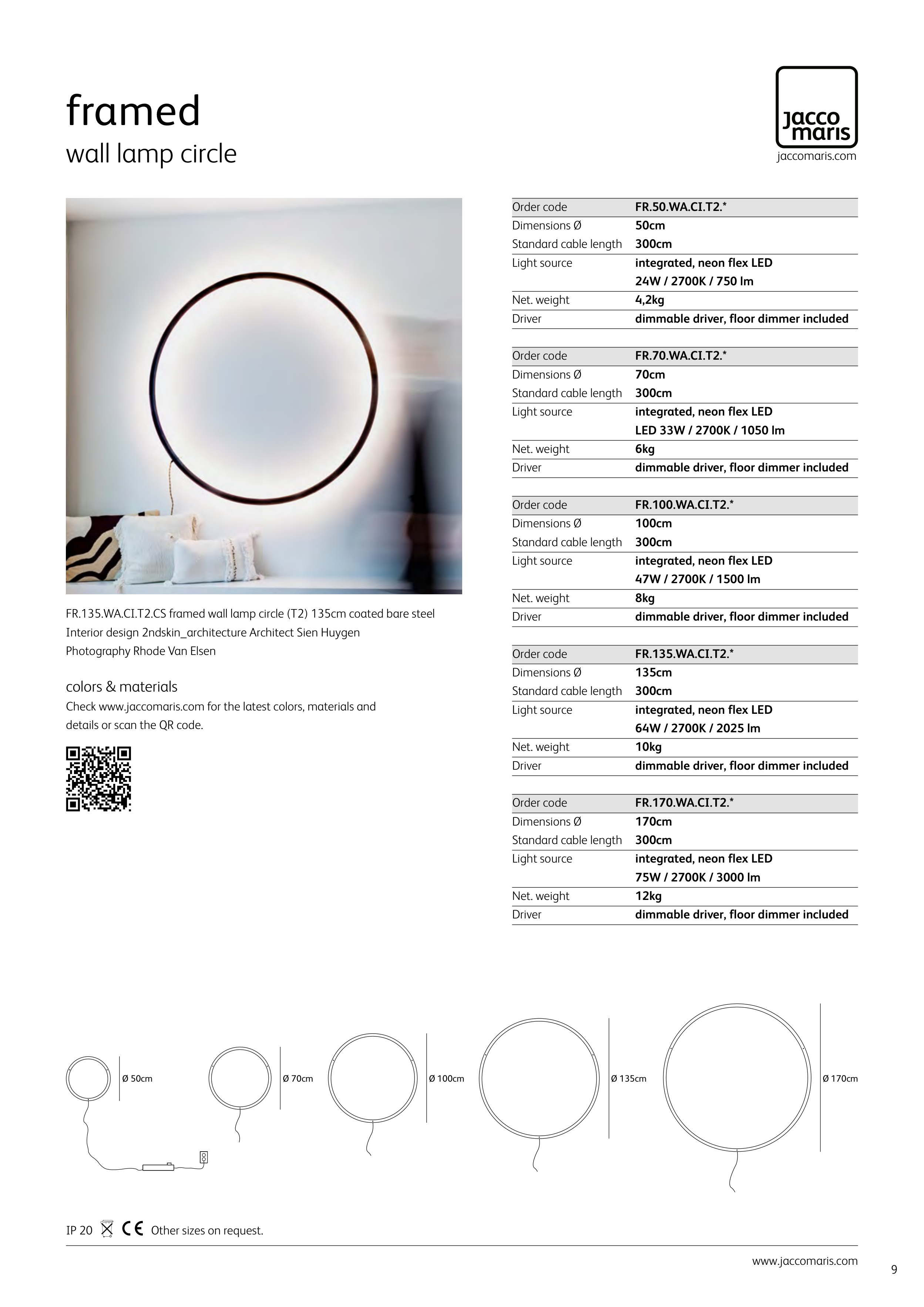

FR.135.WA.CI.T2.CS framed wall lamp circle (T2) 135cm coated bare steel
Interior design 2ndskin_architecture Architect Sien Huygen
Photography Rhode Van Elsen
Ø 70cm
Ø 100cm
Ø 135cm
Ø 170cm
Ø 50cm
framed
wall lamp circle
suspension lamp circle (suitable as up light or down light)
framed
Order code
FR.50.WA.CI.T2.*
Dimensions Ø
50cm
Standard cable length
300cm
Light source
integrated, neon flex LED
24W / 2700K / 750 lm
Net. weight
4,2kg
Driver
dimmable driver, floor dimmer included
Order code
FR.70.WA.CI.T2.*
Dimensions Ø
70cm
Standard cable length
300cm
Light source
integrated, neon flex LED
LED 33W / 2700K / 1050 lm
Net. weight
6kg
Driver
dimmable driver, floor dimmer included
Order code
FR.100.WA.CI.T2.*
Dimensions Ø
100cm
Standard cable length
300cm
Light source
integrated, neon flex LED
47W / 2700K / 1500 lm
Net. weight
8kg
Driver
dimmable driver, floor dimmer included
Order code
FR.135.WA.CI.T2.*
Dimensions Ø
135cm
Standard cable length
300cm
Light source
integrated, neon flex LED
64W / 2700K / 2025 lm
Net. weight
10kg
Driver
dimmable driver, floor dimmer included
Order code
FR.170.WA.CI.T2.*
Dimensions Ø
170cm
Standard cable length
300cm
Light source
integrated, neon flex LED
75W / 2700K / 3000 lm
Net. weight
12kg
Driver
dimmable driver, floor dimmer included
IP 20
Other sizes on request.
9
www.jaccomaris.com
IP 20
Other sizes on request. Optional round driver box.
www.jaccomaris.com
8
jaccomaris.com
jaccomaris.com
Order code
FR.50.CI.*
Dimensions Ø
50cm
Standard cable length
200cm
Light source
integrated
neon flex LED 24W / 2700K / 750 lm
Net. weight
4,2kg
Driver
dimmable driver, dimmer not included
Standard driver box
24x8x4cm white
Order code
FR.70.CI.*
Dimensions Ø
70cm
Standard cable length
200cm
Light source
integrated
neon flex LED 33W / 2700K / 1050 lm
Net. weight
6kg
Driver
dimmable driver, dimmer not included
Standard driver box
24x8x4cm white
Order code
FR.100.CI.*
Dimensions Ø
100cm
Standard cable length
200cm
Light source
integrated
neon flex LED 47W / 2700K / 1500 lm
Net. weight
8kg
Driver
dimmable driver, dimmer not included
Standard driver box
24x8x4cm white
Order code
FR.135.CI.*
Dimensions Ø
135cm
Standard cable length
200cm
Light source
integrated
neon flex LED 64W / 2700K / 2025 lm
Net. weight
10kg
Driver
dimmable driver, dimmer not included
Standard driver box
24x8x4cm white
Order code
FR.170.CI.*
Dimensions Ø
170cm
Standard cable length
200cm
Light source
integrated
neon flex LED 75W / 2700K / 3000 lm
Net. weight
12kg
Driver
dimmable driver, dimmer not included
Standard driver box
24x8x4cm white
