Concave and
convex shapes
Start module
Central module
End module
UD Concave
90°
R500mm (19-11/16”)
UD Convex
90°
R500mm (19-11/16”)

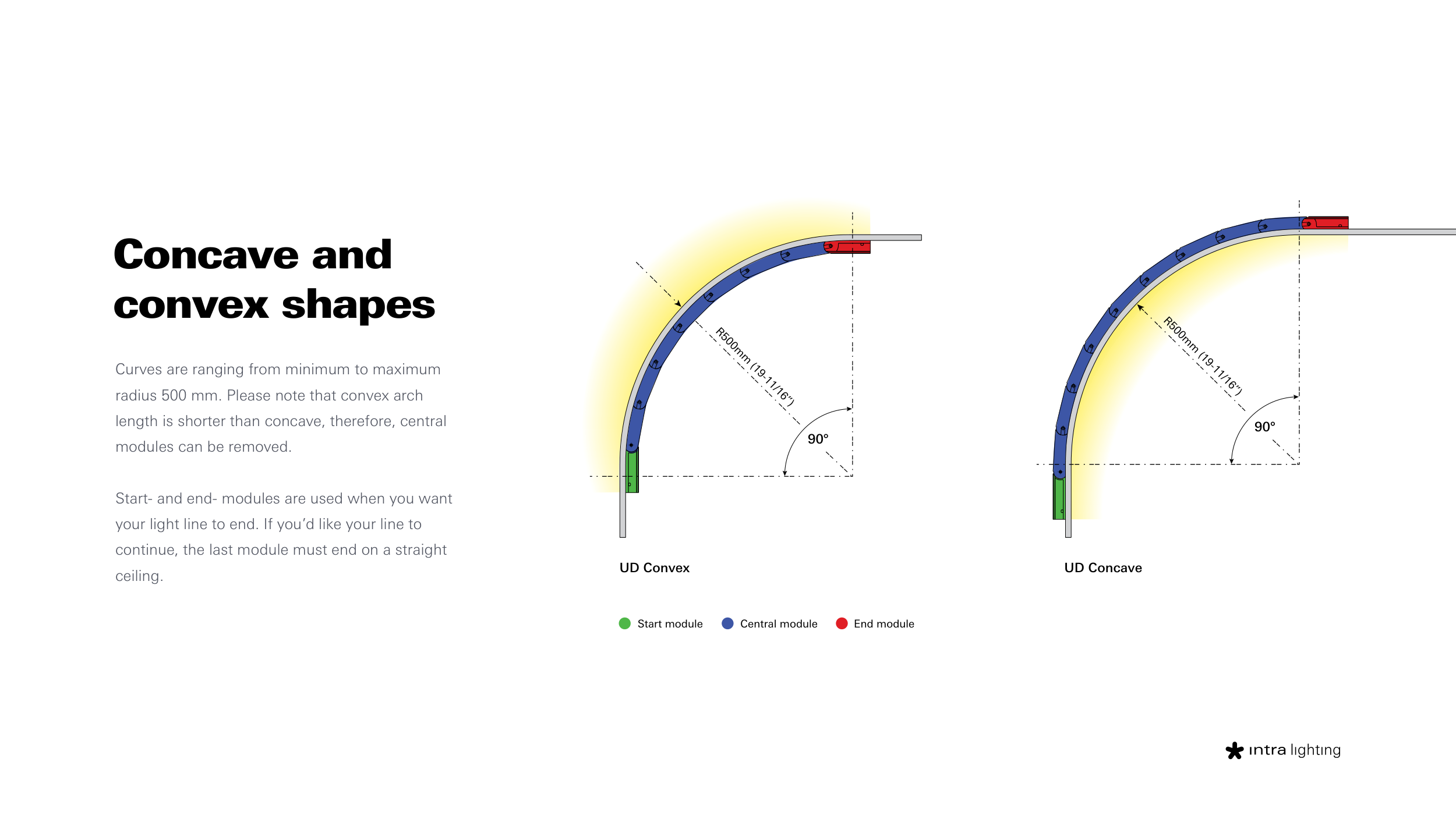

Curves are ranging from minimum to maximum
radius 500 mm. Please note that convex arch
length is shorter than concave, therefore, central
modules can be removed.
Start- and end- modules are used when you want
your light line to end. If you’d like your line to
continue, the last module must end on a straight
ceiling.
