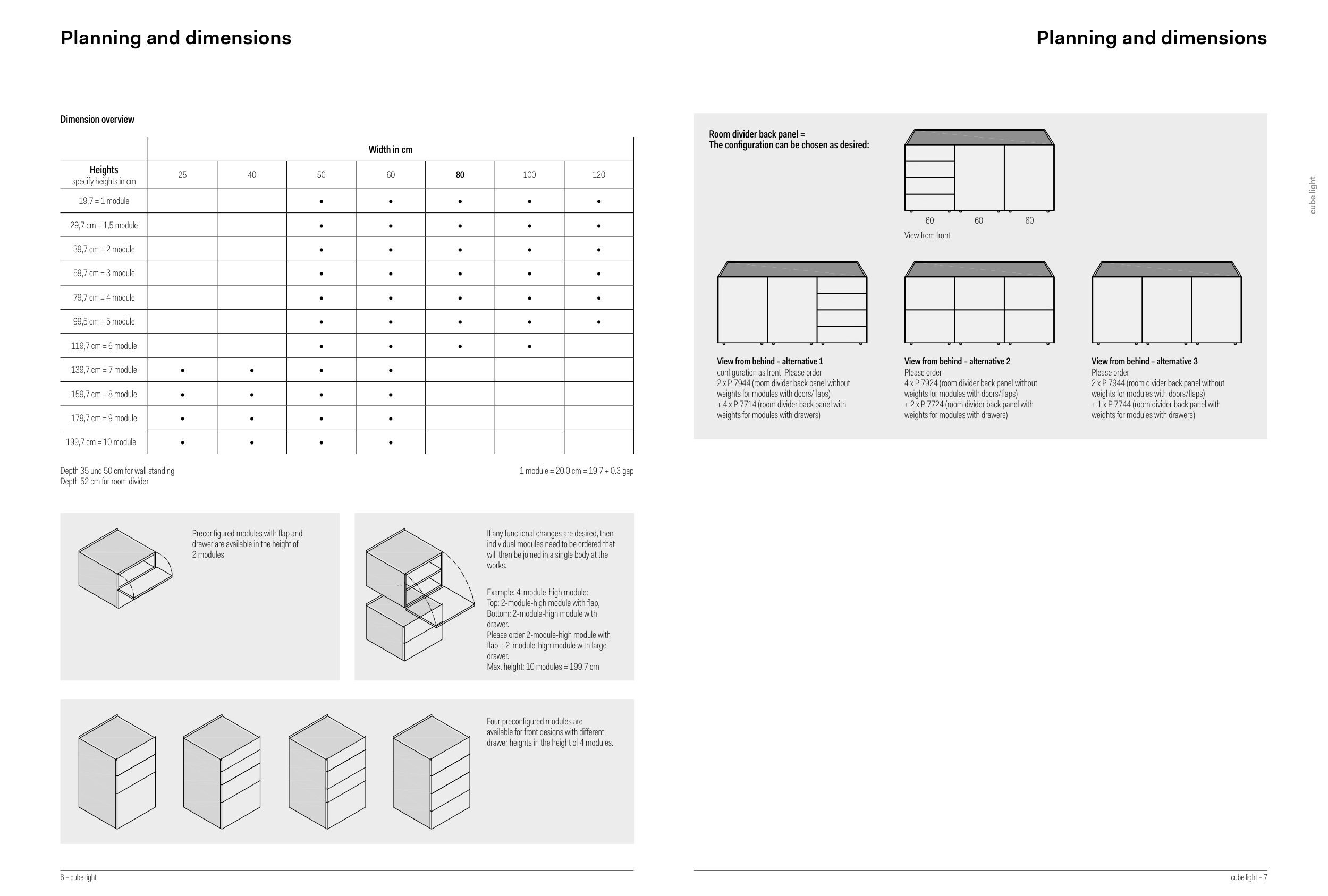

Planning and dimensions
Dimension overview
Width in cm
Heights
specify heights in cm
25
40
50
60
80
100
120
19,7 = 1 module
•
•
•
•
•
29,7 cm = 1,5 module
•
•
•
•
•
39,7 cm = 2 module
•
•
•
•
•
59,7 cm = 3 module
•
•
•
•
•
79,7 cm = 4 module
•
•
•
•
•
99,5 cm = 5 module
•
•
•
•
•
119,7 cm = 6 module
•
•
•
•
139,7 cm = 7 module
•
•
•
•
159,7 cm = 8 module
•
•
•
•
179,7 cm = 9 module
•
•
•
•
199,7 cm = 10 module
•
•
•
•
1 module = 20.0 cm = 19.7 + 0.3 gap
Depth 35 und 50 cm for wall standing
Depth 52 cm for room divider
Four preconfigured modules are
available for front designs with different
drawer heights in the height of 4 modules.
Preconfigured modules with flap and
drawer are available in the height of
2 modules.
If any functional changes are desired, then
individual modules need to be ordered that
will then be joined in a single body at the
works.
Example: 4-module-high module:
Top: 2-module-high module with flap,
Bottom: 2-module-high module with
drawer.
Please order 2-module-high module with
flap + 2-module-high module with large
drawer.
Max. height: 10 modules = 199.7 cm
60
60
60
Planning and dimensions
View from behind – alternative 1
configuration as front. Please order
2 x P 7944 (room divider back panel without
weights for modules with doors/flaps)
+ 4 x P 7714 (room divider back panel with
weights for modules with drawers)
View from front
Room divider back panel =
The configuration can be chosen as desired:
View from behind – alternative 2
Please order
4 x P 7924 (room divider back panel without
weights for modules with doors/flaps)
+ 2 x P 7724 (room divider back panel with
weights for modules with drawers)
View from behind – alternative 3
Please order
2 x P 7944 (room divider back panel without
weights for modules with doors/flaps)
+ 1 x P 7744 (room divider back panel with
weights for modules with drawers)
