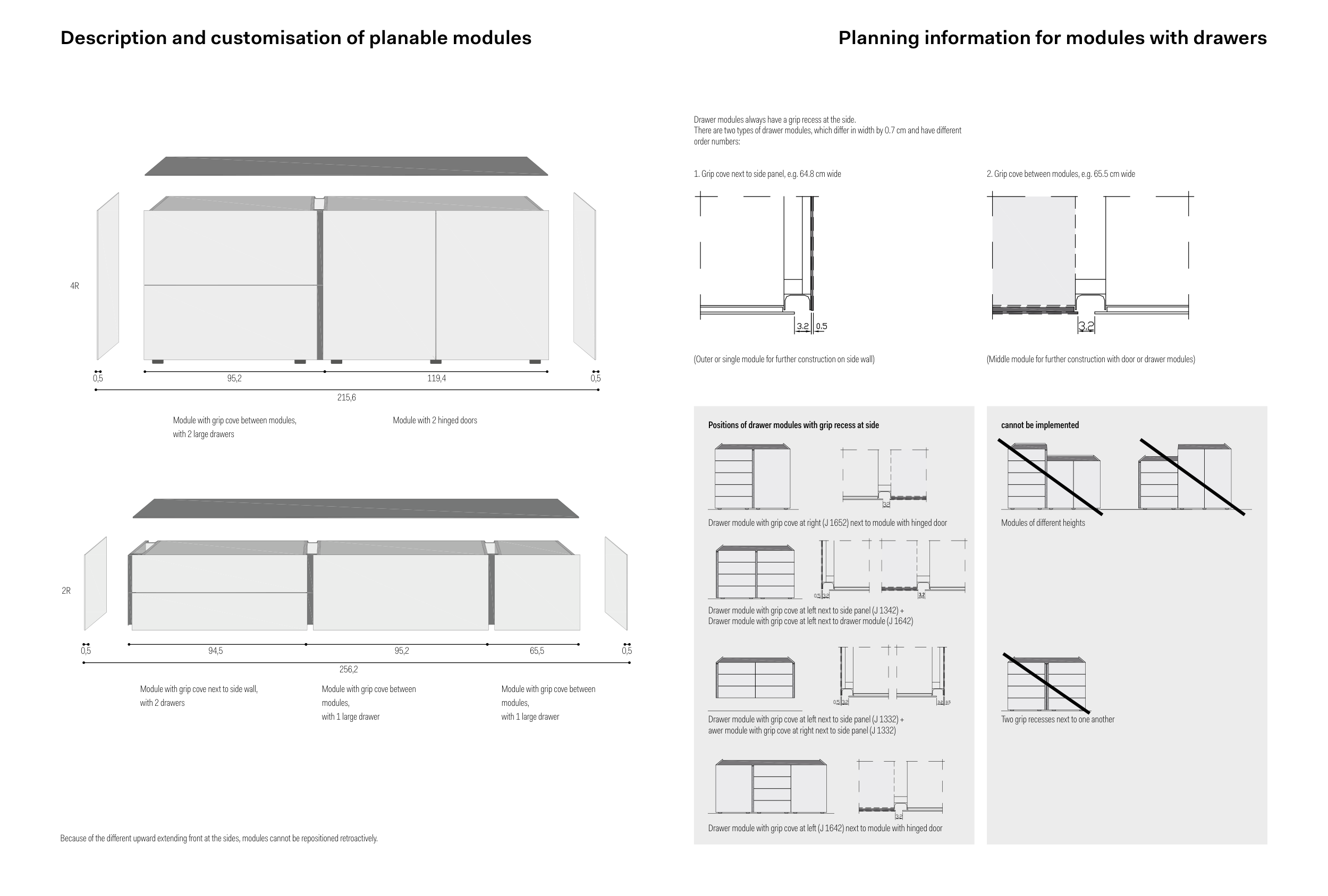

Planning information for modules with drawers
Drawer modules always have a grip recess at the side.
There are two types of drawer modules, which differ in width by 0.7 cm and have different
order numbers:
1. Grip cove next to side panel, e.g. 64.8 cm wide
Positions of drawer modules with grip recess at side
cannot be implemented
(Outer or single module for further construction on side wall)
2. Grip cove between modules, e.g. 65.5 cm wide
(Middle module for further construction with door or drawer modules)
Modules of different heights
Two grip recesses next to one another
Drawer module with grip cove at right (J 1652) next to module with hinged door
Drawer module with grip cove at left (J 1642) next to module with hinged door
Drawer module with grip cove at left next to side panel (J 1342) +
Drawer module with grip cove at left next to drawer module (J 1642)
Drawer module with grip cove at left next to side panel (J 1332) +
awer module with grip cove at right next to side panel (J 1332)
3,2
95,2
119,4
0,5
4R
94,5
95,2
65,5
0,5
0,5
0,5
215,6
2R
256,2
Description and customisation of planable modules
Module with grip cove between modules,
with 2 large drawers
Module with 2 hinged doors
Because of the different upward extending front at the sides, modules cannot be repositioned retroactively.
Module with grip cove next to side wall,
with 2 drawers
Module with grip cove between
modules,
with 1 large drawer
Module with grip cove between
modules,
with 1 large drawer
