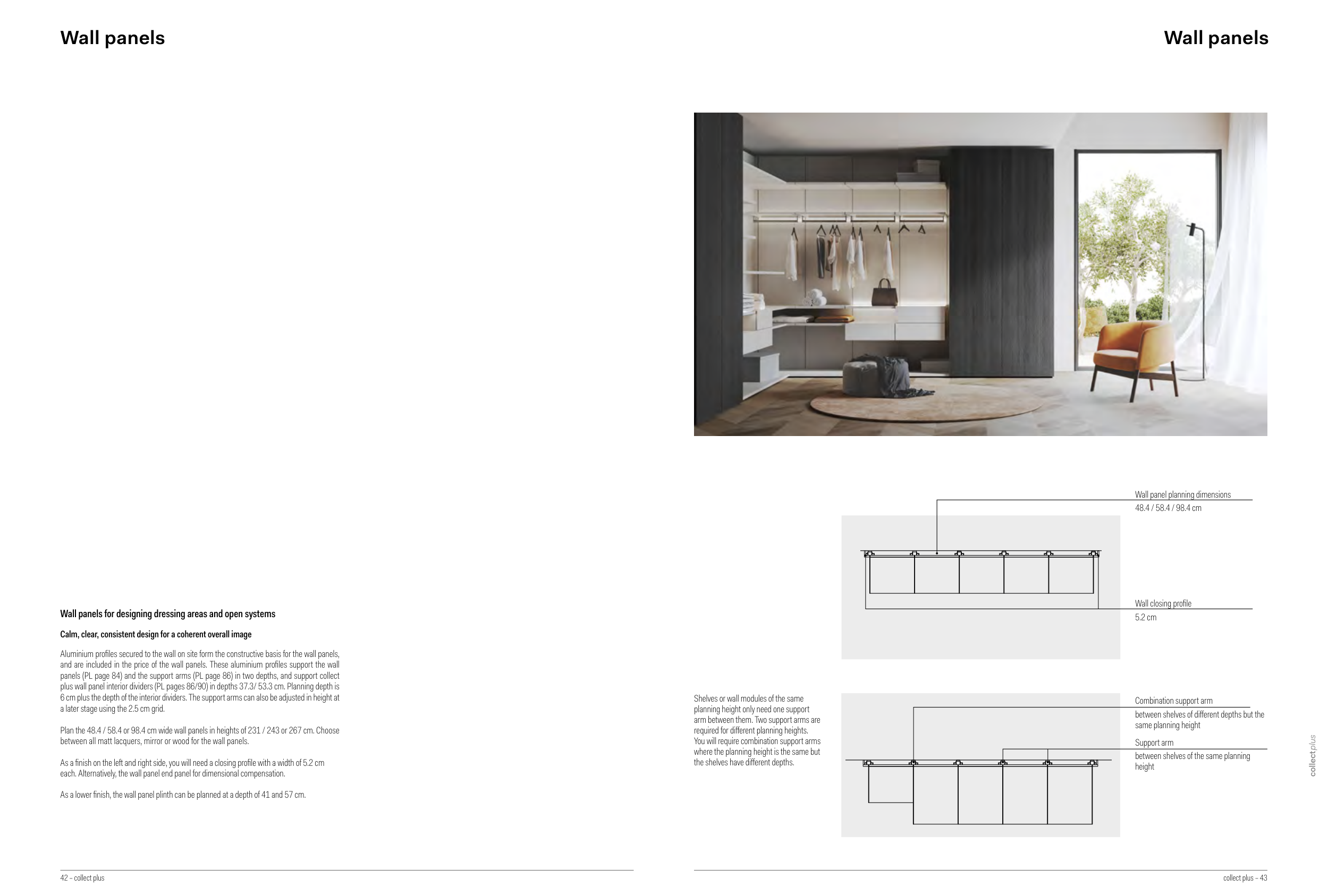

Wall panels
Wall panels
Calm, clear, consistent design for a coherent overall image
Wall panels for designing dressing areas and open systems
Aluminium profiles secured to the wall on site form the constructive basis for the wall panels,
and are included in the price of the wall panels. These aluminium profiles support the wall
panels (PL page 84) and the support arms (PL page 86) in two depths, and support collect
plus wall panel interior dividers (PL pages 86/90) in depths 37.3/ 53.3 cm. Planning depth is
6 cm plus the depth of the interior dividers. The support arms can also be adjusted in height at
a later stage using the 2.5 cm grid.
Plan the 48.4 / 58.4 or 98.4 cm wide wall panels in heights of 231 / 243 or 267 cm. Choose
between all matt lacquers, mirror or wood for the wall panels.
As a finish on the left and right side, you will need a closing profile with a width of 5.2 cm
each. Alternatively, the wall panel end panel for dimensional compensation.
As a lower finish, the wall panel plinth can be planned at a depth of 41 and 57 cm.
Wall panel planning dimensions
48.4 / 58.4 / 98.4 cm
Wall closing profile
5.2 cm
Support arm
between shelves of the same planning
height
Combination support arm
between shelves of different depths but the
same planning height
Shelves or wall modules of the same
planning height only need one support
arm between them. Two support arms are
required for different planning heights.
You will require combination support arms
where the planning height is the same but
the shelves have different depths.
