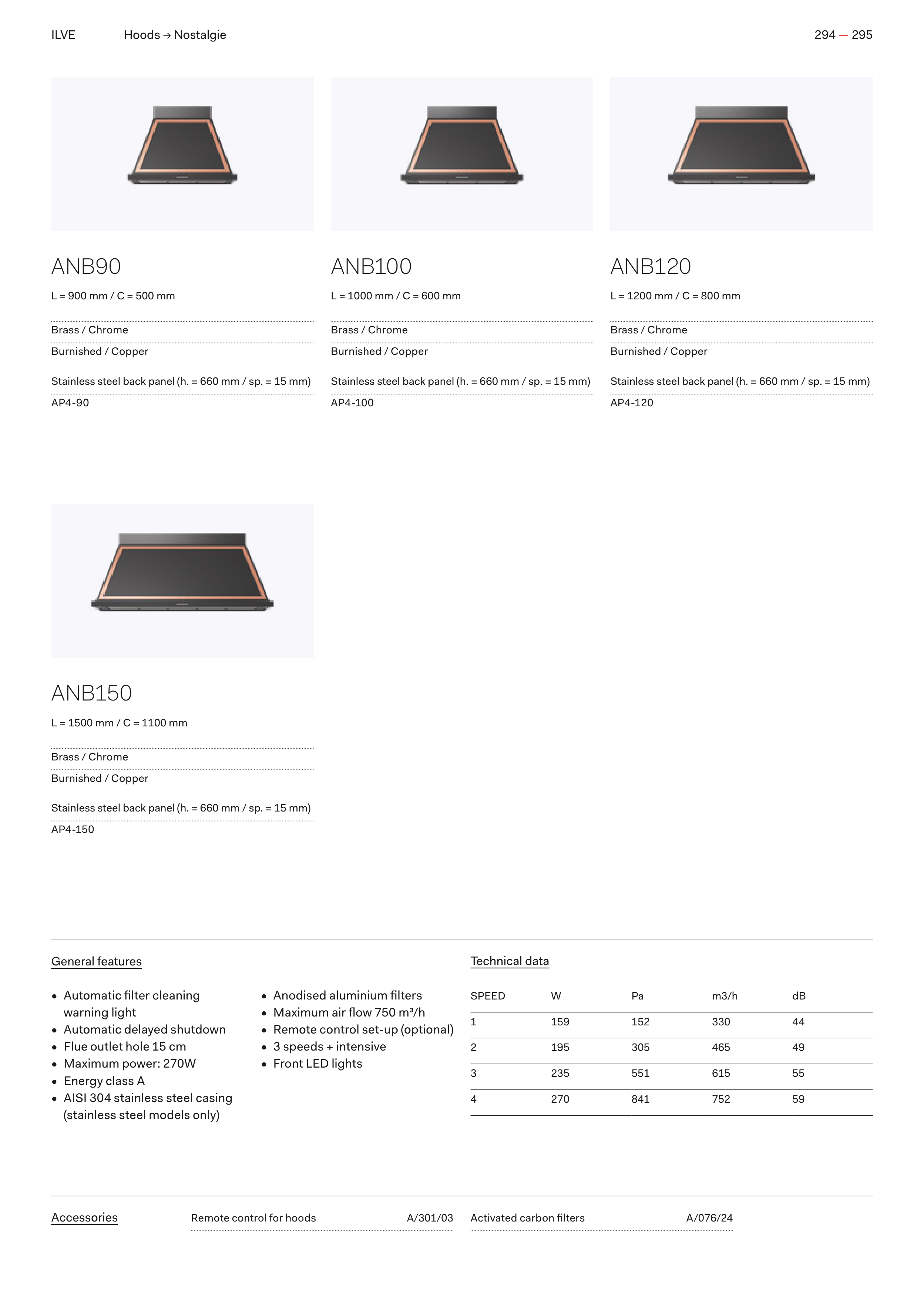

ANB90
L = 900 mm / C = 500 mm
Brass / Chrome
Burnished / Copper
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AP4-90
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AP4-100
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AP4-120
ANB100
L = 1000 mm / C = 600 mm
Brass / Chrome
Burnished / Copper
ANB120
L = 1200 mm / C = 800 mm
Brass / Chrome
Burnished / Copper
ANB150
L = 1500 mm / C = 1100 mm
Brass / Chrome
Burnished / Copper
Remote control for hoods
A/301/03
Activated carbon filters
A/076/24
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AP4-150
General features
• Automatic filter cleaning
warning light
• Automatic delayed shutdown
• Flue outlet hole 15 cm
• Maximum power: 270W
• Energy class A
• AISI 304 stainless steel casing
(stainless steel models only)
• Anodised aluminium filters
• Maximum air flow 750 m3/h
• Remote control set-up (optional)
• 3 speeds + intensive
• Front LED lights
Technical data
SPEED
W
Pa
m3/h
dB
1
159
152
330
44
2
195
305
465
49
3
235
551
615
55
4
270
841
752
59
Accessories
ILVE
294 — 295
Hoods → Nostalgie
