Remote control for hoods
A/301/03
Activated carbon filters
A/076/24
Accessories
Technical data

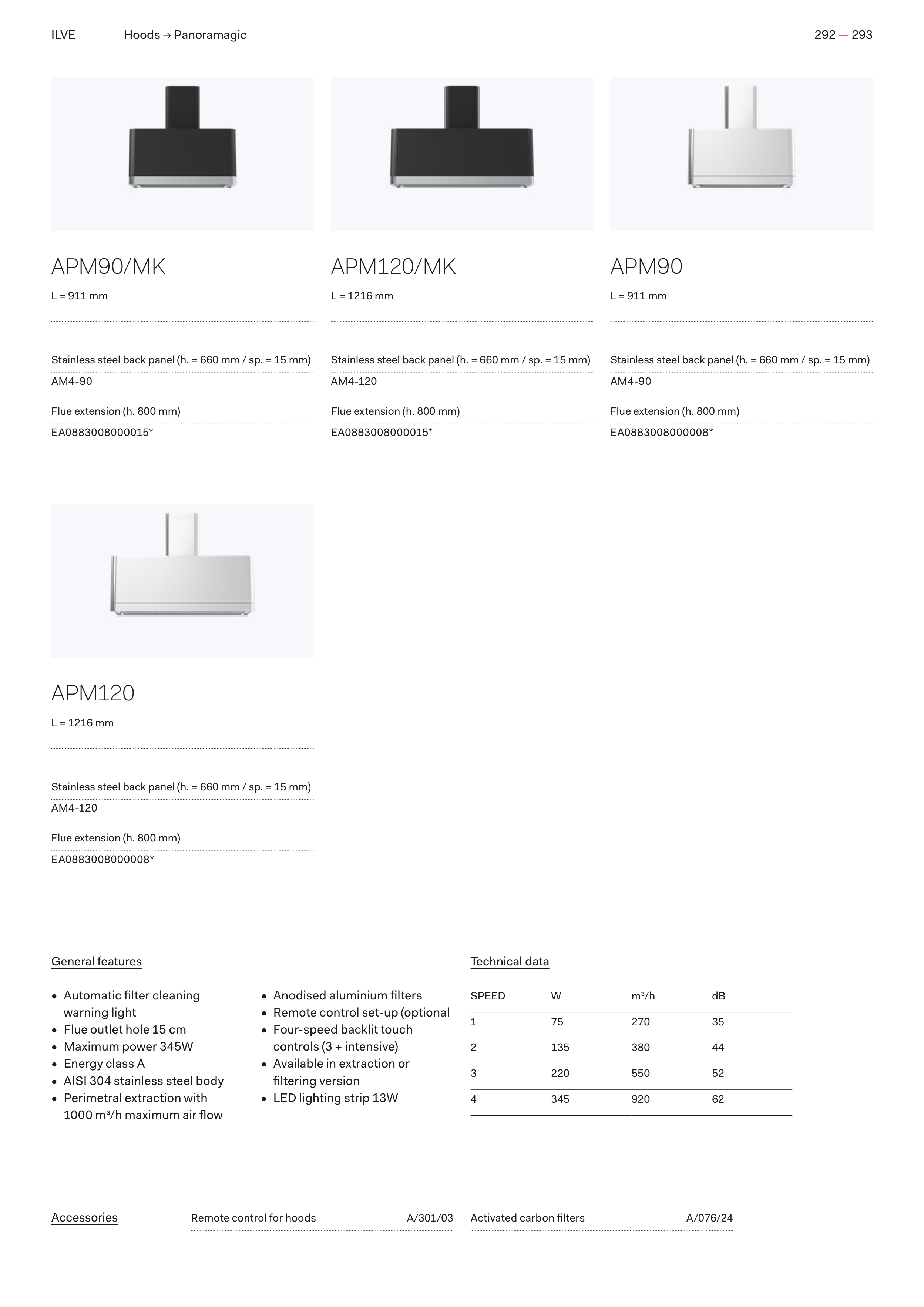

APM90/MK
L = 911 mm
APM90
L = 911 mm
APM120/MK
L = 1216 mm
APM120
L = 1216 mm
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-90
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-90
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-120
Stainless steel back panel (h. = 660 mm / sp. = 15 mm)
AM4-120
General features
• Automatic filter cleaning
warning light
• Flue outlet hole 15 cm
• Maximum power 345W
• Energy class A
• AISI 304 stainless steel body
• Perimetral extraction with
1000 m3/h maximum air flow
• Anodised aluminium filters
• Remote control set-up (optional
• Four-speed backlit touch
controls (3 + intensive)
• Available in extraction or
filtering version
• LED lighting strip 13W
SPEED
W
m3/h
dB
1
75
270
35
2
135
380
44
3
220
550
52
4
345
920
62
Flue extension (h. 800 mm)
EA0883008000015*
Flue extension (h. 800 mm)
EA0883008000008*
Flue extension (h. 800 mm)
EA0883008000015*
Flue extension (h. 800 mm)
EA0883008000008*
ILVE
292 — 293
Hoods → Panoramagic
