Hob colour range
Glossy
black – BK
Dimensions
860
165
520
5

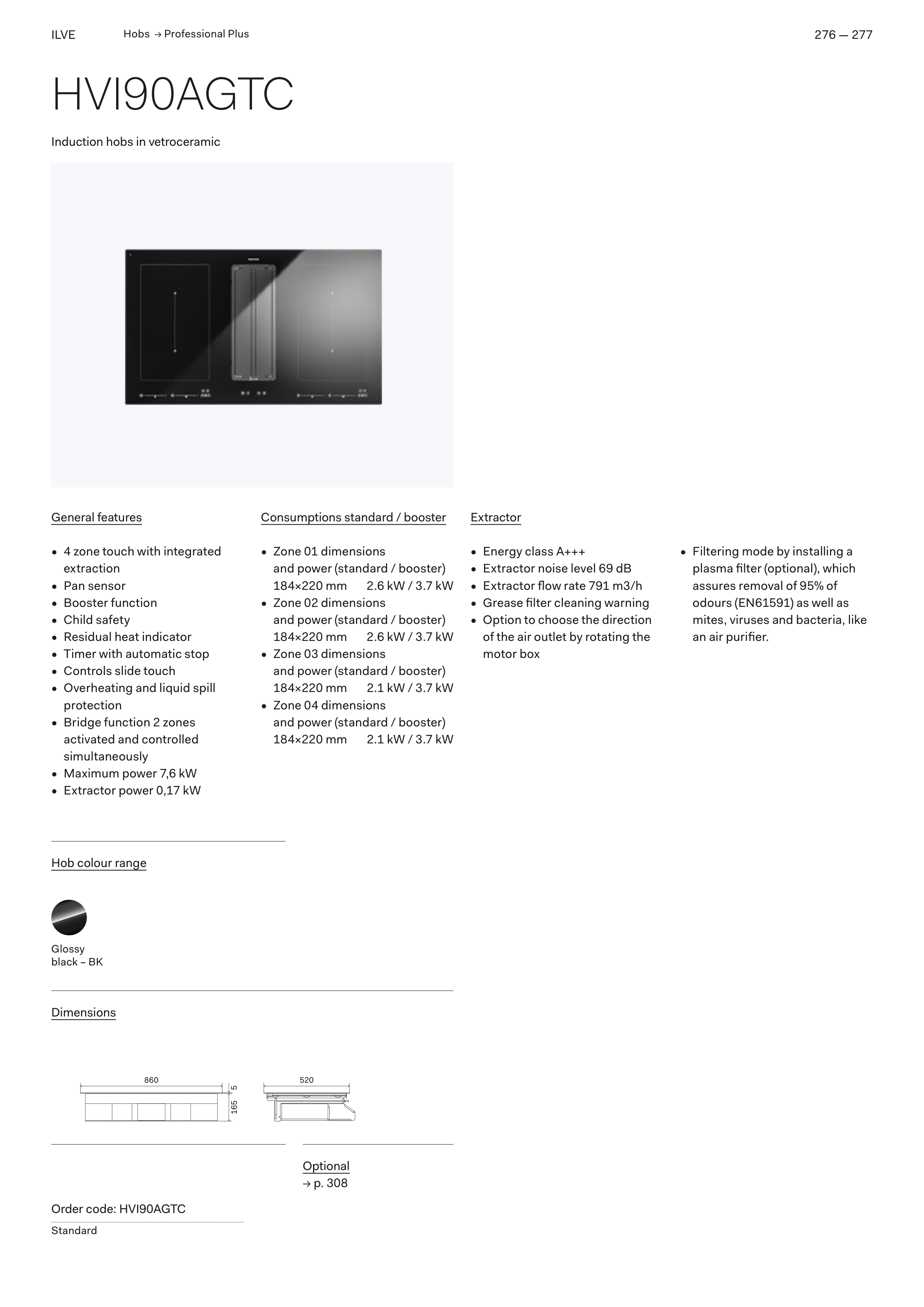

Order code: HVI90AGTC
Standard
HVI90AGTC
Induction hobs in vetroceramic
General features
• 4 zone touch with integrated
extraction
• Pan sensor
• Booster function
• Child safety
• Residual heat indicator
• Timer with automatic stop
• Controls slide touch
• Overheating and liquid spill
protection
• Bridge function 2 zones
activated and controlled
simultaneously
• Maximum power 7,6 kW
• Extractor power 0,17 kW
Consumptions standard / booster
• Zone 01 dimensions
and power (standard / booster)
184×220 mm
2.6 kW / 3.7 kW
• Zone 02 dimensions
and power (standard / booster)
184×220 mm
2.6 kW / 3.7 kW
• Zone 03 dimensions
and power (standard / booster)
184×220 mm
2.1 kW / 3.7 kW
• Zone 04 dimensions
and power (standard / booster)
184×220 mm
2.1 kW / 3.7 kW
Extractor
• Energy class A+++
• Extractor noise level 69 dB
• Extractor flow rate 791 m3/h
• Grease filter cleaning warning
• Option to choose the direction
of the air outlet by rotating the
motor box
• Filtering mode by installing a
plasma filter (optional), which
assures removal of 95% of
odours (EN61591) as well as
mites, viruses and bacteria, like
an air purifier.
Optional
→ p. 308
ILVE
Hobs → Professional Plus
276 — 277
